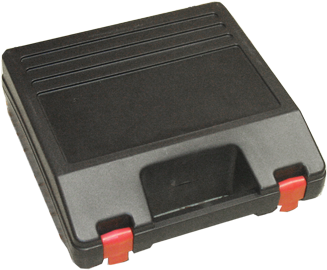

PPM-212 box
PPM-212 adapter
PPM-212 adapter
PPM-212 adapter
PPM-212 adapter
PPM-212 adapter

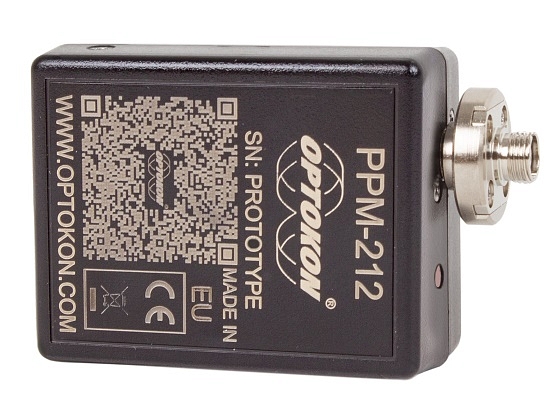

PPM-212 Pocket optical power meter USB probe

The PPM-212 optical power meter – USB probe is a small, compact tester without display and battery. The tester is designed to be used as USB probe, part of testing workstation. The small size does not prevent the optical meter fulfilling all technical requirements.

The tester is equipped with USB interface. It ensures power supply, data reading and transferring into data processing SW.

Standard optical interface is equipped with FC/PC adapter, which ensures proper connection of testing cable. It might be easily changed by universal 2.5/1.25 µm ferrule or any commonly used type.

The multicolor LED is signalizing power supply, absolute (dBm) or relative (dB) measuring mode.

  • Features
  • Specifications
  • Application
  • Documents
  • USB probe – accessory of Testing Workplace
  • Small size, light weight
  • SM and MM fiber testing
  • 21 working wavelengths: CWDM + 850,1300 and 1625nm
  • Absolute and Relative optical power measurement
  • USB port for:
    USB probe - full control via simple commands
    power supply
  • LED indicator

Specifications:







PPM-212

PPM-212-SI

Note:

Photodetector

1 mm InGaAs

3.6 mm Si



Working wavelengths

CWDM + 850,1300,1625 nm

650-940 nm

can be customized

Dynamic range

-60 dBm to +10 dBm

-53 dBm to +15 dBm

-40 to +10 dBm



CWDM, 1300nm, 1625 nm

850 nm

Uncertainty

± 5%

1310, 1550 nm @ -20dBm

Resolution

0.01



Dimensions

24 x 47 x 71 mm

including 2.5 mm universal adaptor

Weight

Less than 90 g



Temperature    operating

                     storage

Humidity (non cond.)

-10 to +50 °C

-40 to +70 °C

0 – 95%



Compliant with RoHS-requirements (2002/95/EG, 27.01.2003)

  • Designed to be used as an USB probe, part of a testing workstation
