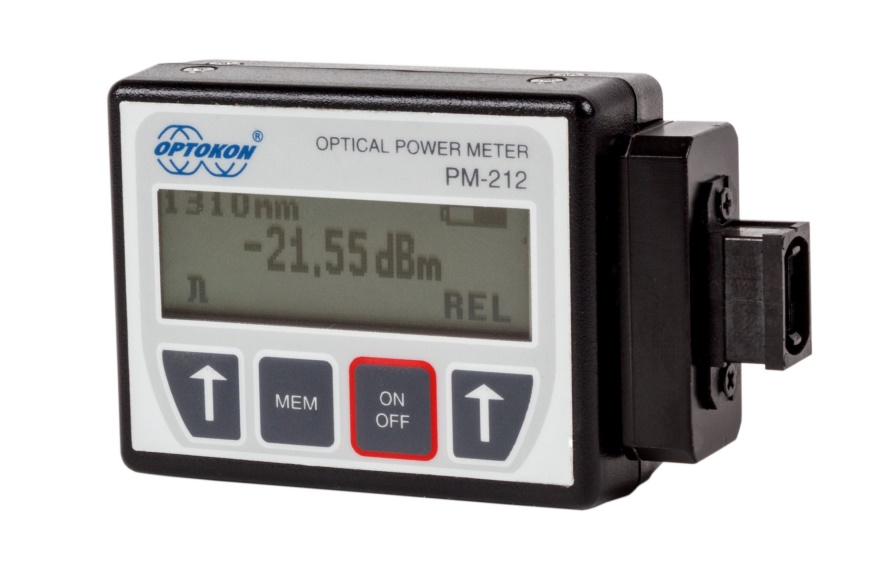

The PM-212-MTP-GE optical power meter is designed to measure absolute or relative optical power in optical networks terminated with multifiber MTP/MPO connectors. Because of use the large scale Ge photodiode the tester can measure overall optical power level from all fibers of MTP/MPO connectors in wide wavelength range.

There are two versions for simultaneous measurement:

12/24 multifiber MPO/MTP connectors

16/32 multifiber MPO/MTP connectors

The memory capacity allows storage and uploading of up to 100 measurements including memory position or fiber number, wavelength, absolute value or relative value and insertion loss. The SmartProtocol PC evaluation software supports memory download, test report generation and Data Exporter for data download to Excel sheet.

The rechargeable battery ensures long term working with a minimum service life of 2 years. Batteries can be charged via a USB port or external AC/DC adaptor. The controlled charging process ensures optimal battery status and extended operation time.
