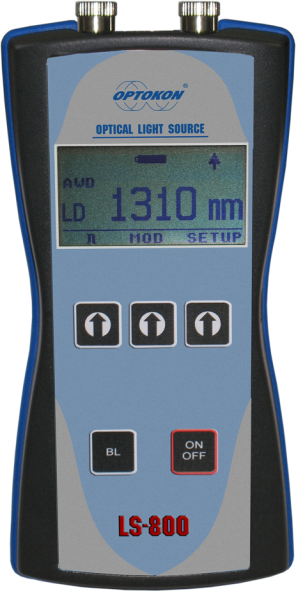

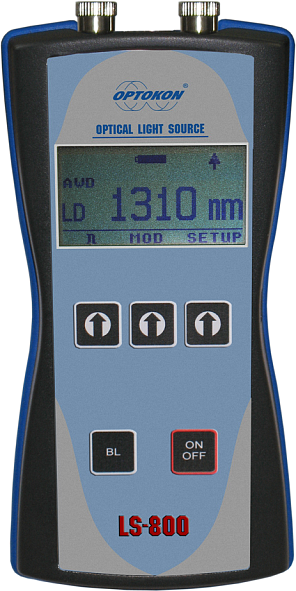

LS-800N Optical Light Source

LS-800N Optical Light Source

The LS-800N is OPTOKON test equipment designed for thorough fiber line diagnostics. The light source is available in various wavelengths. The model with one or two outputs with two light sources on each port provides a maximum of 4 wavelengths in one device. The Light source is equipped FC output adaptor as standard. The changeable adaptor design allows the simple exchange of optical connectors according to actual needs.
Automatic wavelength detection
The automatic wavelength detection (AWD) mode enables to use the OPTOKON Light Source and Power Meter without manually switching the measured wavelength and prevents faulty measurement.
Cycle mode
The cycle mode allows the device to automatically toggle between available wavelengths.

Features
Specifications
Application
Documents

Standalone light source
Up to 4 channel light source
Modulation CW, 270 Hz, 1 kHz, 2 kHz
Auto Wavelength Detection mode, Cycle mode
Removeable output adaptors – easy maintenance
Auto Off feature

Technical specifications:

General specifications	Value	Unit	Note
Dimensions	165 x 80 x 40	mm	with TE-ALS-FC adapter
Weight	250	g	with battery
Operation temperature	-10 to + 50	°C
Storage temperature	-40 to + 70	°C
Humidity (non-condensing)	0 to 95	%

Light source specifications:

Code marking	Wavelength [1] [nm]	Output power [2] [dBm]	Stability³ [dB]	Note
60	650	0	N/A	Visible light
85	850	0	± 0.03 dB	Multimode fibers testing
30	1300	0	± 0.05 dB	Multimode fibers testing
31	1310	0	± 0.05 dB	Single mode fibers testing
49	1490	0	± 0.05 dB
55	1550	0	± 0.05 dB
62	1625	0	± 0.05 dB

[1] Additional wavelengths are available on request

[2] Output power for dual wavelength port is 3 dB lower

³ Tested after 20 min warm up, temperature 23 ± 1 °C

Link Loss Characterization
Fiber Detection
Continuous fiber testing
Visual fault locator
