OFT-850 SMPTE Hybrid Cable Test Set
OFT-850 SMPTE Hybrid Cable Test Set

OFT-850 SMPTE Hybrid Cable Test Set

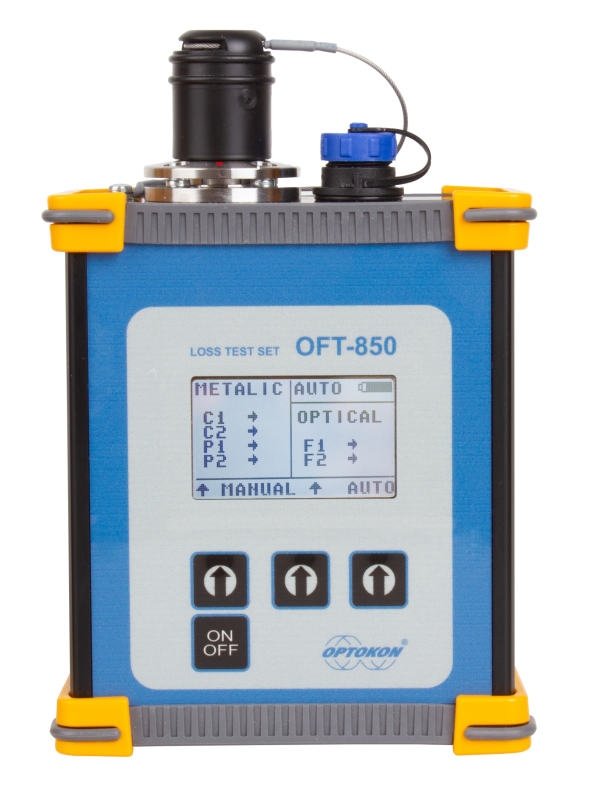

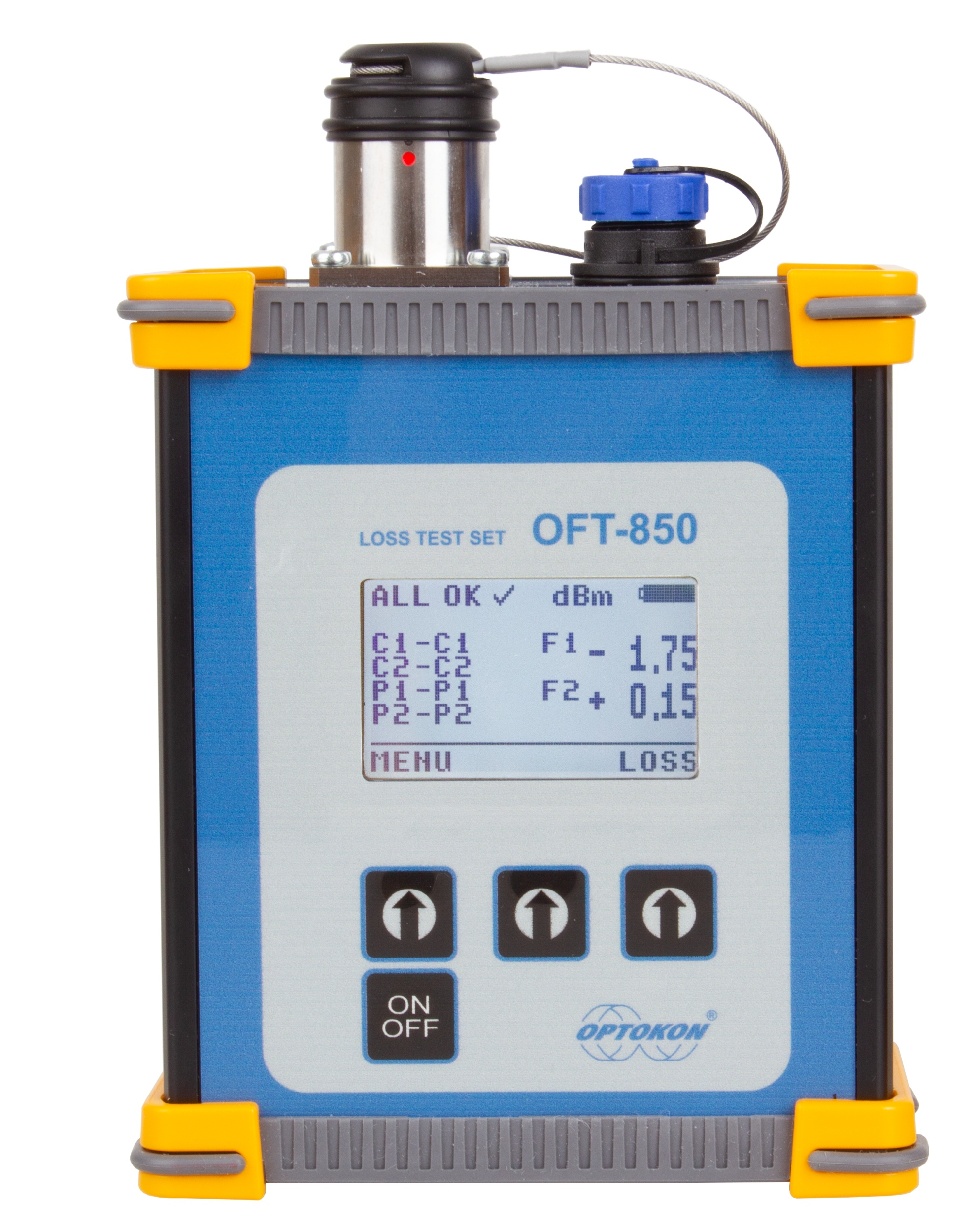

The OFT-850 set consists of SMPTE SOURCE and SMPTE TESTER unit. The hybrid cable tester is designed for testing of loss in optical fibers and checking of continuity of copper pairs in hybrid cables. It combines optical light source on one side, optical power meter on other side and copper wires checker.

It is ideal for testing large spaces of LEMO SMPTE Hybrid System for Broadcast Infrastrucutre Networks.

The ruggedized aluminium case makes the unit ideal for field operation. The memory capacity allows storage and uploading of more than 1000 measurements including cable number, result of metalic wires check and optical power value or insertion loss. The tester supports memory download and test report generating. The Lithium rechargeable battery ensures long term working with minimal operation costs.

  • Features
  • Specifications
  • Application
  • Documents
  • Hybrid cables – fiber optic testing and copper pairs checking
  • Ruggedized aluminium case
  • MM or SM applications
  • Simultaneous testing of 2 fibers
  • Manual operation alows individual fiber or wire check
  • Auto operation mode with optical loss pass/fail indication and „ALL OK, SHORT, PINOUT message for metalic wires check
  • Able to detect incorrect fiber and wire connection, disconnection and short circuit connection
  • Internal memory
  • Displayed units: dBm, dB
  • High dynamic range
  • Built-in charger, battery status indicator
  • Easy to use with menu navigation

Optical Light Source:



Output power

Note:

850 nm, 1300 nm

-26 dBm (62.5/125 µm fiber)



1310, 1490, 1550, 1625 nm

-16 dBm

typ. value

Stability (1 hour, delta/2):



850 nm, 1300 nm

± 0.03 dB

tested after 20 min warm up

1310, 1490, 1550, 1625 nm

± 0.05 dB

temperature 23 ± 1°

Optical Power Meter:

Photodetector

1 mm InGaAs



Working wavelengths

MM:   850, 1300 nm

SM:   1310, 1490, 1550, 1625 nm

can be customized

Uncerntainty

± 12%

1310, 1550 nm @ -20 dBm

Resolution

0.01



Dynamic range

-60 dBm to +10 dBm

-53 dBm to +17 dBm

1300, 1310, 1490, 1550, 1625 nm

850 nm

Electrical wires checking:

Electrical wires continuity

Short circuit

Isolation

Electrical contacts –pins interconnection

General specifications:

Dimensions

145 x 145 x 56 mm

without connectors

Weight

400 g

with battery

Temperature operating

-10 to +50 °C



Temperature storage

-40 to +70 °C



Humidity (non condensing)

0 to 95%



IP rating

IP 54



Battery working time

> 20 hrs

between battery charging



  • Broadcast Infrastructure networks measurements
  • SMPTE compatible HDTV system
