MOT-800 CWDM Optical Analyzer

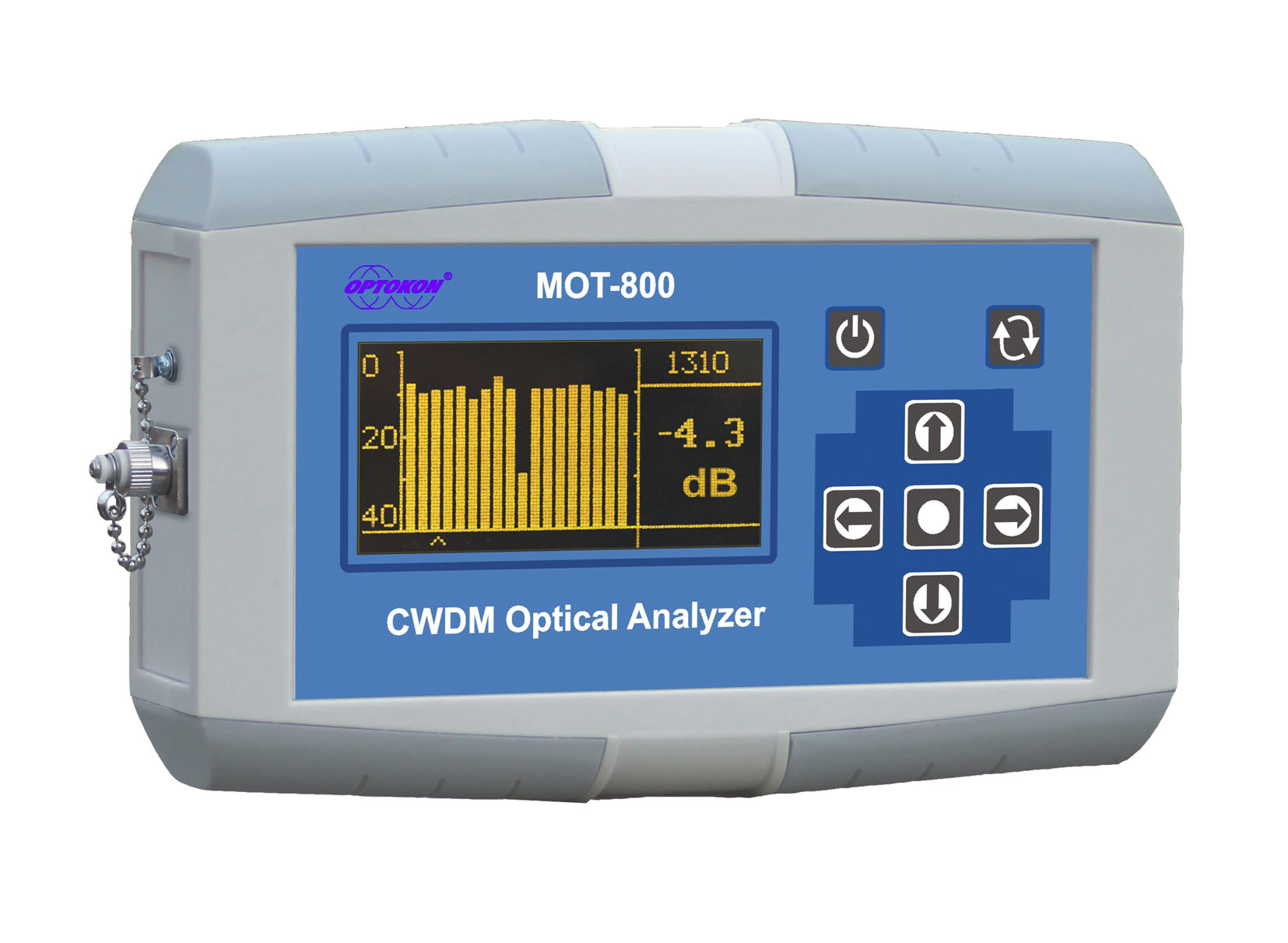

The optical analyzer MOT-800 refers to selective power meters, it is designed to measure and control power level of optical signal during installation and operation of CWDM networks. The MOT-800 can measure all 18 CWDM channels, which meet the requirements of ITU-T G.694.2. The measurement results can be displayed as graphically and in tabular form and transferred to a computer for report preparation.

High-impact dust and waterproof the unit is designed for reliable operation under field conditions. Easy to use, low cost, reliability and small size distinguish it from other devices for testing CWDM networks.

Features
Specifications
Application
Documents

Portable design
User friendly operation
Quick analysis of CWDM channels
Tabular and graphical display of the results of measurement of power for 18 channels
Control from PC
Storage of a large number of readings in non-volatile memory device
Software port for data download via USB
OLED-display does not require a backlight
The battery working time - up to 40 hours.

Simultaneous measurement of all 18 CWDM wavelengths in real time mode
Storing readings in nonvolatile memory device (up to 1000 values)
Software for generating reports of measurements
Selective power meter
Dynamical range, dBm	-40 to +10
Measurement error, dB	0.5
Working wavelengths, nm	1270, 1290, 1310, 1330,1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610
Loss of signal in adjacent channel, dB	25
Dimensions (WxHxD), mm	95 x 160 x 35
Weight, kg	0.45
Operating temperature, °C	-10 to +40
Humidity	95%
Power supply	AC/DC adapter, Li-ion battery backup
Battery working time, hrs	40

Optical power measurement at output from CWDM multiplexer, 3 channels active, absolute value:

1310 nm -9.86 dBm

1490 nm -4.13 dBm

1550 nm -8.76 dBm

Any other channels are not active.
