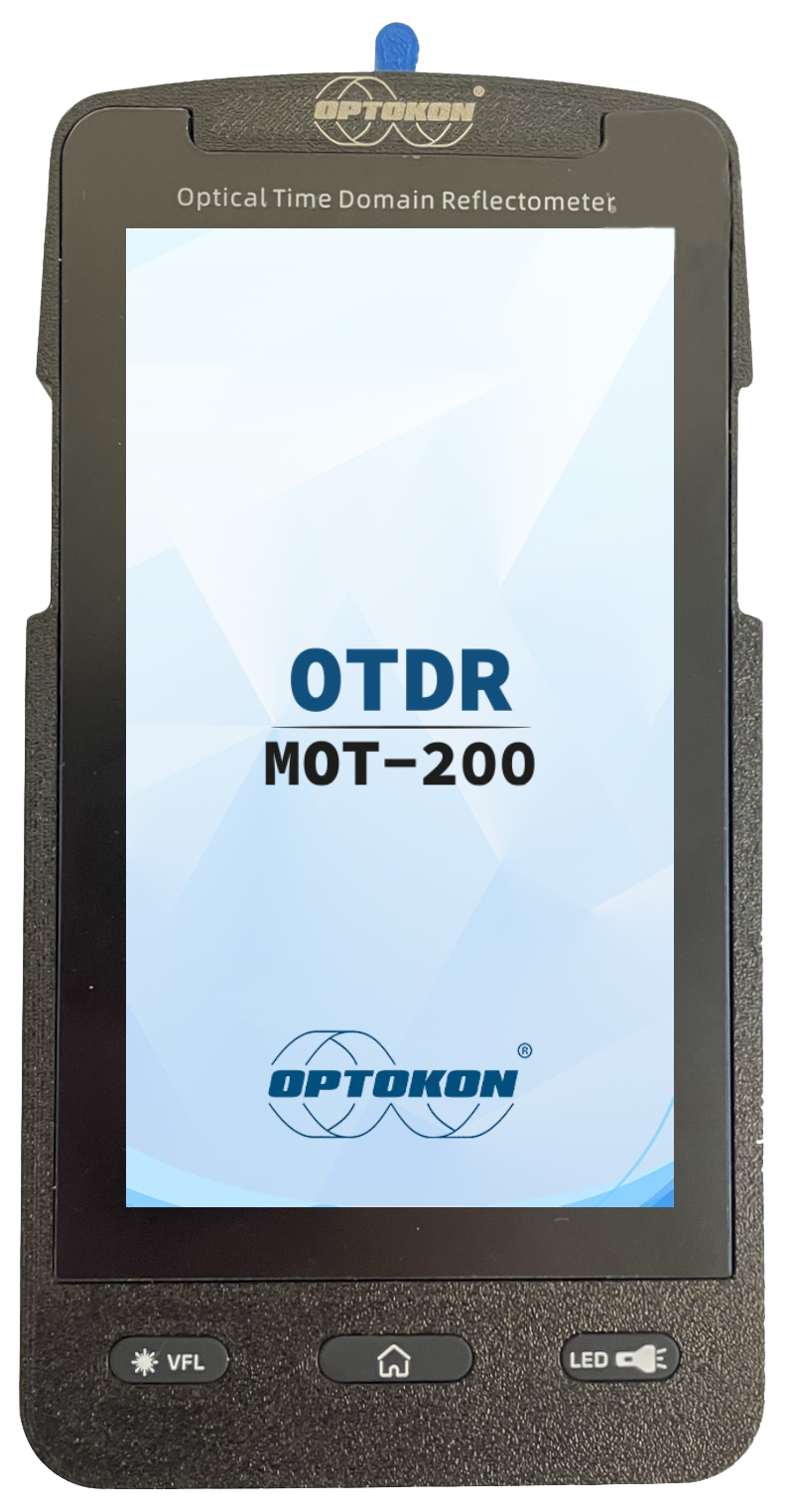

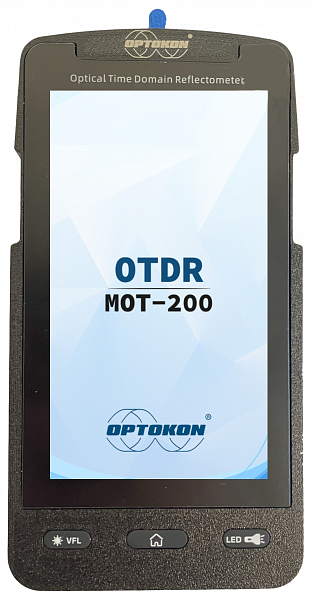

MOT-200 Mini OTDR series

The MOT-200 series Optical Time Domain Reflectometer (OTDR) is a next-generation intelligent meter designed for detecting fiber communication systems. As optical networks expand in urban and rural areas, measurements become shorter and more dispersed; the MOT-200 is specifically tailored for these applications. It is cost-effective and delivers exceptional performance.

Manufactured with meticulous care, the MOT-200 adheres to national standards, integrating extensive experience with modern technology. It undergoes rigorous mechanical, electronic, and optical testing and quality assurance. The new design makes the MOT-200 smarter, more compact, and versatile.

Whether you need to detect the link layer during the construction and installation of optical networks or perform efficient maintenance and troubleshooting, the MOT-200 is your ideal assistant.

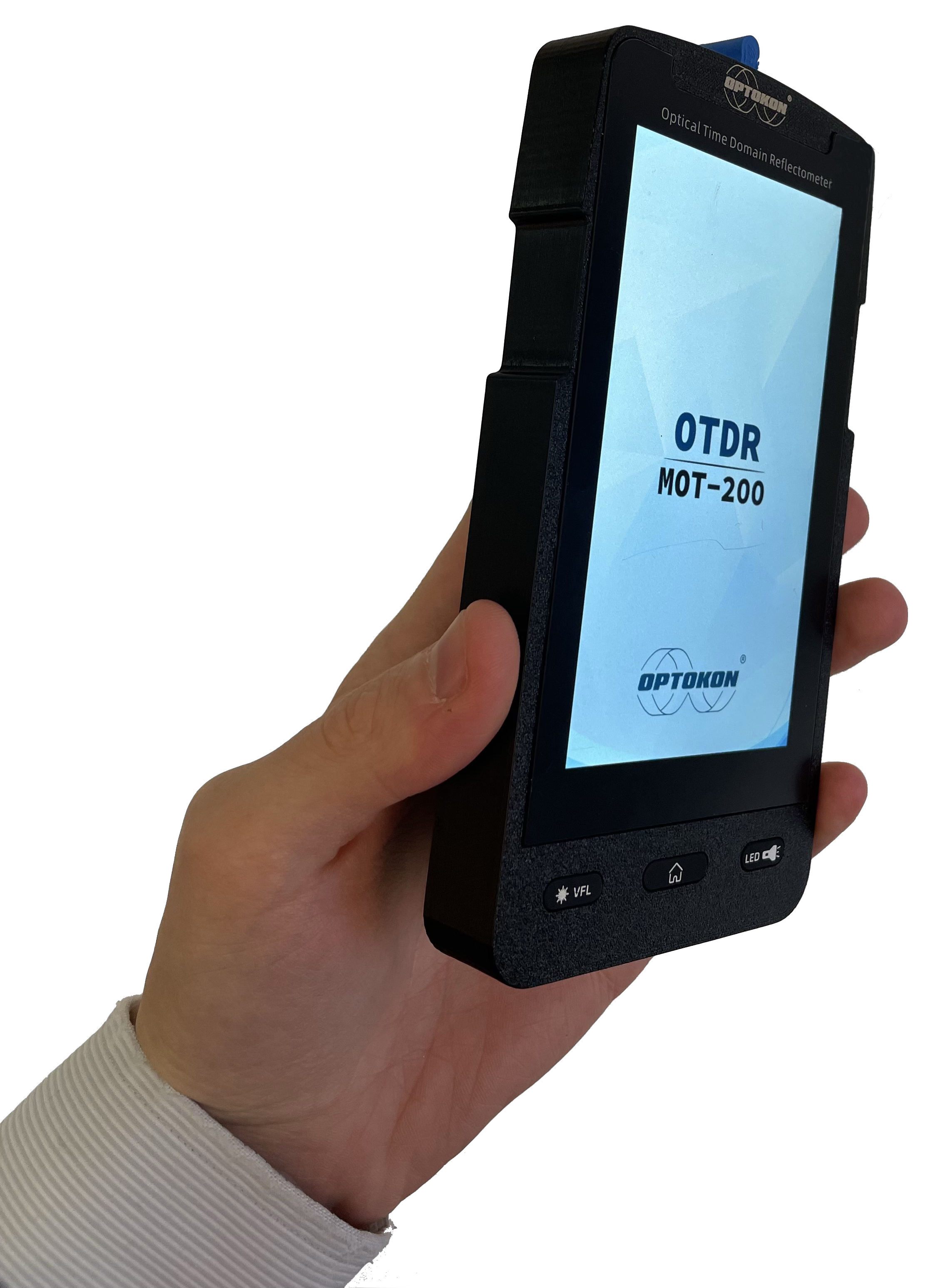

  • Ultra-thin design, smart and rugged
  • 4.95-inch multi-touch screen
  • Build-in operation system
  • One-button automatic test
  • Event map function
  • Built-in OLS/OPM/VFL modules
  • RJ-45 cable tester and Tracker module
  • Over 1000 groups of testing results storage
  • PC software for generating test report
  • USB-C port for data transmission
  • Built-in rechargeable Lithium battery

Pulse Width

5 ns, 10 ns, 25 ns, 50 ns, 100 ns, 250 ns, 1 μs, 2.5 μs, 5 μs, 10 μs, 20 μs

Test range

100 m, 200 m, 2 km, 10 km, 20 km, 40 km, 80 km, 120 km, 160 km, 240 km

Distance Accuracy

± (1 m + testing distance x 5x10-5 + sampling resolution)

Min. sampling resolution

256 000

Distance resolution

0.01 m

Attn. accuracy

±0.05 dB/dB

Reflectance accuracy

±4 dB

Event dead zone (EDZ)3

3 m

Attn. dead tone (ADZ) 3

8 m

Memory

> 1000 groups; + External U-disk can be used

Dimensions (L x W x H)

160 × 80 × 18 mm



Display

4.95 inch multi-touch color LCD screen



Interface

USB - Type C



Power Supply

Lithium battery, USB Type C



Language

English



Environmental Conditions

Operating temperature and humidity:      -10℃ to +50℃

Storage temperature and humidity:         -20℃ to +70℃



Note: 3) Event Dead Zone and Attenuation Dead Zone are measured with minimum pulse width.

•    FTTX test with PON networks
•    CATV network testing
•    Access network testing
•    LAN network testing
•    Metro network testing
•    Lab and Factory testing
•    Live fiber troubleshooting
