The OPTOKON HMA-J-LB Loopback based on HMA-J style plug connector is designed for testing of optical network operating on tactical cables terminated with ruggedized Expanded Beam connectors.

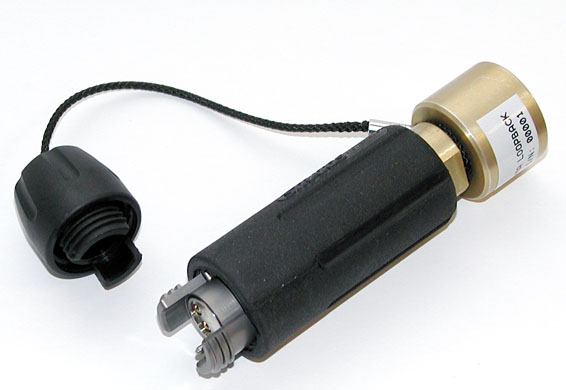

HMA-J-LB Loopback plug connector
Features:
- Advanced expanded beam technology
- MIL-DTL-83526 specification
- Hermaphroditic interconnection
- 2 or 4 fiber channels option
- Singlemode or Multimode
- Fullyy sealed rugged compact design
| Optical Loss | MM 50/125 μm≤ 3.0 dBMM 62.5/125 μm≤ 3.0 dBSM 9/125 μm≤ 4.0 dB |
| Return Loss | SM 9/125 μm > 25 dB |
| Durability | 3000 matings minimum |
| Operating temperature | -55 to +85 °C |
| Storage temperature | -55 to +85 °C |
| Water immersion | 2 m depth duration 24 Hours |
| Vibration Sinusoidal | 10-500 Hz, 3 directions, 0.75 mm amplitude @ 10 G acceleration |
| Free fall resistance | 500 falls from 1.2 m height |
| Bump resistance | 4000 bumps @ 40 G acceleration |
- Broadcast
- Military communications
- Industrial
- Petrochemical
