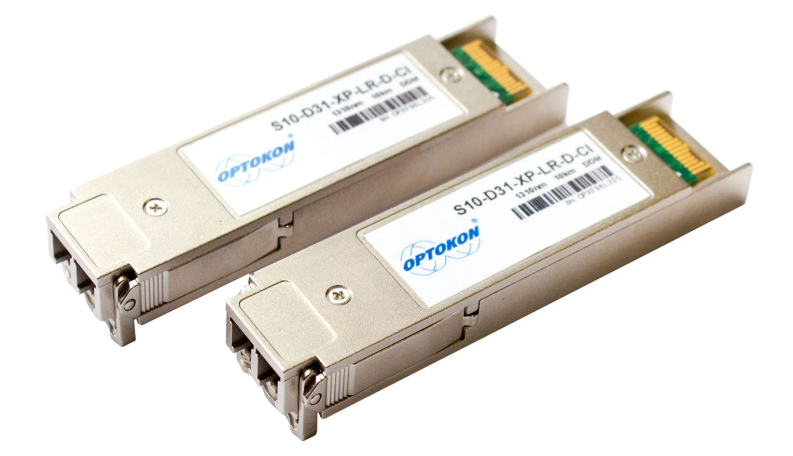

The OPTOKON Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and leads free per Directive 2002/95/EC
XFP Transceivers – 10 Gbps
- Unit
- SR
- LR
- ER
- ER60
- ZR
- ZR+
- Average output power (min / max)
- dBm
- -6 / -1
- -6 / -1
- -1 / 4
- 0 / 5
- 0 / 5
- 1 / 5
- Receiver sensitivity
- dBm
- -10
- -15
- -16,5
- -20
- -24
- -25
- Overload
- dBm
- 0,5
- 0,5
- 0,5
- -6
- -6
- -6
- Maximum distance
- km
- 0,300
- 10
- 40
- 60
- 80
- 100
- Fiber type
- -
- MMF
- SMF
- SMF
- SMF
- SMF
- SMF
- Optical link budget
- dBm
- 4
- 9
- 15,5
- 20
- 24
- 26
- Wavelength / laser type
- nm
- 850 / VCSEL
- 1310/DFB
- 1550 / DFB
- 1270/1310 (Bidi)
- 1310/1270 (Bidi)DFB
- 1550 / EML
- 1550 / EML
- Table 1: Basic technical specifications according to distance.
- Temperature:
- Code
- Temperature
- D
- 0 °C to + 70 °C
- E
- -10°C to + 80 °C
- I
- -40°C to + 85 °C
- Table 2: Temperature specifications.
- OPTOKON is always trying to satisfy as much market demand as possible and with this in mind, almost all OPTOKON XFP transceivers are manufactured in the Commercial, Extended and Industrial temperature ranges to provide you all possibilities you need for your application.
- Safety and regulatory compliance
- Electrostatic discharge (ESD)
- IEC/EN 61000-4-2
- Electromagnetic Interference (EMI)
- FCC Part 15 Class B EN 55022
- Class B (CISPR 22A)
- Laser Eye Safety
- Class 1 laser product
- Component Recognition
- IEC/EN 60950, UL
- ROHS
- 2002/95/EC
- EMC
- EN 61000-3
- Digital diagnostics:

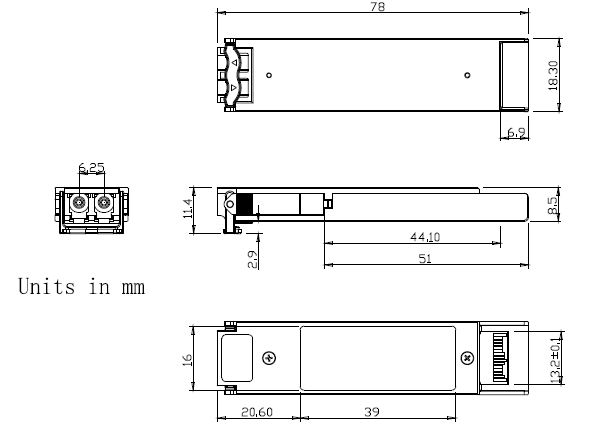

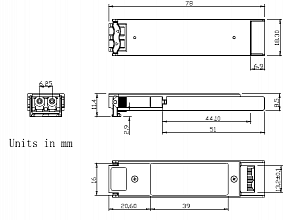

- Figure 1: Transceiver dimensions schema.Figure 1: Transceiver dimensions schema.All OPTOKON XFP transceivers are assembled with digital diagnostic feature as a standard.
- Figure 1: Transceiver dimensions schema.
- Figure 1: Transceiver dimensions schema.
