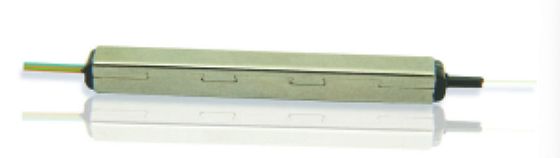

SFT-P-01x04-BFF-NC-NC 1x4 Planar Optical Splitter

SFT-P-01x04-BFF-NC-NC 1x4 Planar Optical Splitter

The 1xN Planar Lightwave Circuits (PLC) Optical Splitters are high performance, reliable and compact devices for splitting optical power, specifically designed to meet the tough requirements of FTTH, PON and CATV networks. Based on unique waveguide technology of Ion-Exchange in glass, such splitters exhibit very low insertion loss and PDL, great channel uniformity and a wide wavelength operative range.

The 1xN PLC Optical Splitters are available in 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 1x128 and custom configurations, and comply with Telcordia GR-1209, GR-1221 and IEC 67153-031-3/-6 requirements. Various packaging types, input and output fibers are available according to the customer demand.

  • Features
  • Specifications
  • Application
  • Documents
  • PON type – fiber 0.9 mm available



1 x 4

Fiber type

G.652D / G.657A

Maximum Insertion Loss (dB)

7.0

Typical Insertion Loss1 (dB)

6.6

Uniformity (dB)

< 0.5

Operating Wavelength (nm)

1250-1650

Maximum PDL2 (dB)

< 0.15

Return Loss (dB)

> 55

Directivity (dB)

> 55

Operating Temperature3 (°C)

-40 to +85

Storage Temperature3 (°C)

-40 to +85

Relative humidity

up to 95%

Dimensions

40x4x4

Fiber Type5:

BFF type

In: Tight Buffer 900 μm, 1±0.1 m length

Out: Bare Ribbon, 1±0.1 m length (colored6)

Note:

  1. Without connectors
  2. Splitters with PDL < 0.1 dB are available upon request
  3. Conditioned by the cable type
  4. Without strain relief
  5. Another fiber length – on request

Another IN/OUT fiber type (IN: bare fiber 250 µm, OUT: Tight/Loose tube 900 µm) – on request
  1. BFF colored

IN: white / OUT:

1 ribbon with colors:

1-BL

 2-OG

3-GR

4-RD





BFF

PON

  • FTTH, FTTC, FTTB
  • Passive Optical Networks (PON)
  • OADM and ROADM
  • CWDM and DWDM systems
