S12SDI-D31-SP-LR-D 12 Gbps video SFP+ transceiver

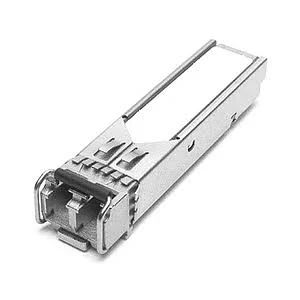

The 12G video SDI SFP+ optical cable module adds an LC fiber optic connection. The 12G data rates of the module allow you to use SD, HD and 4K resolutions. In addition, fiber optic communication allows 10 km distance transmission without loss of quality in the signal.

The 12G video SFP+ transceiver is designed to transmit/receive data rates from 50Mbps to 11.88Gbps，compliant with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST424(3G SDI), ST 292-1(HD-SDI), and ST 259 (SD-SDI). Video transceiver supports SDI pathological patterns signals. The 12G video SDI transceiver includes threse sections: DFB laser, PIN photodiode integrated with the trans-impedance preamplifier (TIA), Reclocker and a MCU controller.The transceiver is compatible with SFP Multi-Source Agreement (MSA).

  • Features
  • Specifications
  • Application
  • Documents
  • Operating data rate up to 11.88 Gbps
  • Metal enclosure for Lower EMI
  • Hot-pluggable SFP+ footprint
  • 1310nm DFB laser transmitter
  • Support pathological patterns for SD-SDI, HD-SDI
  • 3G-SDI, 6G-SDI and 12G SDI
  • The module's receiver contains reclocker
  • Duplex LC connector interface
  • Case operating temperature range: 0°C to 70°C
  • Single 3.3 V power supply

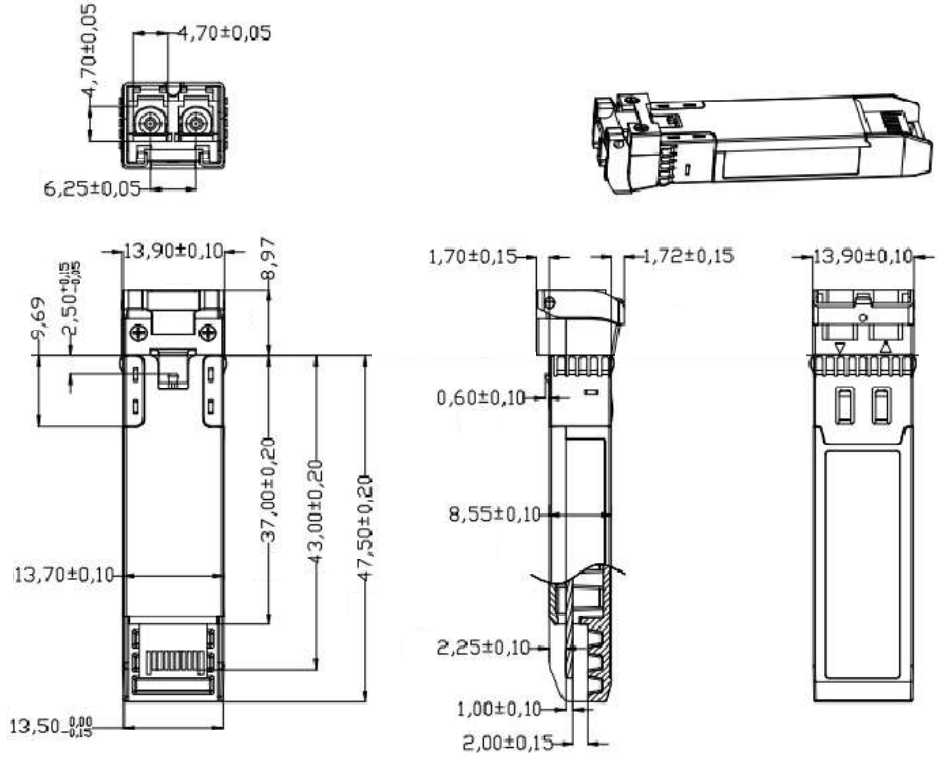

Optical specifications:

Transmitter

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Center Wavelenght Range

λc

1300

1310

1320

nm



Average Output Power

Pout

-3



1

dBm

1

Single Mode Suppression Ratio

SMSR

30





dB



Spectral Width (-20dB)

λ20





1

nm



Receiver

Center Wavelenght Range

λc

1260



1610

nm



Receiver Sensitivity@ 11.88Gbps

Pout





-10

dBm

2

Overload





0



dBm



LOS De-Assert

LOSD





-16





LOS Assert

LOSA

-27









Note 1- The optical power is launched into SMF

Note 2- Internally AC-coupled, minimum input overload power for SMPTE ST 2081-1, SMPTE ST 2082-1

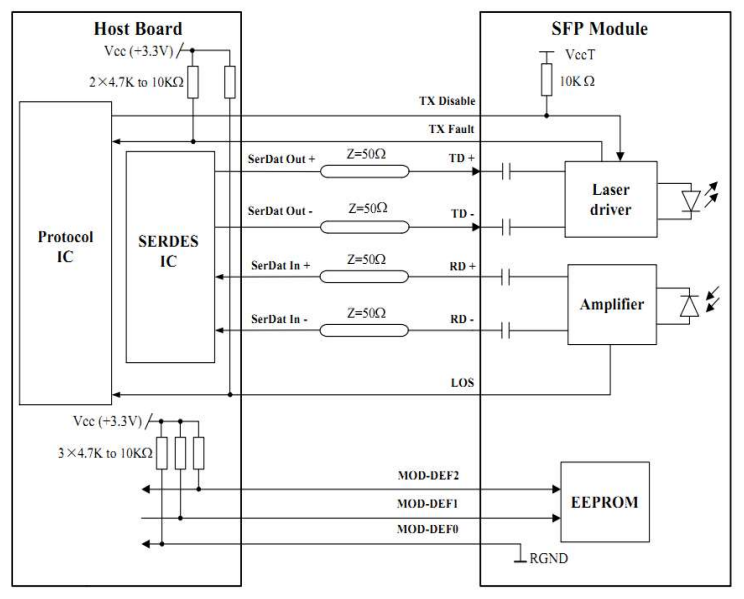

  • Serial Digital Fiber Transmission System for SMPTE ST 259, SMPTE ST 292-1, SMPTE ST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
  • UHDTV/HDTV/SDTV Service Interfaces
  • 4K Video (12G/6G Ultra-SDI) Optical Signal Transmission
