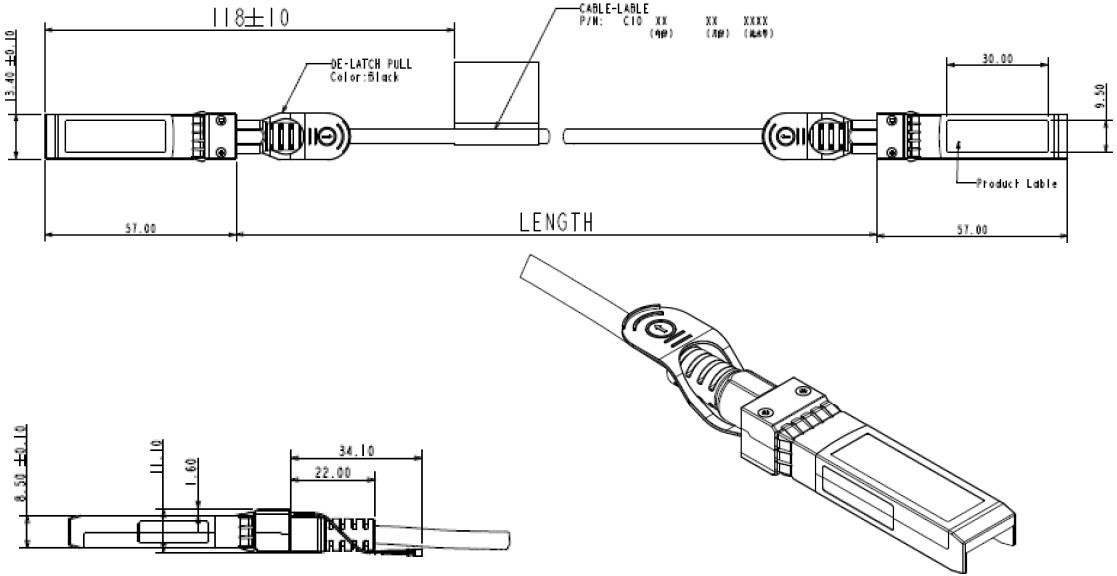

docx_45e8590e2389c209bd544bf0025f555c
docx_5353b95c13bc611e62d504e35773c0b3

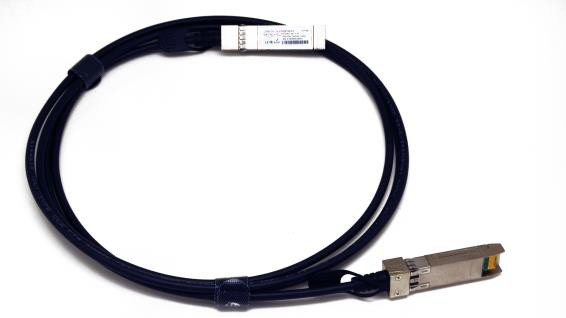

S25G-SP28-DAC 25G SFP28 Direct Attach Passive Cable

The S25G-SP28-DAC SFP28 passive copper cable offers a high-speed and economical solution for 25Gbps Ethernet connectivity, addressing the increasing demand for greater bandwidth in data centers.

The S25G-SP28-DAC cable consists of a single high-speed copper pair capable of operating at speeds up to 25 Gbps. It complies with the IEEE P802.3 Ethernet standard andthe SFF-8402 SFP28 standard. Each SFP28 connector includes an EEPROM that stores product information accessible to the host system.

  • Features
  • Specifications
  • Application
  • Documents
  • Up to 25Gbps data rate
  • Hot pluggable
  • Supports IEEE 802.3
  • Copper link length up to 5 m
  • Single +3.3V supply voltage
  • Operating case temperature: 0～70°C
  • SFF-8402 compliant tested in end-to-end system
  • RoHS compliant

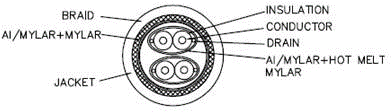

Bulk cable characteristics:
  • Voltage rating: 30 V
  • Temperature rating: 80 °C
  • Impedance: Differential mode 100 +10/-5 ohm @TDR
  • Copper link length up to 5 m
  • Delay Skew(INTRA-SKEW): 50ps/5m max.
  • Signal Twin-ax pair cable: Solid Ag plated copper conductor
  • Braid shielding coverage 85% min.
  • Jacket materiál: LSZH or PVC



  • 25G Gigabit Ethernet
  • Switches, Routers and HBAs
  • Data Centers
