The LS-240-MTP multifiber optical Light Source is designed for testing of patchcords and cables terminated with multifiber MTP/MPO connectors. The portable testing device fulfils all necessary technical field equipment requirements. LS-240-MTP can send light one by one into all 12/241 fibers of MTP/MPO connectors, the switching process can be made manually or automatically.

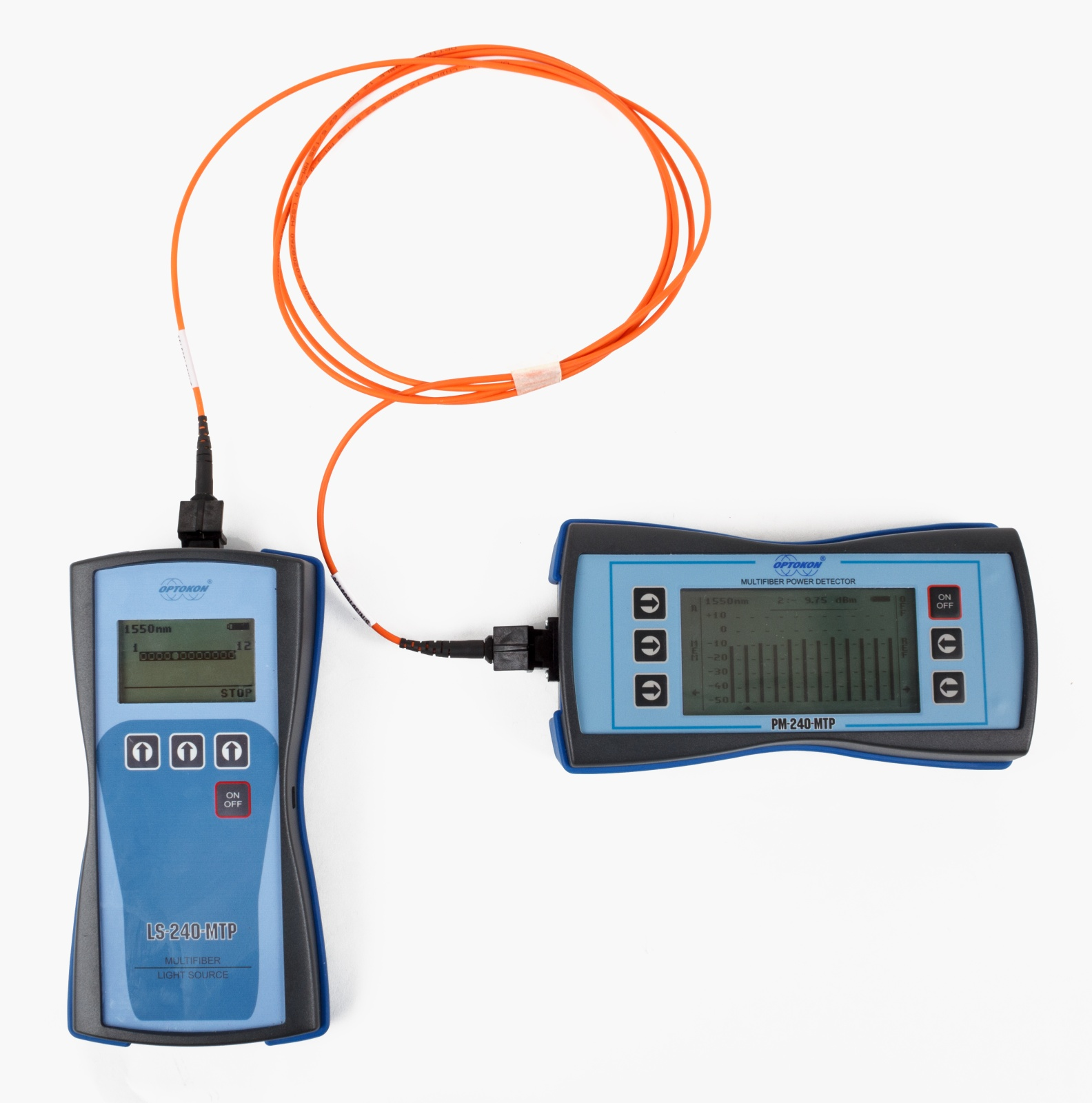

Together with PM-240-MTP power meter can measure Insertion loss in all 12 fibers at same time, in addition it is able to to check the polarity status of fibers interconnection between both MTP connectors. The output port is based on standard MTP male – pins connector.
The rechargeable battery ensures long term working with a minimum life time of 2 years. Batteries can be charged via a USB port.

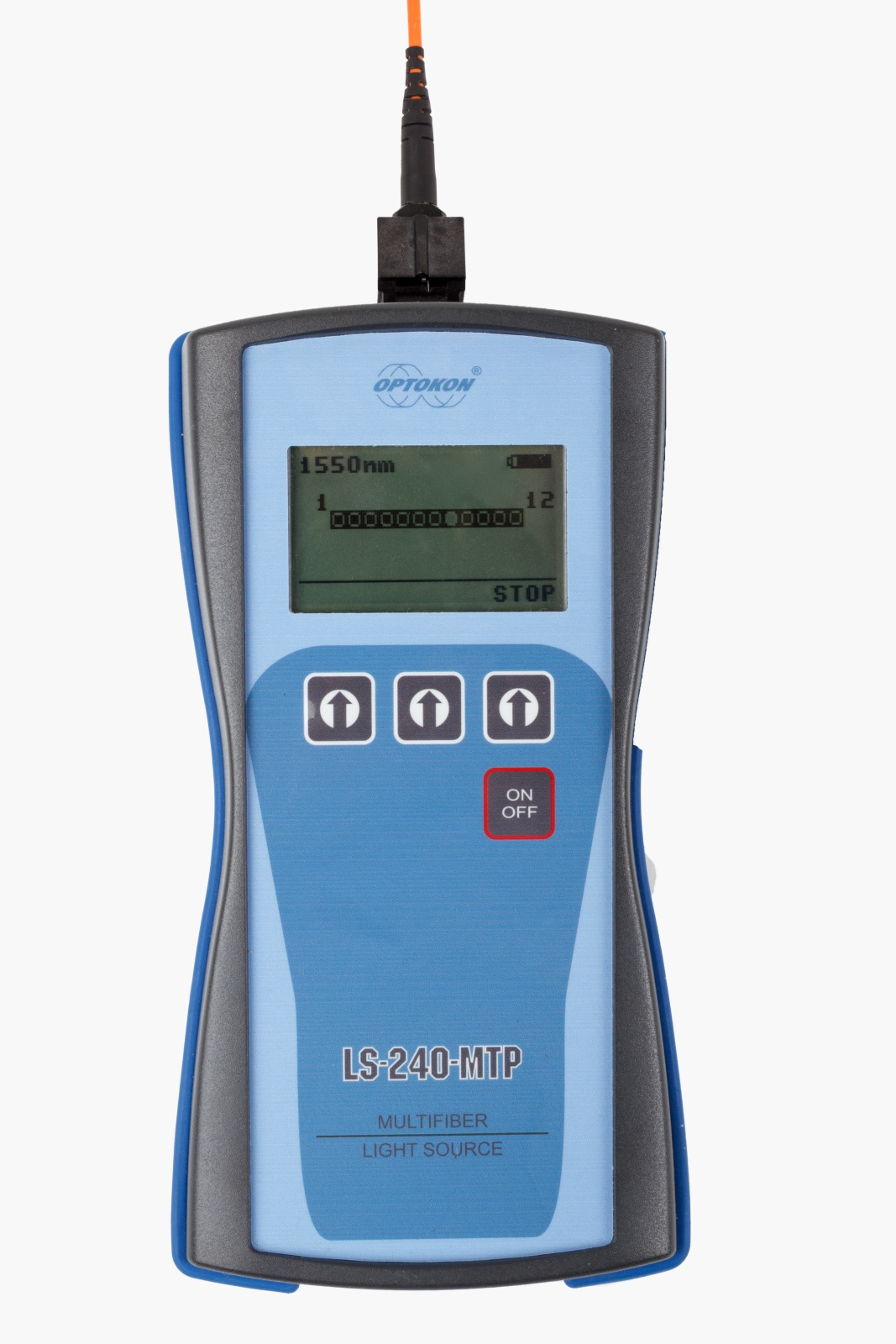

LS-240-MTP Multifiber Optical Light Source
• Hand held, light weight
• Multifiber MTP/MPO connectors testing
• No Fanout patchcords required
• Single or dual wavelength
• Manual switching through all fibers or Cycle mode
• Can be controlled remotely via USB
• Large display with backlight
• Powered by Li-Pol battery with status indication
• Battery charging via USB port
| Number of fibers | 12/24 |
| Wavelength: single ʎ | 850, 1310, 1550 nm |
| dual ʎ | 850/1300 or 1310/1550 nm |
| Output power | > -10 dBm |
| Stability (1 hour, delta/2): | Tested after 20 min warm up, temperature 23 ± 1 °C |
| 850, 1300 nm | ± 0.1 dB |
| 1310, 1550 nm | ± 0.05 dB |
| Dimensions | 200 x 100 x 50 mm |
| Weight | 340 g |
| Temperature operating | 10 to +50 °C |
| storage | -40 to +70 °C |
| Humidity (non condensing) | 0 to 95% |
| Battery working time | > 100 hrs |
| Battery life time | > 2 years |
Note: Compliant with RoHS-requirements (2002/95/EG, 27.01.2003)
• Optical network measurements
• Fiber continuity testing
• Polarity test
