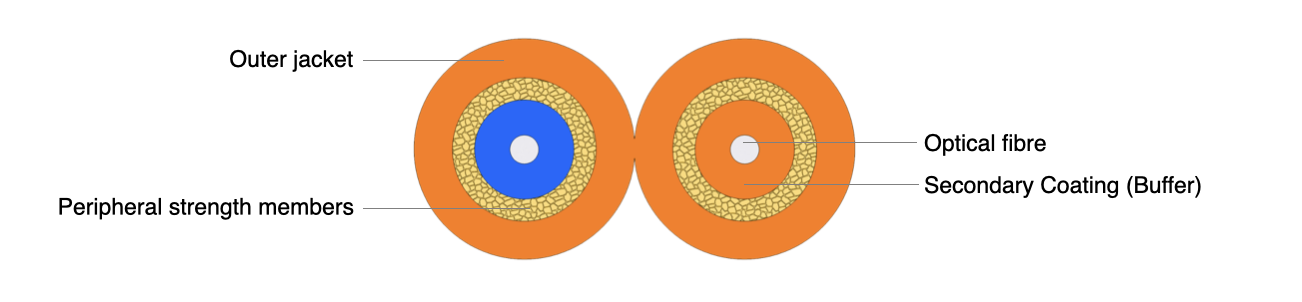

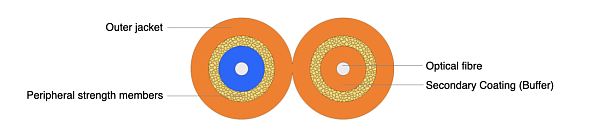

Duplex Zipcord Cable

For indoor general purpose, e.g. patch cords, office LAN connections or point-to-point interconnection.

A versatile indoor cable for quick patching, everyday office LAN runs, and simple point-to-point ties.

Fibre Count	2
Fibre Type	G.652.D, G.657.A1, G.657.A2, G.657.B3, G.655, OM1, OM2, OM3, OM4, OM5
Fibre Colour	Natural
Buffer Diameter	0.6 or 0.9 mm
Buffer Material	Halogen-free flame-retardant thermoplastic compound or UV curable resin
Buffer Colour	Blue, Orange
Strength Members	Aramid yarns
Outer Jacket	Halogen-free flame-retardant thermoplastic compound

Max. compressive loading (cable no. 1-6)	1000 N/100 mm
Max. compressive loading (cable no.7-8)	800 N/100 mm
Max. impact loading (cable no.1-6)	3 Nm
Max. impact loading (cable no.7-8)	1 Nm
Min. bend radius not load	10 OD
Min. bend radius load	15 OD
Operating temperature range - tight buffer	-20°C to +60°C
Operating temperature range - free buffer	-5°C to +50°C
Storage temperature range	-20°C to +60°C
Class of fire reaction	Fca

No.	Cable Code (Ordering Code)	Buffer Material	Buffer Diameter	Cable Outer Diameter	Max. Tensile Strength (Short Term)	Cable Weight (calc.)
1	OPK-I-DXZ-2(2×1.6)x6AH-yy-zz	Thermoplastic	0. 6 mm	1.6×3.2 mm	150 N	4.9 kg/km
2	OPK-I-DXZ-2(2×1.8)T6AH-yy-zz	Thermoplastic	0.6 mm	1.8×3.8 mm	150 N	6.1 kg/km
3	OPK-I-DXZ-2(2×1.8)x9AH-yy-zz	Thermoplastic	0.9 mm	1.8×3.8 mm	150 N	6.5 kg/km
4	OPK-I-DXZ-2(2×1.8)A9AH-yy-zz	UV curable resin	0.9 mm	1.8×3.8 mm	150 N	6.1 kg/km
5	OPK-I-DXZ-2(2×1.9)x9AH-yy-zz	Thermoplastic	0.9 mm	1.9×4.0 mm	150 N	7.5 kg/km
6	OPK-I-DXZ-2(2×2.0)x9AH-yy-zz	Thermoplastic	0.9 mm	2.0×4.2 mm	150 N	7.7 kg/km
7	OPK-I-DXZ-2(2×2.4)x9AH-yy-zz	Thermoplastic	0.9 mm	2.4×5.0 mm	250 N	10.0 kg/km
8	OPK-I-DXZ-2(2×2.8)x9AH-yy-zz	Thermoplastic	0.9 mm	2.8×5.7 mm	250 N	14.3 kg/km

x – buffer stripability yy – fiber type zz – jacket color
