For indoor general purpose, e.g. patch cords, office LAN connections or point-to-point interconnection

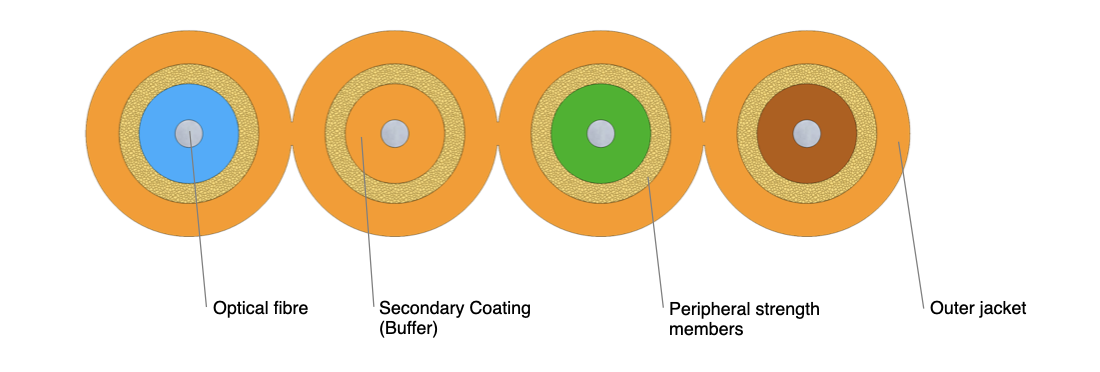

Quadplex Cable
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4, OM5 |
| Fibre colour | Natural |
| Buffer material | Halogen-free flame-retardant thermoplastic compound |
| Buffer colour | Blue, Orange, Green, Brown |
| Peripheral strength members | Aramid yarns |
| Outer jacket material | Halogen-free flame-retardant thermoplastic compound |
| Number of fibres | 4 | |
| Number of fibres in tube | 1 | |
| Buffer diameter | 0.9 | |
| Cable outer diameter (mm) | 7.9x1.85 | |
| Calc. cable weight (kg/km) | 13.5 | |
| Short-term tensile strength (N) | 330 | IEC 60794-1-101 |
| Short-term crush resistance (N/100 mm) | 500 | IEC 60794-1-103 |
| Max. impact loading (Nm) | 5 | IEC 60794-1-104 |
| Min. bend radius not load (OD) | 10 | IEC 60794-1-111 |
| Min. bend radius load (OD) | 15 | IEC 60794-1-111 |
| Operating temperature range (°C) | Tight buffer: -20 to +60 | IEC 60794-1-201 |
| Free buffer: - 5 to +50 | IEC 60794-1-201 | |
| Storage temperature range (°C) | -20 to +60 | IEC 60794-1-201 |
| Class of fire reaction | Fca | EN 50575, EN 13501-6 |
0037_Quadplex_Cable
