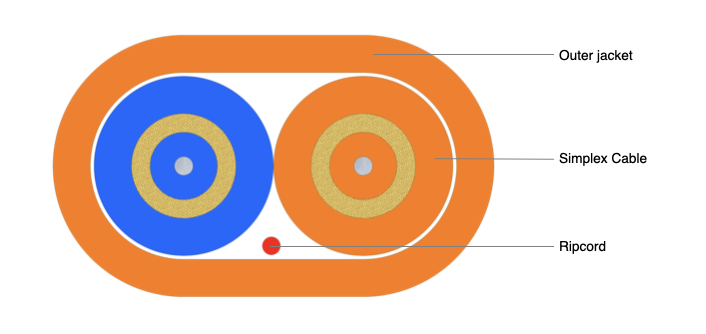

Flat Twin Cable

For indoor general purpose, e.g. patch cords, office LAN connections or point-to-point interconnection.

Indoor general-purpose cable for patch cords, office LAN links, and point-to-point connections.

Fibre Count	2
Fibre Type	G.652.D, G.657.A1, G.657.A2, G.657.B3, G.655, OM1, OM2, OM2+, OM3, OM4, OM5
Fibre Colour	Natural
Buffer Diameter	0.9 mm
Buffer Material	FR-LSHF Thermoplastic or UV curable resin
Buffer Colour	Blue, Orange
Strength Members	Aramid yarns
Inner Jacket	Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2
Inner Jacket Colour	Blue, Orange
Outer Jacket	Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2
Ripcord	1x under inner and outer jacket

Max. compressive loading	500 [N/10cm] EN 60794-1-21-E3
Max. Impact loading	5 [Nm] EN 60794-1-21-E4
Min. bend radius not load	(along a longer axis) 10 [OD] EN 60794-1-21-E11
Min. bend radius load (along a longer axis)	15 [OD] EN 60794-1-21-E11
Operating temperature range	tight buffer -20 to +60 [°C] EN 60794-1-22-F1
free buffer	-5 to +50 [°C] EN 60794-1-22-F1
Storage temperature range	-20 to +60 [°C] EN 60794-1-22-F1
Installation temperature range	-5 to +50 [°C] EN 60794-1-22-F1
Class of fire reaction	Fca EN 13501-6

Fibre Count	Cable Code (Ordering Code)	Buffer Material	Buffer Diameter	Cable Outer Diameter	Max. Tensile Strength (Short Term)	Cable Weight (calc.)
2	OPK-I-DHX-2(2×2.0)x9AHH-yy-zz	Thermoplastic	2.0 mm	3.2x5.2 mm	200 N	17 kg/km
2	OPK-I-DHX-2(2×2.4)x9AHH-yy-zz	Thermoplastic	2.4 mm	3.8x5.8 mm	300 N	20 kg/km
2	OPK-I-DHX-2(2×2.8)x9AHH-yy-zz	Thermoplastic	2.8 mm	4.1x7.0 mm	300 N	24 kg/km

x – buffer stripability yy – fiber type zz – jacket color
