For indoor general purpose, e.g. patch cords, office LAN connections or point-to-point interconnection

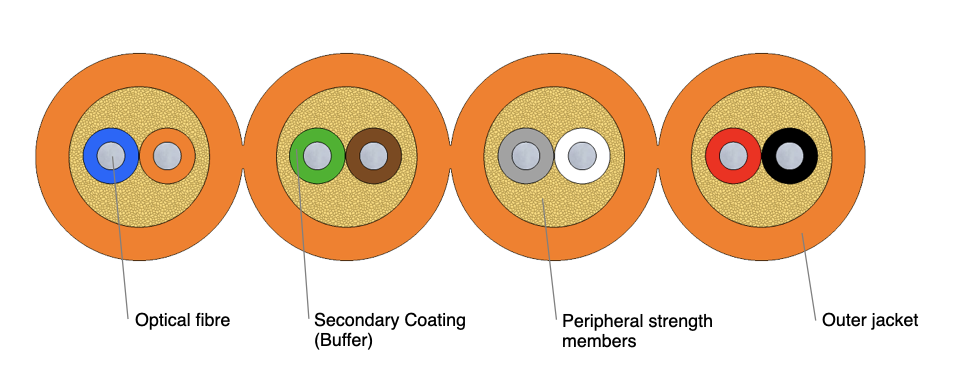

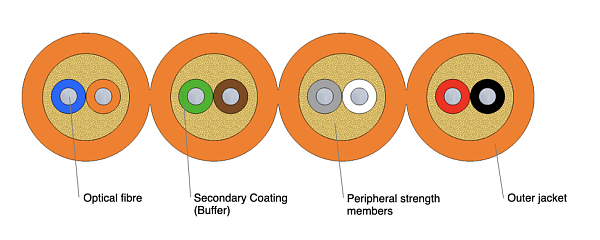

Quad-duplex Cable
Indoor general-purpose cable for patch cords, office LAN links, and point-to-point connections.
| Fibre count | 8 (4×2) |
| Fibre Type | G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4, OM5 |
| Fibre colour | Natural |
| Buffer diameter | 0.9 mm |
| Buffer material | FR-LSHF Thermoplastic |
| Buffer colour | 1. Blue, Orange |
| Strength members | Aramid yarns |
| Outer jacket | Halogen-free flame-retardant thermoplastic compound |
| Cable outer diameter | 7.7×1.95 [mm] |
| Max. Tensile Loading (Short Term) | 300 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 400 [N/10cm] EN 60794-1-21-E3 |
| Max. Impact loading | 5 [Nm] EN 60794-1-21-E4 |
| Min. bend radius not load | (along a longer axis) 10 [OD] EN 60794-1-21-E11 |
| Min. bend radius load (along a longer axis) | 15 [OD] EN 60794-1-21-E11 |
| Operating temperature range | tight buffer -20 to +60 [°C] EN 60794-1-22-F1 |
| free buffer | -5 to +50 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -20 to +60 [°C] EN 60794-1-22-F1 |
| Cable Weight (calc.) | 15 [kg/km] |
| Class of fire reaction | Eca EN 13501-6 |
| Cable Code (Ordering Code) | OPK-I-SPCS-8(4x2.0)T5AH-yy-zz xx – fiber type yy – jacket color (see Cable code datasheet) |

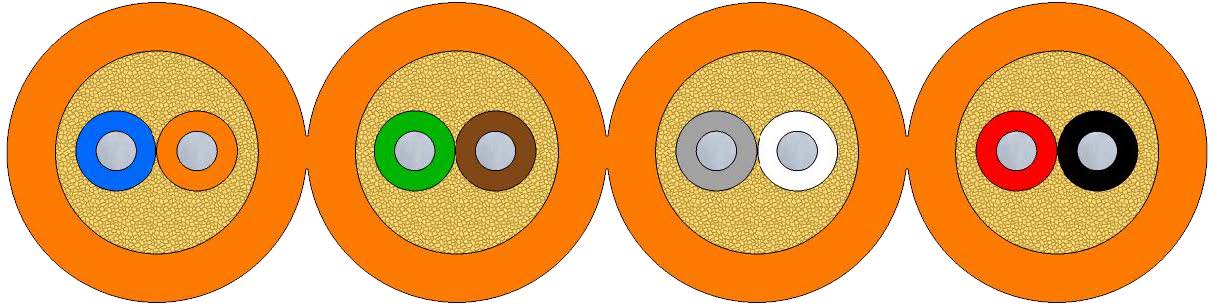

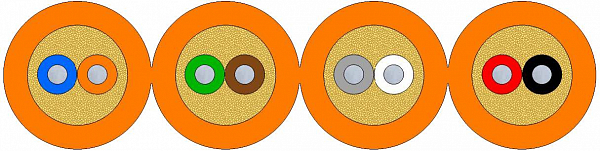

0259_Quad-duplex Cable
