For indoor general purpose, e.g. patch cords, office LAN connections or point-to-point interconnection

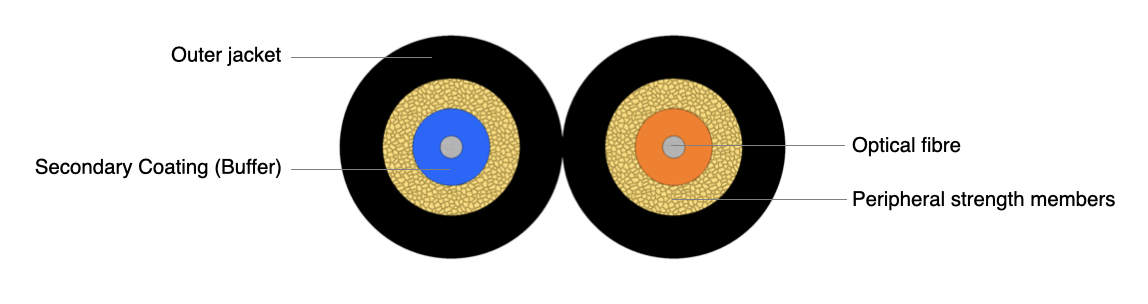

Duplex Zipcord Cable TPU
Indoor general-purpose cable for patch cords, office LAN links, and point-to-point connections.
| Fibre count | 2 |
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.657.B3, G.655, OM1, OM2, OM3, OM4, OM5 |
| Buffer diameter | 0.9 mm |
| Buffer material | Halogen-free flame-retardant thermoplastic compound or Polyamide 12 |
| Strength members | Aramid yarns |
| Outer jacket | Flame-retardant (V-2, UL94) Thermoplastic Polyurethane |
| Nominal outer diameter | 2.6x5.5 mm |
| Cable Weight (calc.) | 10 kg/km |
| Max. Tensile Loading-Short Term | 250 N |
| Max. Tensile Loading-Long Term | 80 N |
| Max. compressive loading | 500 N/100mm |
| Max. Impact loading | 1 Nm |
| Min. bend radius-not load* | 5 x OD |
| Min. bend radius-load* | 10 x OD |
| Operating temperature range | -5°C to +50°C (free buffer) |
| -20°C to +60°C | (tight buffer) |
| -40°C to +70°C | (PA buffer) |
| Storage temperature range | -20°C to +60°C (PA buffer -40°C to +70°C) |
| Installation temperature range | +5°C to +50°C (PA buffer -40°C to +60°C) |
| Class of fire reaction | Fca |
*Depends on fibre type
| Cable Code (Ordering Code) | OPK-I-DXZ-2(2×2.6)x9AU-yy-zz |
x – Tight buffer type , yy – fibre type, zz– jacket color (see Cable code datasheet)
0312_Duplex Zipcord Cable TPU
