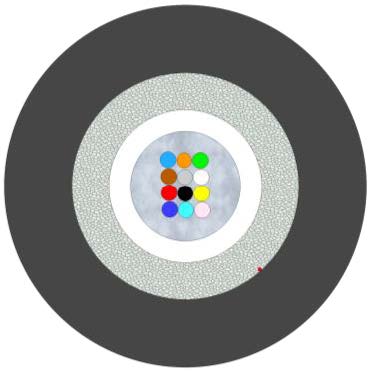

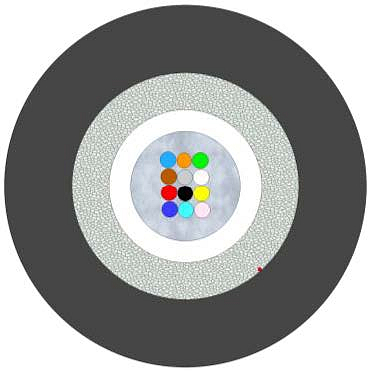

Universal glass yarn protected Unitube Cable (IC) 1200N

Indoor/Outdoor fiber optic cable for installing into ducts or on grids

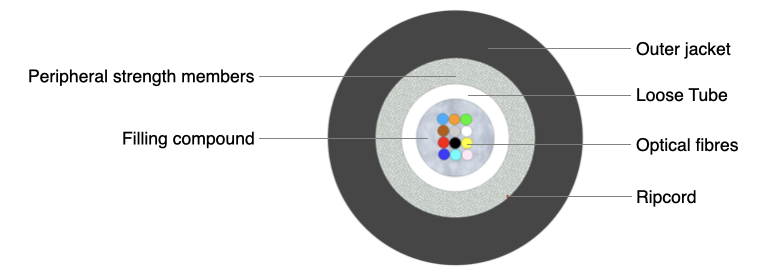

Fibre Type	G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4, OM5
Fibre colour	EIA/TIA-598A
Tube colour	Natural / White
Peripheral strength members	Water-swellable glass yarns
Ripcord	1x under outer jacket
Outer jacket material	Black UV resistant Halogen-free flame-retardant thermoplastic compound

Number of fibres	2	4	6	8	12
Number of fibres in tube	2	4	6	8	12
Tube count (layers)	1	1	1	1	1
Tube diameter (mm)	2.5
Nominal outer diameter (mm)	5.7
Outer jacket thickness (mm)	1.2
Calc. cable weight (kg/km)	36
Short-term tensile strength (N)	1200					IEC 60794-1-101
Long-term tensile strength (N)	380					IEC 60794-1-101
Short-term crush resistance (N/100 mm)	1000					IEC 60794-1-103
Long-term crush resistance (N/100 mm)	300					IEC 60794-1-103
Max. impact loading (Nm)	10					IEC 60794-1-104
Min. bend radius not load (OD)	10					IEC 60794-1-111
Min. bend radius load (OD)	20					IEC 60794-1-111
Operating temperature range (°C)	-20 to +60					IEC 60794-1-201
Storage temperature range (°C)	-40 to +60					IEC 60794-1-201
Installation temperature range (°C)	-15 to +50					IEC 60794-1-201
Water tightness (1 m / 24 hrs.)	No leakage					IEC 60794-1-205
Class of fire reaction	Eca					EN 50575, EN 13501-6
