Indoor/Outdoor fiber optic cable with a higher level of protection against rodents for installing into ducts or on grids.

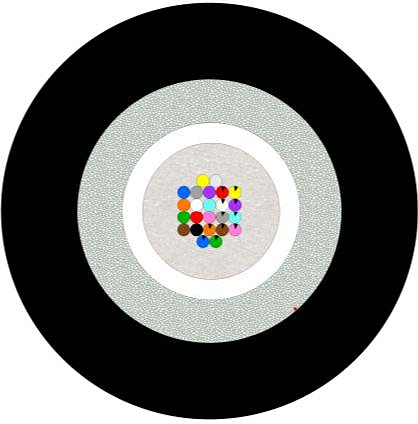

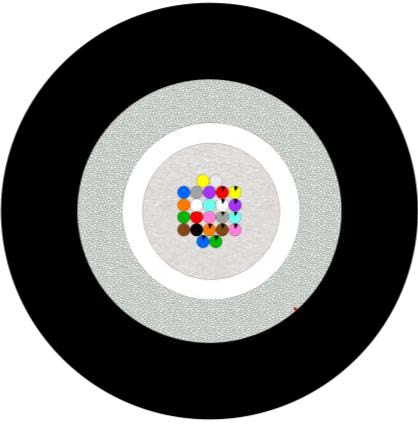

Universal glass yarn armoured Unitube Cable (BT) 3100N
Indoor/Outdoor fiber optic cable with enhanced rodent protection—suitable for installation in ducts or on cable grids.
| Fibre count | 16 - 24 |
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4, OM5 |
| Fibre colour 1-12 | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Fibre colour 13-24 | BlueBS, OrangeBS, GreenBS, BrownBS, GreyBS, WhiteBS, RedBS, Natural, YellowBS, VioletBS, PinkBS, AquaBS |

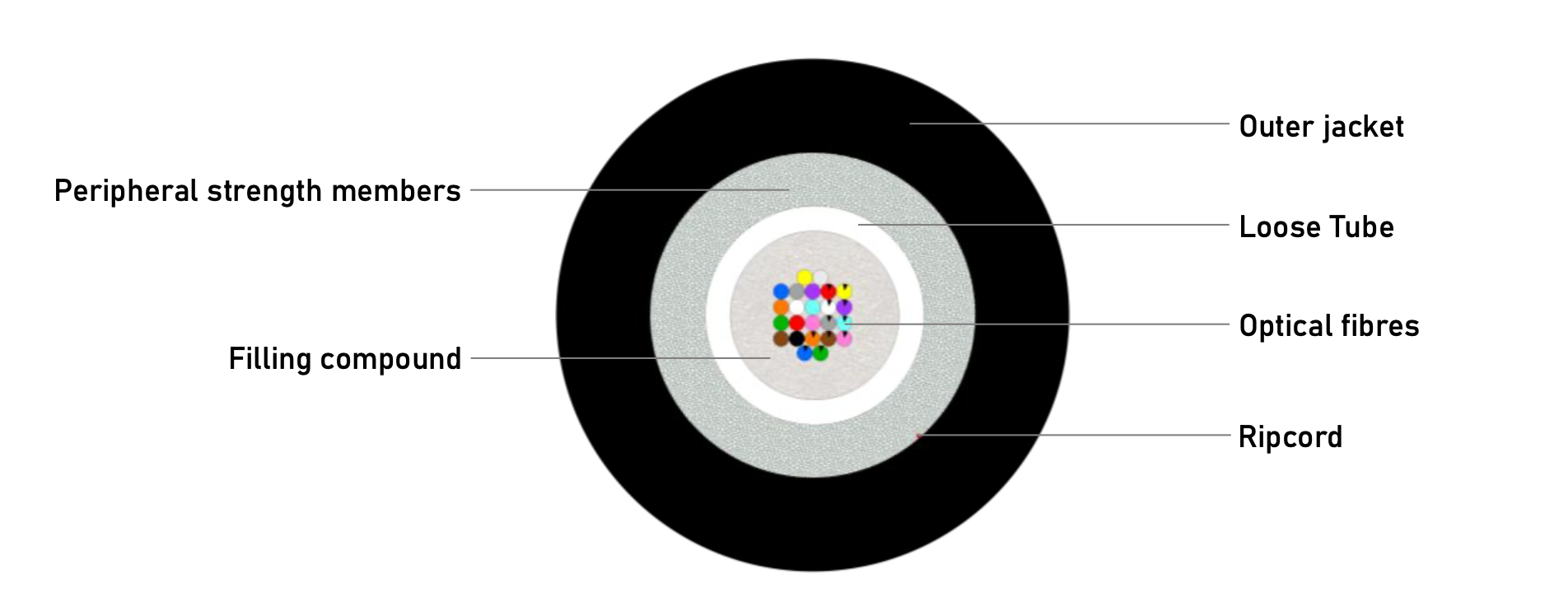

| Tube | Gel-Filled PBT buffer tube |
| Tube colour | Natural / White |
| Tube diameter | 3.5 mm |
| Filling compound | Low-viscosity filling gel |
| Peripheral strength members | Water-swellable Glass yarn |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Outer jacket thickness | 1.5 mm |
| Cable outer diameter | 8.2 mm |
| Cable Weight (calc.) | 76 kg/km |
| (BS | Black strip) |
| Max. Tensile Loading-Short Term | 3100 N |
| Max. Tensile Loading-Long Term | 1000 N |
| Max. compressive loading | 2500 N/100mm |
| Max. Impact loading | 15 Nm |
| Min. bend radius-not load | 10 x OD |
| Min. bend radius-load | 20 x OD |
| Operating temperature range | -20 °C to +70 °C |
| Storage temperature range | -40 °C to +70 °C |
| Installation temperature range | -15 °C to +50 °C |
| Water tightness | No water detected on free end |
| Class of fire reaction | Eca |
| Fibre Count | Cable Code (Ordering Code) |
|---|---|
| 16 | OPK-U-CTFR-16(1x3.5)LTGGH-xx-yy |
| 24 | OPK-U-CTFR-24(1x3.5)LTGGH-xx-yy |
0093_OPK-U-CTFR-24(1x3.5)LTGGH
