Products developed the QSFP+ Active Optical cable to provide an affordable, high-performance, low power approaches when connecting point-to-point or rack-to-rack. Parallel AOC are using full duplex 4 channel 850nm VCSEL technology. The QSFP+ to QSFP+ AOC provide data rates of up to 40 Gbps (Up to 11.1Gbps data rate per channel). Maximum link length is 300m links on OM3 multimode fiber. AOC is electrically hot-pluggable compliant to SFF-8431, QSFP+ MSA and RoHS. Power dissipation < 1.5 W (per cable end).

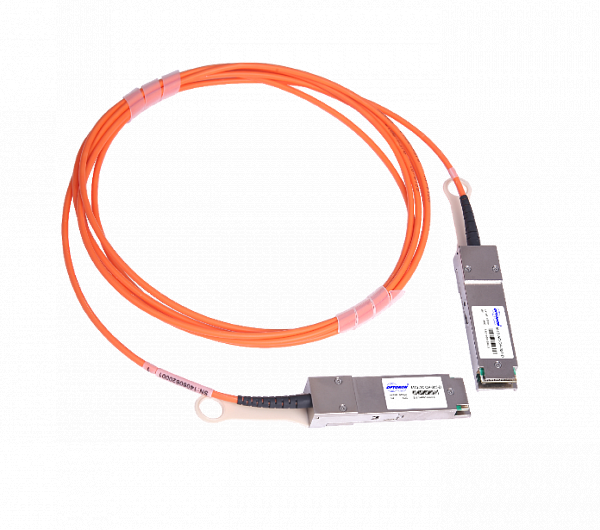

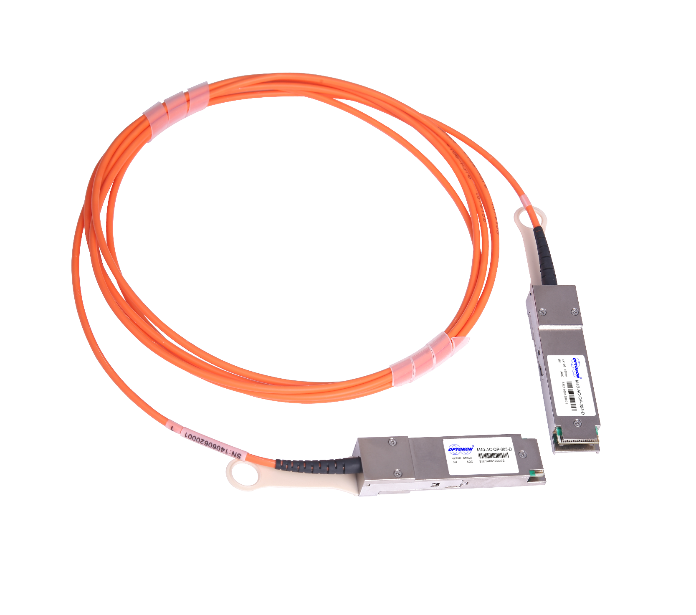

Active Optical Cable – 40 Gb/s QSFP+
- Affordable, high-performance, low power approaches when connecting point-to-point or rack-to-rack
- Data rates of up to 40 Gbps
- Maximum link length is 300m links on OM3 multimode fiber
- AOC is electrically hot-pluggable compliant to SFF-8431, QSFP+ MSA and RoHS. Power dissipation < 1.5 W (per cable end)
- 40G Ethernet
- Infiniband QDR
- Fiber channel
- HPC Interconnections
ACT_10-16_EN-AOC-QSFP-40Gbps
