The cable is suitable for indoor or outdoor use. Cable is for a wide range of applications in FTTx networks.
FTTx Drop Cable 2F
|

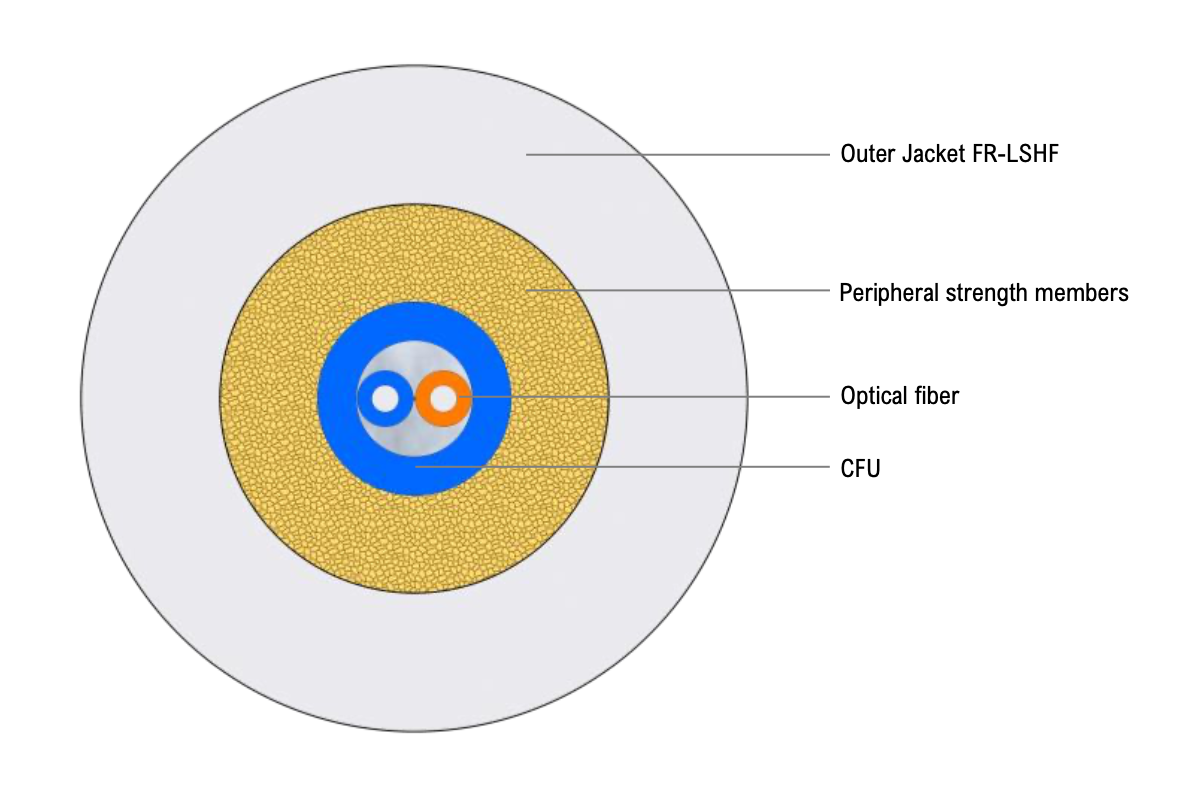

Fibre Type |
G.657.A1, G.657.A2, G.657.B3 |
| Fibre colour | Blue, Orange |
| CFU diameter | 0.9 mm |
| CFU material | UV curable acrylate. Under the outer layer is very thin layer of gel for the better stripability (20 cm in one step). |
| CFU olour | Blue |
| Peripheral Strength member | Water-swellable Aramid Yarn |
| Outer jacket | Thermoplastic FR-LSHF compound according to BS 7878:7 and DIN VDE 0207, part 24, type HM2 |
| Outer jacket colour | White |
| Outer jacket thickness | 0.6 mm |
| Cable outer diameter | 3.1 [mm] |
| Max. tensile loading | 400 [N] |
| Max. compressive loading | 500 [N] |
| Max. Impact loading | 1 [Nm] |
| Min. bend radius not load | 5* [mm] |
| Min. bend radius load | 60 [mm] |
| Operating temperature range | -40 to +70 [°C] |
| Installation temperature range | +5 to +50 [°C] |
| Storage temperature range | -40 to +70 [°C] |
| Cable Weight | 9.8 [kg/km] |
| Class of fire reaction | Eca |
| Test standards | EN 60793-1, EN 60794-1-21, EN 60794-1-22, EN 13501-6 |
*Depends on the type of fiber
| Cable Code (Ordering Code) | OPK-U-DRP-2(1x0.9)CFUAAH-xx-WH xx – fiber type (see Cable code datasheet) |
0142_OPK-U-DRP-2(1x0.9)CFUAAH.pdf
