Full dielectric cable for external or internal installation on cable trays or into duct by pulling

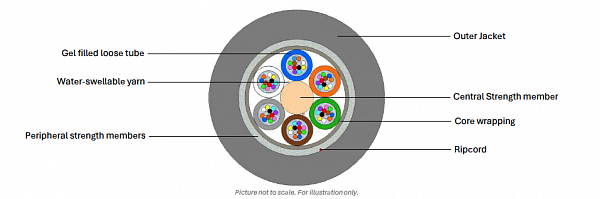

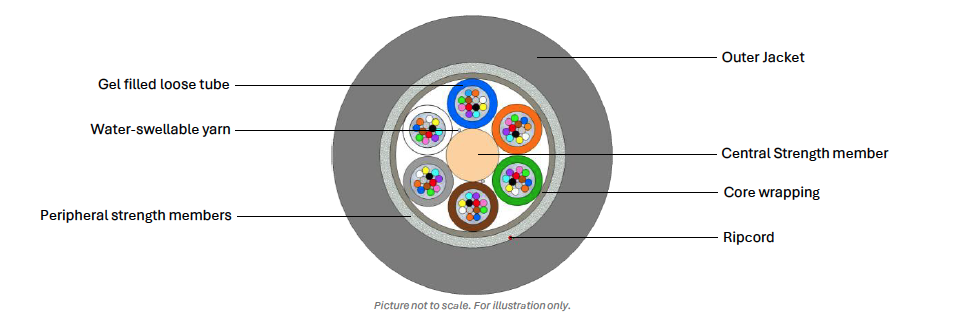

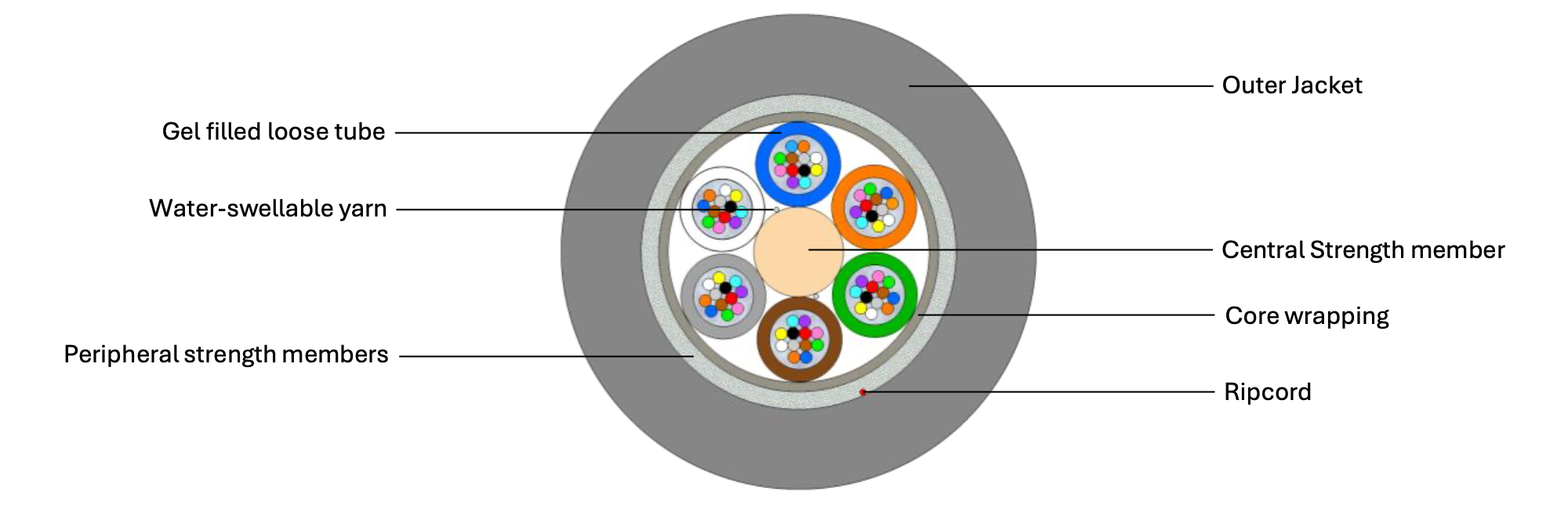

Universal Multitube Cable 12-144F (1.7)
All-dielectric cable for internal or external runs—mount on cable trays or pull into ducts for clean, dependable installs.
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4, OM5 |
| Fibre colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Central strength member | FRP rod (coated if necessary) |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket material | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Outer jacket thickness | 1.6 mm |
| Number of fibres | 12 | 24 | 48 | 60 | 72 | 96 | 144 | |
| Number of fibres in tube | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| Tube count (layers) | 1 | 2 | 4 | 5 | 6 | 8 | 12 | |
| Filler count | 5 | 4 | 2 | 1 | 0 | 0 | 0 | |
| Nominal outer diameter (mm) | 9.5 | 9.5 | 9.5 | 9.5 | 9.5 | 10.5 | 12.5 | |
| Calc. cable weight (kg/km) | 90 | 91 | 92 | 93 | 94 | 115 | 168 | |
| Short-term tensile strength (N) | 2200 | 2200 | 2200 | 2200 | 2200 | 4900 | 6500 | IEC 60794-1-101 |
| Long-term tensile strength (N) | 1000 | 1000 | 1000 | 1000 | 1000 | 2800 | 4000 | IEC 60794-1-101 |
| Crush resistance (N/100 mm) | 2000 | IEC 60794-1-103 | ||||||
| Max. impact loading (Nm) | 10 | IEC 60794-1-104 | ||||||
| Min. bend radius not load (OD) | 15 | IEC 60794-1-111 | ||||||
| Min. bend radius load (OD) | 20 | IEC 60794-1-111 | ||||||
| Operating temperature range (°C) | -40 to +70 | IEC 60794-1-201 | ||||||
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 | ||||||
| Installation temperature range (°C) | -15 to +50 | IEC 60794-1-201 | ||||||
| Water tightness (1 m / 24 hrs.) | No leakage | IEC 60794-1-205 | ||||||
| Class of fire reaction | Fca | EN 50575, EN 13501-6 | ||||||
| Number of Fibers | Cable Code (Ordering Code) |
|---|---|
| 12 | OPK-U-MTFFS-12(6x1.7)LTGH-xx-BK* |
| 24 | OPK-U-MTFFS-24(6x1.7)LTGH-xx-BK* |
| 36 | OPK-U-MTFFS-36(6x1.7)LTGH-xx-BK* |
| 48 |
OPK-U-MTFFS-48(6x1.7)LTGH-xx-BK* |
| 60 |
OPK-U-MTFFS-60(6x1.7)LTGH-xx-BK* |
| 72 |
OPK-U-MTFFS-72(6x1.7)LTGH-xx-BK* |
| 96 |
OPK-U-MTFFS-96(8x1.7)LTGH-xx-BK* |
| 144 |
OPK-U-MTFFS-144(12x1.7)LTGH-xx-BK* |
xx– fibre type (see Cable code datasheet) *Other colour available on request
0151_Universal Multitube Cable 12-144F (NC)
