OPTOKON CFP transceivers is designed for high speed communication applications that requiring rates of from 103.125 to 111.81 Gbps. The transceiver converts 4 inputs channel of 25.78 to 27.95 Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel through an industry standard LC connector.

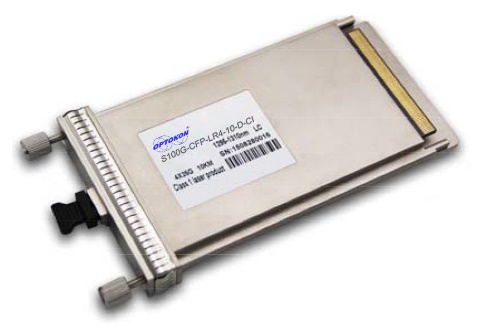

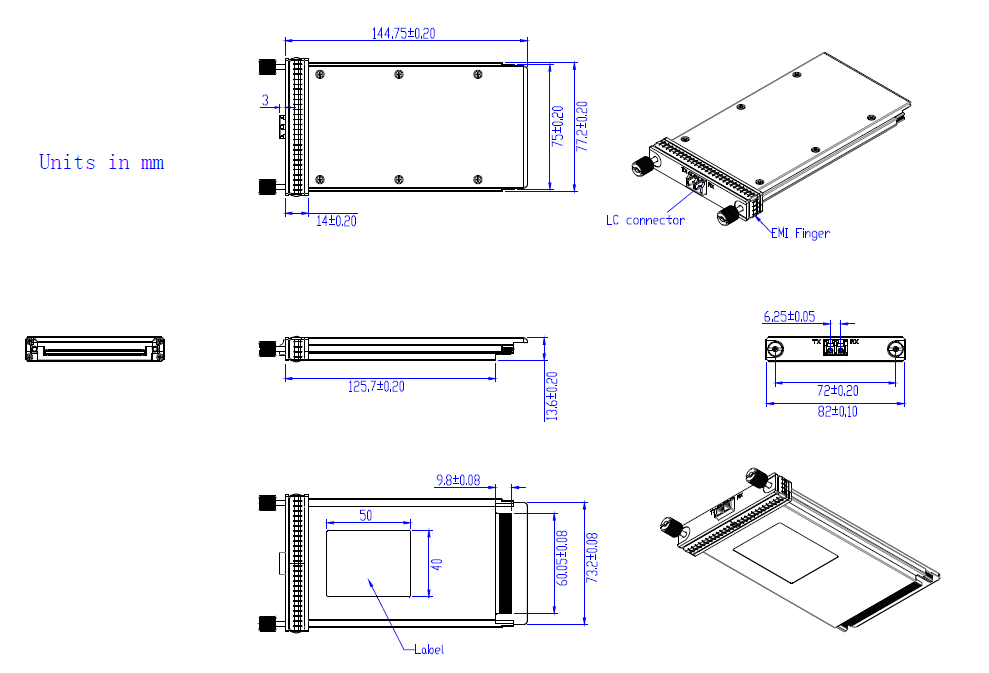

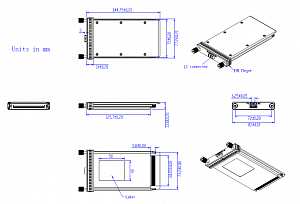

CFP Transceivers – 100 Gbps LR4, ER4
- Compliant with 100GBASE-LR4 and 100GBASE-ER4
- Support line rates from 103.125 Gbps to 111.81 Gbps
- Integrated LAN WDM TOSA/ROSA for up to 10 km (LR4) and up to 40 km (ER4) reach over SMF
- Duplex LC optical receptacle
- Single 3.3 V power supply
- Power dissipation < 12W (LR4) and < 9W (ER4)
- CWDM - 1296nm, 1300nm, 1305nm and 1309nm
Optical characteristics
Transmitter
|
Parameter: |
Min |
Typ. |
Max |
Unit |
|
Signaling rate, each lane |
|
25.78125 |
|
Gbps |
|
Lane wavelength（range） |
1294.53 |
1295.56 |
1296.59 |
nm |
|
1299.02 |
1300.05 |
1301.09 |
nm |
|
|
1303.54 |
1304.58 |
1305.63 |
nm |
|
|
1308.09 |
1309.14 |
1310.19 |
Nm |
|
|
Total launch power |
|
|
10.5 (LR4) / 8.9 (ER4) |
dBm |
|
Average launch power, each lane |
-4.3 (LR4) / -2.9 (ER4) |
|
4.5 (LR4) / 2.9 (ER4) |
dBm |
|
Average launch power of OFF transmitter, each lane |
|
|
-30 |
dBm |
Receiver
|
Parameter: |
Min |
Typ. |
Max |
Unit |
|
Average receive power, each lane |
-10.6 (LR4) / -20.9 (ER4) |
|
4.5 |
dBm |
|
Receive power, each lane (OMA) |
|
|
4.5 |
dBm |
|
Receiver Sensitivity (OMA), each lane |
|
|
-6.8 (LR4) / -21.4 (ER4) |
dBm |
- Data Center and 100G Ethernet
- ITU-T OTU4
ACT_12-22_EN-CFP_100G_LC
