Indoor/Outdoor fiber optic cable for installing into ducts or on grids

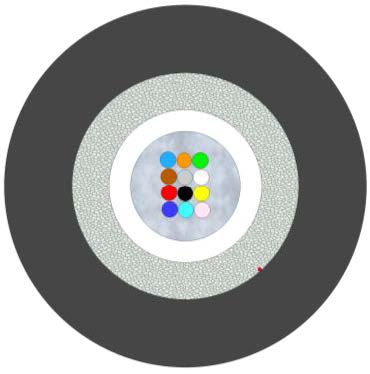

 1000N.jpeg "Universal Glass Yarn Protected Unitube Cable (GC) 1000N")

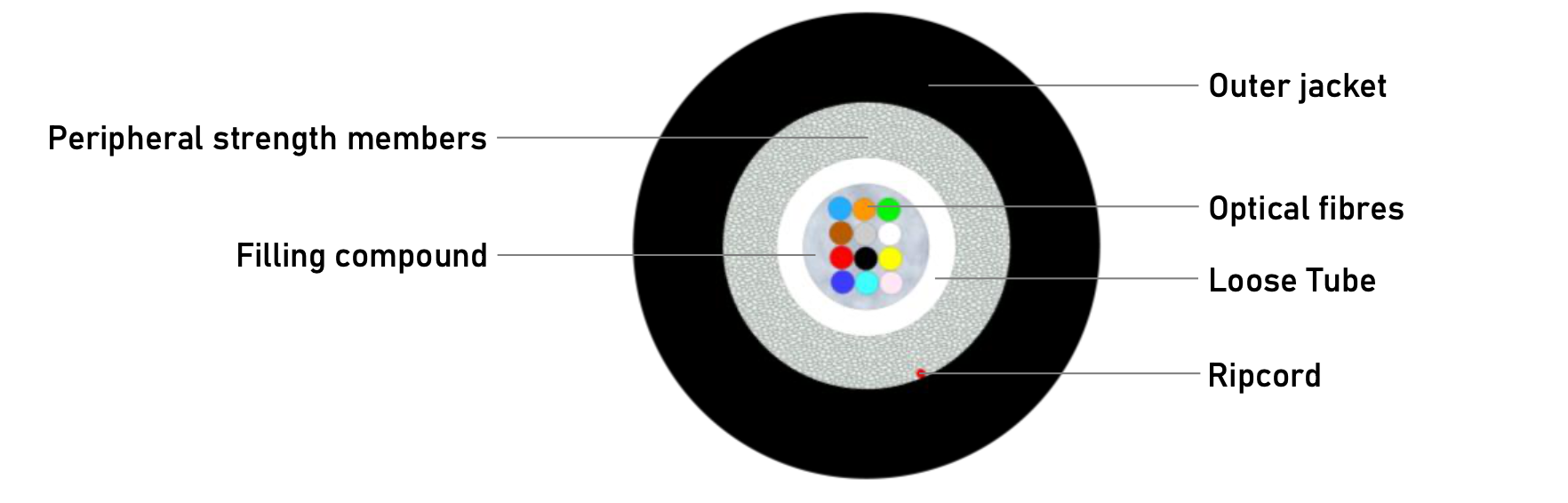

Universal Glass Yarn Protected Unitube Cable (GC) 1000N
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4, OM5 |
| Fibre colour | EIA/TIA-598A |
| Tube colour | Natural / White |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket material | Black UV resistant Halogen-free flame-retardant thermoplastic compound |
| Number of fibres | 2 | 4 | 6 | 8 | 12 | |
| Number of fibres in tube | 2 | 4 | 6 | 8 | 12 | |
| Tube count (layers) | 1 | 1 | 1 | 1 | 1 | |
| Tube diameter (mm) | 2.0 | |||||
| Nominal outer diameter (mm) | 5.2 | |||||
| Outer jacket thickness (mm) | 1.0 | |||||
| Calc. cable weight (kg/km) | 28 | |||||
| Short-term tensile strength (N) | 1000 | IEC 60794-1-101 | ||||
| Long-term tensile strength (N) | 320 | IEC 60794-1-101 | ||||
| Short-term crush resistance (N/100 mm) | 1000 | IEC 60794-1-103 | ||||
| Max. impact loading (Nm) | 10 | IEC 60794-1-104 | ||||
| Min. bend radius not load (OD) | 10 | IEC 60794-1-111 | ||||
| Min. bend radius load (OD) | 20 | IEC 60794-1-111 | ||||
| Operating temperature range (°C) | -20 to +60 | IEC 60794-1-201 | ||||
| Storage temperature range (°C) | -40 to +60 | IEC 60794-1-201 | ||||
| Installation temperature range (°C) | -15 to +50 | IEC 60794-1-201 | ||||
| Water tightness (1 m / 24 hrs.) | No leakage | IEC 60794-1-205 | ||||
| Class of fire reaction | Eca | EN 50575, EN 13501-6 | ||||
0202_Universal Glass Yarn Protected Unitube Cable (GC) 1000N
