Indoor/Outdoor fiber optic cable with a higher level of protection against rodents for installing into ducts or on grids.

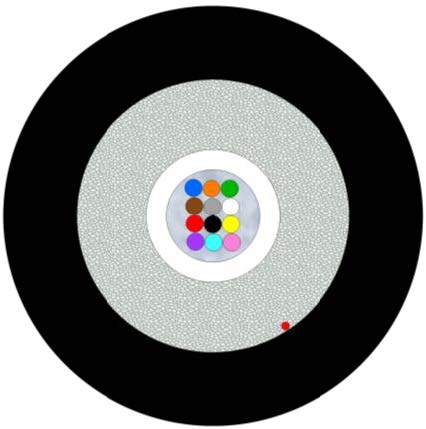

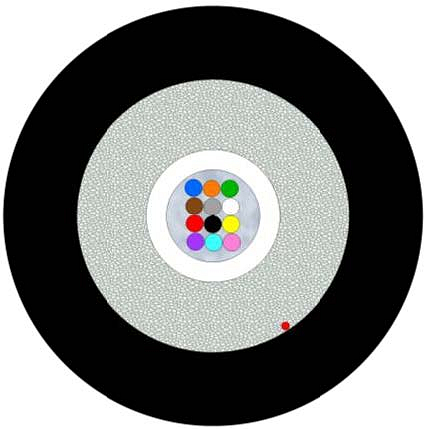

Universal glass yarn armoured Unitube Cable (SC) 2500N
Indoor/Outdoor fiber optic cable with enhanced rodent protection—install in ducts or on cable grids for long-term reliability.

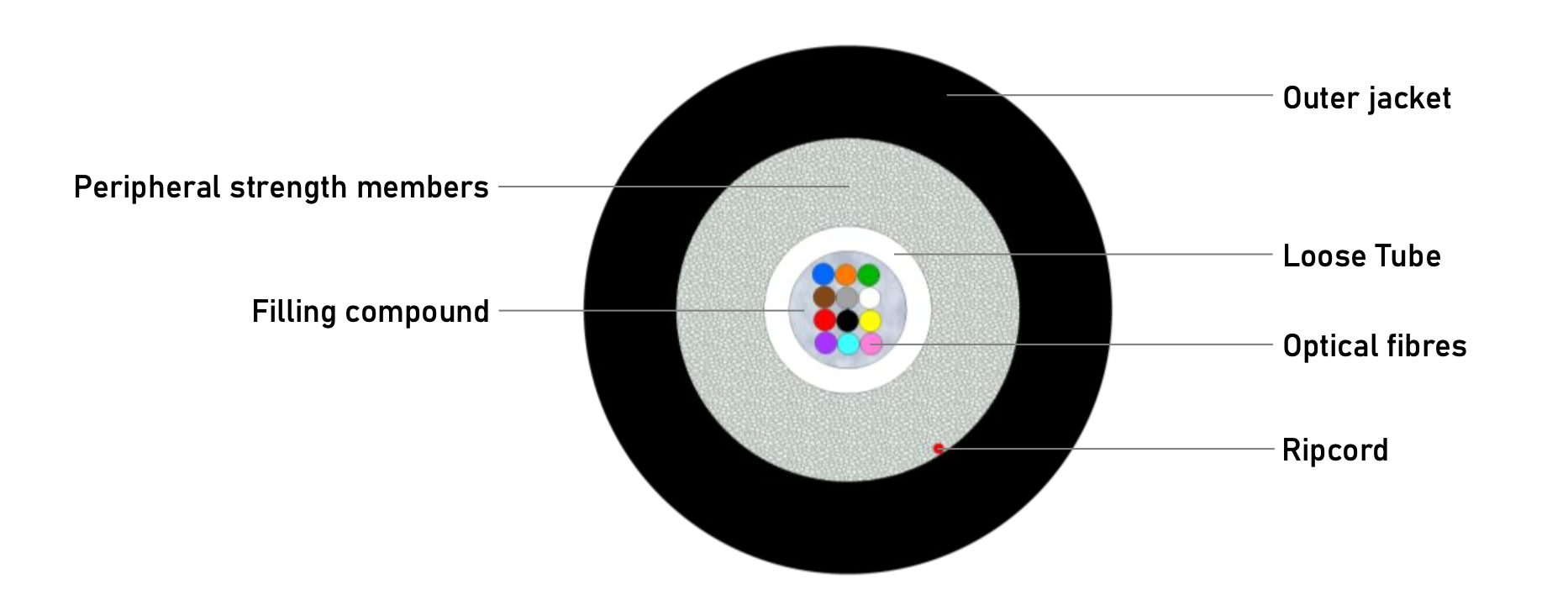

| Fibre count | up to 12 |
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM2+, OM3, OM4, OM5 |
| Fibre colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Tube | Gel-PBT buffer tube |
| Tube diameter | 2.0 mm |
| Tube colour | Natural / White |
| Filling compound | Low-viscosity filling gel |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Outer jacket thickness | 1.1 mm |
| Cable outer diameter | 6.3 mm |
| Cable Weight (calc.) | 42 kg/km |
| Max. Tensile Loading-Short Term | 2500 N |
| Max. Tensile Loading-Long Term | 800 N |
| Max. compressive loading | 2000 N/100mm |
| Max. Impact loading | 10 Nm |
| Min. bend radius-not load | 10 x OD |
| Min. bend radius-load | 20 x OD |
| Operating temperature range | -20 °C to +70 °C |
| Storage temperature range | -40 °C to +70 °C |
| Installation temperature range | -15 °C to +50 °C |
| Water tightness | No water detected on free end |
| Class of fire reaction | Eca |
| Fibre Count | Cable Code (Ordering Code) |
| 2 | OPK-U-CTFR-2(1x2.0)LTGGH-xx-yy |
| 4 | OPK-U-CTFR-4(1x2.0)LTGGH-xx-yy |
| 6 | OPK-U-CTFR-6(1x2.0)LTGGH-xx-yy |
| 8 | OPK-U-CTFR-8(1x2.0)LTGGH-xx-yy |
| 12 | OPK-U-CTFR-12(1x2.0)LTGGH-xx-yy |
xx – fiber type , yy– jacket color (see Cable code datasheet)
0213_OPK-U-CTFR-12(1x2.0)LTGGH
