Durable dielectric fiber optic cable with a higher level of protection against rodents for external or internal installation into ducts or on grids

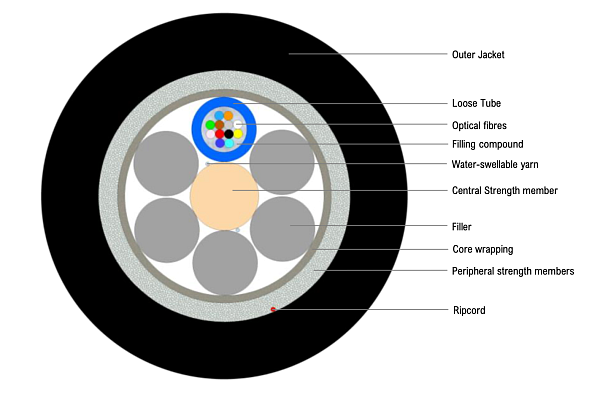

Universal glass yarn armoured Multitube Cable 12F (NC)
Durable all-dielectric fiber optic cable with enhanced rodent protection for indoor or outdoor installs—in ducts or on cable grids.
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM3, OM4 |
| Fibre colour | EIA/TIA-598A |
| Tube colour | EIA/TIA-598A |
| Central strength member | FRP rod (coated if necessary) |
| Core wrapping | Water-swellable tape |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket material | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Number of fibres | 12 | 24 | 48 | 72 | 96 | 144 |
| Number of fibres in tube | 12 | 12 | 12 | 12 | 12 | 12 |
| Tube count (layers) | 1 | 2 | 4 | 6 | 8 | 12 |
| Filler count | 5 | 4 | 2 | 0 | 0 | 0 |
| Nominal outer diameter (mm) | 9.4 | 9.4 | 9.4 | 9.4 | 10.4 | 12.4 |
| Outer jacket thickness (mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Calc. cable weight (kg/km) | 91 | 92 | 94 | 95 | 115 | 167 |
| Short-term tensile strength (N) | 3300 | 3300 | 3300 | 3300 | 6400 | 9000 |
| Long-term tensile strength (N) | 1000 | 1000 | 1000 | 1000 | 2000 | 2700 |
| Short-term crush resistance (N/100 mm) | 2500 | IEC 60794-1-103 |
| Long-term crush resistance (N/100 mm) | 750 | IEC 60794-1-103 |
| Max. impact loading (Nm) | 10 | IEC 60794-1-104 |
| Min. bend radius not load (OD) | 15 | IEC 60794-1-111 |
| Min. bend radius load (OD) | 10 | IEC 60794-1-111 |
| Operating temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Installation temperature range (°C) | -15 to +50 | IEC 60794-1-201 |
| Water tightness (1 m / 24 hrs.) | No leakage | IEC 60794-1-205 |
| Class of fire reaction | Fca | EN 50575, EN 13501-6 |
0221_Universal Glass Yarn Armoured Multitube Cable 12-144F (NC)
