Indoor/Outdoor fiber optic cable for installing into ducts or on grids

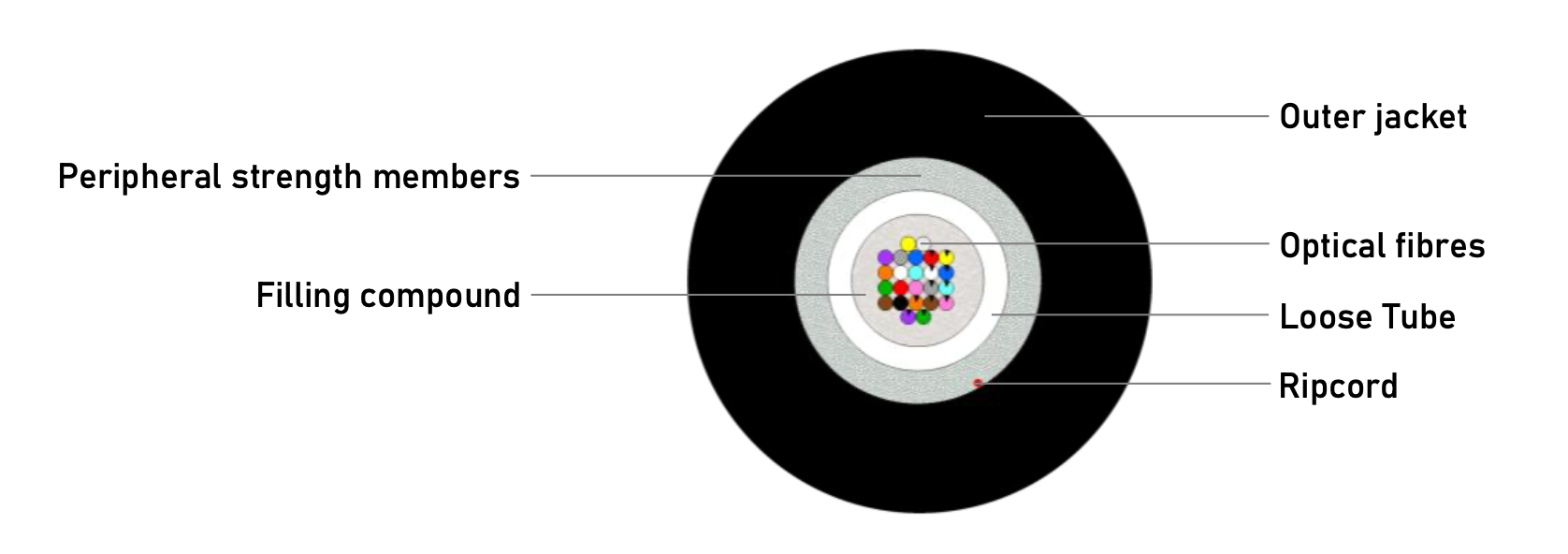

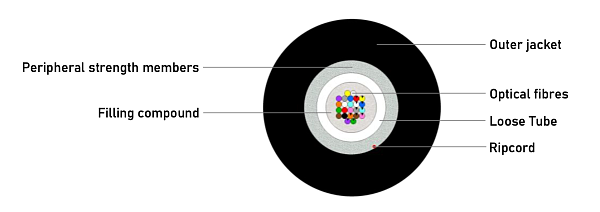

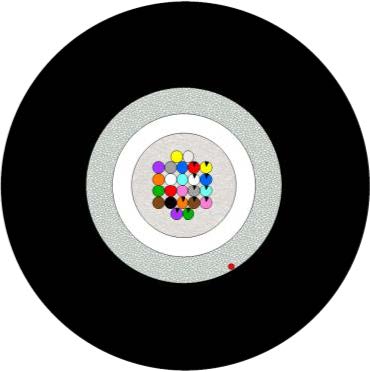

Universal glass yarn protected Unitube Cable (GC) 950N
Indoor/Outdoor fiber optic cable for clean installation in ducts or on cable grids.
| Fibre count | 2 – 24 |
| Fibre Type | G.652.D, G.657.A1, G.657.A2, G.655, OM1, OM2, OM2+, OM3, OM4, OM5 |
| Fibre colour 1-12 | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Fibre colour 13-24 | BlueBS, OrangeBS, GreenBS, BrownBS, GreyBS, WhiteBS, RedBS, Natural, YellowBS, VioletBS, PinkBS, AquaBS |
| Tube | PBT buffer tube |
| Tube diameter | 3.0 mm |
| Tube colour | Natural / White |
| Filling compound | Low-viscosity filling gel |
| Peripheral strength members | Water-swellable glass yarns |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Outer jacket thickness | 1.2 mm |
| Cable outer diameter | 6.0 mm |
| Cable Weight (calc.) | 41 kg/km |
| Max. Tensile Loading (Short Term) | 950 N |
| Max. Tensile Loading (Long Term) | 300 N |
| Max. compressive loading | 1000 N/100 mm |
| Max. Impact loading | 10 Nm |
| Min. bend radius not load | 10 x OD |
| Min. bend radius load | 20 X OD |
| Operating temperature range | -20°C to +60°C |
| Storage temperature range | -40°C to +60°C |
| Installation temperature range | -15°C to +50°C |
| Class of fire reaction | Eca |
| Fibre Count | Cable Code (Ordering Code) |
| 2 | OPK-U-CTFS-2(1x3.0)LTGH-xx-BK |
| 4 | OPK-U-CTFS-4(1x3.0)LTGH-xx-BK |
| 6 | OPK-U-CTFS-6(1x3.0)LTGH-xx-BK |
| 8 | OPK-U-CTFS-8(1x3.0)LTGH-xx-BK |
| 12 | OPK-U-CTFS-12(1x3.0)LTGH-xx-BK |
| 16 | OPK-U-CTFS-16(1x3.0)LTGH-xx-BK |
| 24 | OPK-U-CTFS-24(1x3.0)LTGH-xx-BK |
xx– fiber type ( see Cable code datasheet )
0292_OPK-U-CTFS-24(1x3.0)LTGH
