The M40-V85-QP-SR4-XX-D is designed to operate over multi-mode fiber system using 4x10G channels in 850 nm. It is compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4. The optical transmitter portion of the transceiver incorporates a 4-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, a 4-channel input buffer and laser driver, diagnostic monitors, control and bias blocks. For module control, the control interface incorporates a two wire serial interface of clock and data signals.

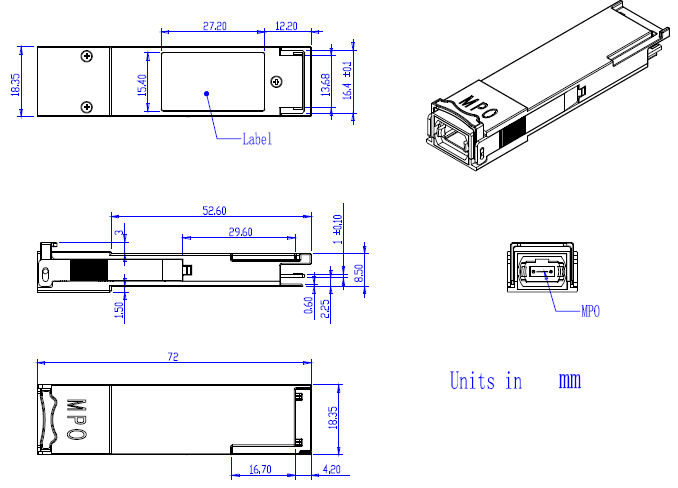

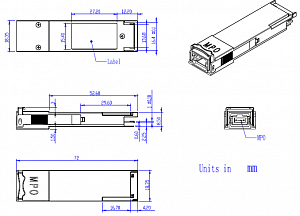

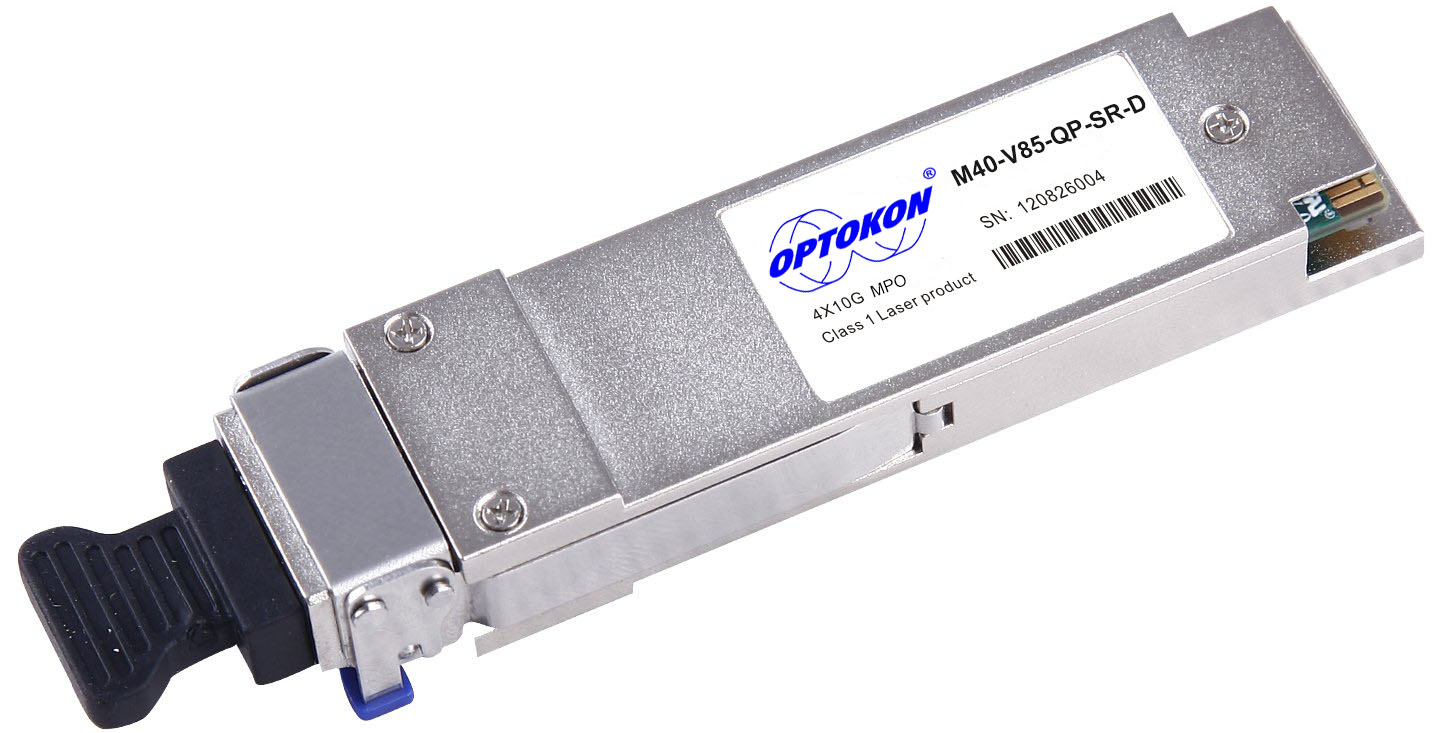

QSFP+ Transceiver M40-V85-QP-SR4-XX-D
- High Channel Capacity: 40 Gbps per module
- Up to 11.1Gbps Data rate per channel
- Maximum link length of 100m links on OM3
- Maximum link length of 150m links on OM4
- High Reliability 850nm VCSEL technology
- Electrically hot-pluggable
- Digital diagnostic SFF-8436 compliant
- Compliant with QSFP+ MSA with MPO/MTP connector
- Case operating temperature range:0 °C to 70 °C
- Power dissipation < 0.7 W
Optical characteristic:
|
|
Unit |
Type 02 |
Type 03 |
|
Optical Wavelength (min – center -max) |
nm |
840 – 850 – 860 |
|
|
Average output power per line (min / max) |
dBm |
-7.6 / 0.5 |
- 7.6 / 1 |
|
Average lunch power off per line (max) |
dBm |
-30 |
-30 |
|
Output Eye Mask |
|
Compliant with IEEE802.3ba |
|
|
Optical Extinction ratio |
dB |
3 |
3 |
|
Receiver sensitivity per lane |
dBm |
-9.5 |
-9.9 |
|
Overload |
dBm |
2.4 |
2.4 |
|
Maximum distance |
m |
150 |
400 |
|
Fiber type |
- |
MMF |
MMF |
|
Data rate (Each line) |
Gbps |
10.3125 |
10.3125 |
|
Optical link budget |
dBm |
1.9 |
2.3 |
- 40G Ethernet
- Infiniband QDR
- Fiber channel
ACT_10-14_EN-M40-V85-QP-SR-D
