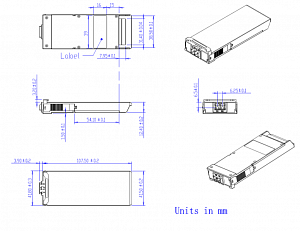

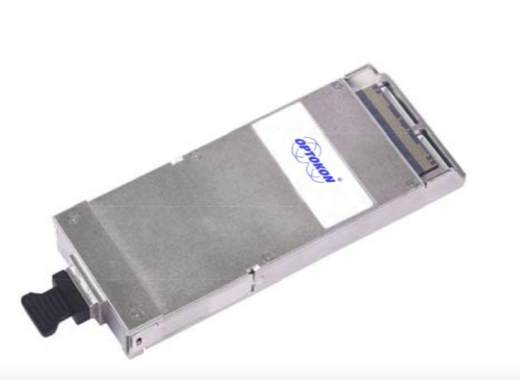

OPTOKON CFP2 transceivers is designed for high speed communica¬tion applications that requiring rates of from 103.125 to 111.81 Gbps. The transceiver converts 4 inputs channel of 25.78 to 27.95 Gbps electrical data to 4 CWDM optical signals, and multiplexes them into a single channel through an industry standard LC connector. CFP2 transceiver has the Digital Diagnostic Monitor Feature.

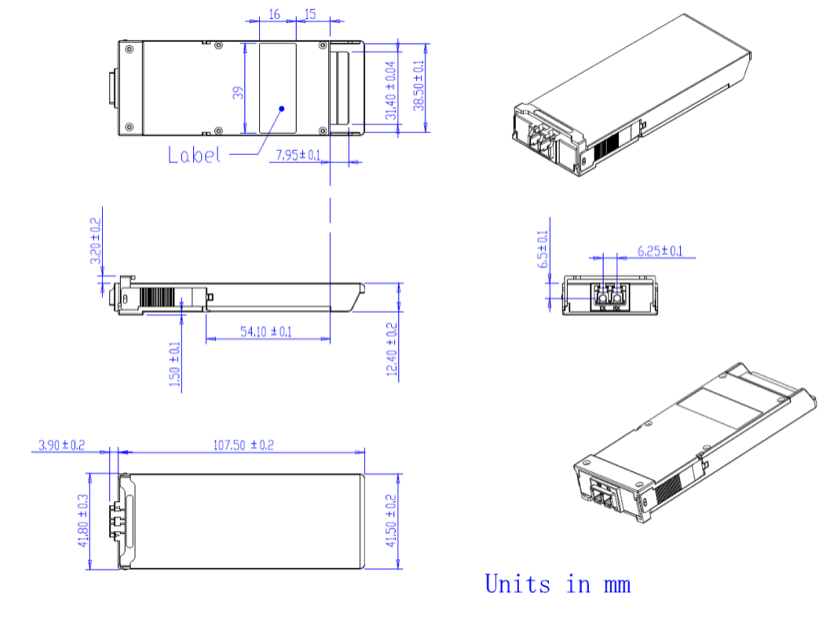

CFP2 Transceivers – 100 Gbps LR4
- Compliant with 100GBASE-LR4
- Support line rates from 103.125 Gbps to 111.81 Gbps
- Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF
- Digital Diagnostics Monitoring Interface (DDM/DOM)
- Duplex LC optical receptacle
- No external reference clock
- Single 3.3 V power supply
- Case operating temperature range: 0°C to 70°C
- Power dissipation < 6W
- CWDM-1296 nm, 1300nm, 1305nm and 1309 nm
Optical characteristics:
Transmitter:
|
Parameter: |
Min |
Typ. |
Max |
Unit |
|
Signaling rate, each lane |
|
25.78125 |
|
Gbps |
|
Lane wavelength (range) |
1294.53 |
1295.56 |
1296.59 |
nm |
|
1299.02 |
1300.05 |
1301.09 |
nm |
|
|
1303.54 |
1304.58 |
1305.63 |
nm |
|
|
1308.09 |
1309.14 |
1310.19 |
Nm |
|
|
Total launch power |
|
|
10.5 |
dBm |
|
Average launch power, each lane |
-4.3 |
|
4.5 |
dBm |
|
Average launch power of OFF transmitter, each lane |
|
|
-30 |
dBm |
Receiver:
|
Parameter: |
Min |
Typ. |
Max |
Unit |
|
Average receive power, each lane |
-10.6 |
|
4.5 |
dBm |
|
Receive power, each lane (OMA) |
|
|
4.5 |
dBm |
|
Receiver Sensitivity (OMA), each lane |
|
|
-6.8 |
dBm |
• Local Area Network (LAN)
• ITU-T OTU4
• Ethernet switches and router applications
ACT-08-16_EN-CFP2_100G_LR4_LC
