The cable is suitable for indoor or outdoor use. Cable is for a wide range of applications in FTTx networks.

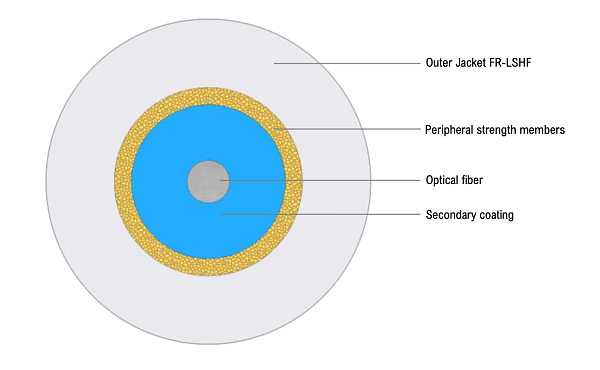

FTTx Drop Cable - mini
| Fibre Type | G.657.A1, G.657.A2, G.657.B3 |
| Fibre colour | Natural |
| Buffer colour | EIA/TIA-598A |
| Buffer material | UV curable acrylate. Under the outer layer is very thin layer of gel for the better stripability |
| Peripheral strength members | Water-swellable Aramid yarn |
| Outer jacket material | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Number of fibres | 1 | |
| Tube count (layers) | 1 | |
| Buffer diameter | 0.9 | |
| Nominal outer diameter (mm) | 1.9 ± 0.2 | |
| Outer jacket thickness (mm) | 0.4 | |
| Calc. cable weight (kg/km) | 4.1 | |
| Short-term tensile strength (N) | 150 | IEC 60794-1-101 |
| Short-term crush resistance (N/100 mm) | 500 | IEC 60794-1-103 |
| Max. impact loading (Nm) | 1 | IEC 60794-1-104 |
| Min. bend radius not load (OD) | 5 | IEC 60794-1-111 |
| Operating temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Installation temperature range (°C) | + 5 to +50 | IEC 60794-1-201 |
| Water tightness (1 m / 24 hrs.) | No leakage | IEC 60794-1-205 |
| Class of fire reaction | Eca | EN 50575, EN 13501-6 |
0024_FTTx Drop Cable-mini
