FTTx Universal Drop Cable

FTTx Universal Drop Cable

Universal cable for plenum and riser FTTx application, suitable for use as self-supporting cable

  • Features
  • Specifications
  • Application
  • Documents
Fibre Type G.657.A1, G.657.A2, OM2, OM3, OM4, OM5
Fibre colour 1-12 Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua
Fibre colour 13-24 BlueBS, OrangeBS, GreenBS, BrownBS, GreyBS, WhiteBS, RedBS, Natural, YellowBS, VioletBS, PinkBS, AquaBS

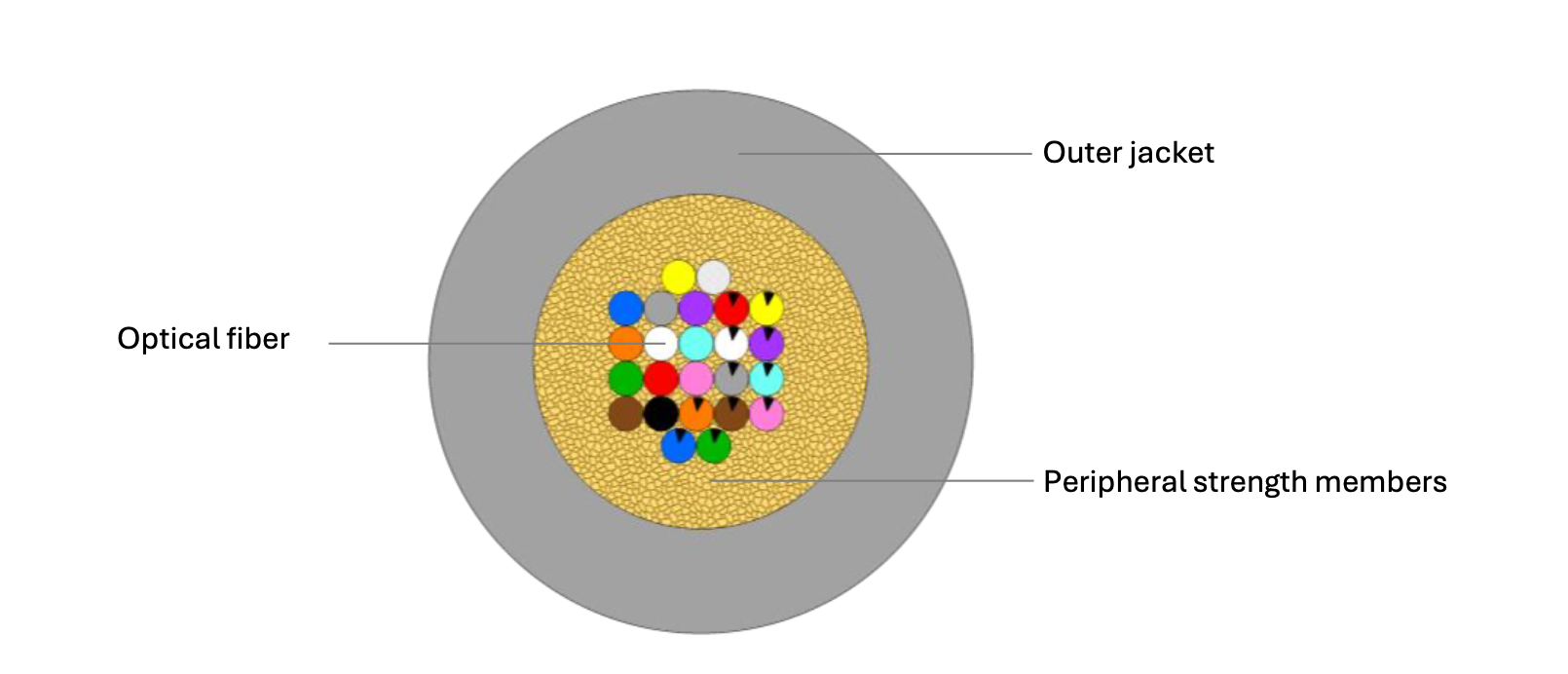

Peripheral strength members Water-swellable Aramid yarns
Outer jacket material UV resistant Halogen-free flame-retardant thermoplastic compound




Number of fibres 2 4 6 8 12 16 24
Nominal outer diameter (mm)  2.8 3.0 3.0 3.0 3.2 3.6 3.9
Calc. cable weight (kg/km) 8.5 9.3 9.5 9.7 10.5 12.0 13.6
Tensile strength (N)  1000 1000 1000 1000 1000 1000 1000 IEC 60794-1-101*
Crush resistance (N/100 mm) 1000 IEC 60794-1-103
Max. impact loading (Nm) 2 IEC 60794-1-104
Min. bend radius not load (OD) 10 IEC 60794-1-111
Operating temperature range (°C) -20 to +60 IEC 60794-1-201
Storage temperature range (°C) -40 to +70  IEC 60794-1-201
Installation temperature range (°C) -5 to +50  IEC 60794-1-201
Water tightness (1 m / 24 hrs.)  No leakage IEC 60794-1-205
Class of fire reaction Fca EN 50575, EN 13501-6

*Tested with Telenco Mini-@ and @46TW clamps



Number of Fibers Cable Code (Ordering Code)
2 OPK-U-DRP-2(2×0.25)FFAH-xx-yy
4  OPK-U-DRP-4(4×0.25)FFAH-xx-yy
6 OPK-U-DRP-6(6×0.25)FFAH-xx-yy
8 8 OPK-U-DRP-8(8×0.25)FFAH-xx-yy
12 OPK-U-DRP-12(12×0.25)FFAH-xx-yy
16 OPK-U-DRP-16(16×0.25)FFAH-xx-yy
24 OPK-U-DRP-24(24×0.25)FFAH-xx-yy

xx– fibre type yy – jacket colour (see Cable code datasheet)



Installation Sag Installation Tension 1-12F Installation Tension 16-24F Load level (NESC) Span 2-12F Span 16-24F
1.5% 66N 87N Light 70m 70m
1.5% 50N 50N Medium 50m 40M
1.5% 30N 25N Heavy 40m 20m
3% 33N 44N Light 70m 70m
3% 30N 28N Medium 60m 45m
3% 20N 16N Heavy 40m 25m
