Easy-strippable Access Cable for indoor or outdoor aerial installation.

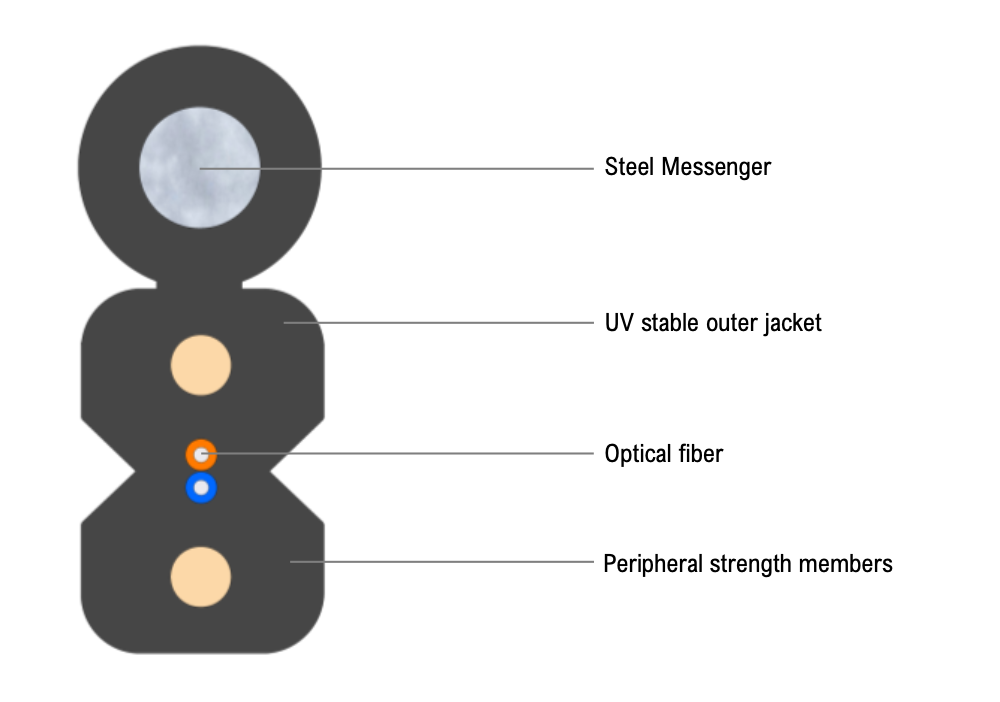

FTTx Flat Aerial Drop Cable
| Fibre Type | G.657.A1, G.657.A2 |
| Fibre colour | EIA/TIA-598A |
| Peripheral strength member | FRP rod (coated if necessary) |
| Messenger | Steel Wire |
| Outer jacket material | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Outer jacket colour | Black |
| Number of fibres | 1 | 2 | |
| Number of members | 1 | 2 | |
| Diameter of member | 0.25 | ||
| Nominal outer diameter (mm) | 2.0x5.0 | ||
| Calc. cable weight (kg/km) | 17.5 | ||
| Short-term tensile strength (N) | 600 | IEC 60794-1-101 | |
| Short-term crush resistance (N/100 mm) | 2000 | IEC 60794-1-103 | |
| Max. impact loading (Nm) | 1 | IEC 60794-1-104 | |
| Min. bend radius (without steel wire) | 15 | IEC 60794-1-111 | |
| Operating temperature range (°C) | -30 to +60 | IEC 60794-1-201 | |
| Storage temperature range (°C) | -30 to +60 | IEC 60794-1-201 | |
| Installation temperature range (°C) | - 5 to +50 | IEC 60794-1-201 | |
| Class of fire reaction | Fca | EN 50575, EN 13501-6 | |
0206_FTTx Flat Aerial Drop Cable
