The S40-QP-LR4-XX-D is designed to operate over single-mode fiber system using 4x10G CWDM channel in 1310 band and links up to 30 km. The module converts 4 inputs channel of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40 Gbps input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

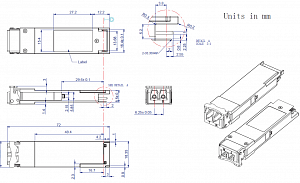

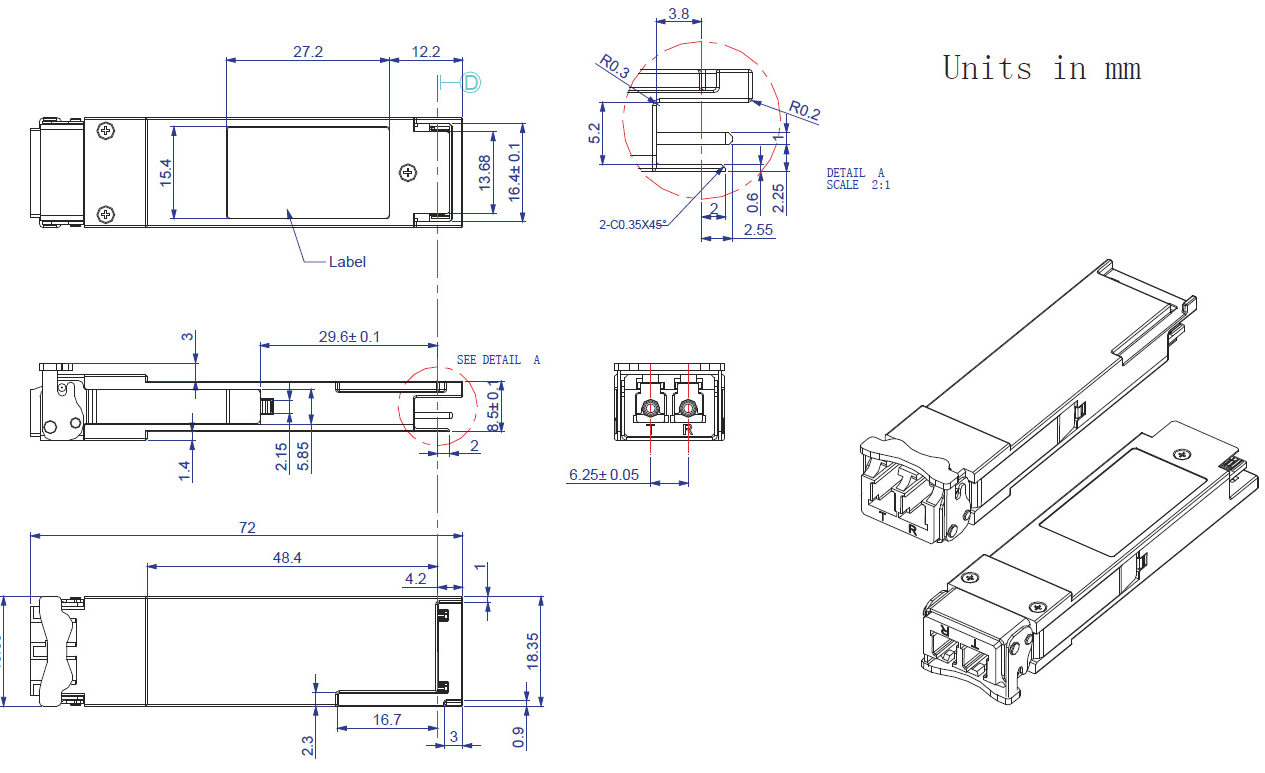

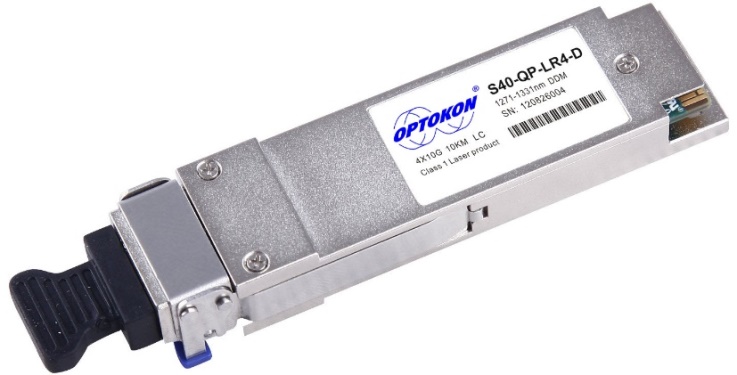

QSFP+ CWDM Transceivers S40-QP-LR4-XX-D
- High Channel Capacity: 40 Gbps per module
- CWDM 1271, 1291, 1311, 1331 nm wavelengths
- Up to 11.1Gbps Data rate per channel
- Link length of 2, 10, 20 and 30 km
- Electrically hot-pluggable
- Digital diagnostic Monitoring interface
- Compliant with QSFP+ MSA with LC connector
- Case operating temperature range: 0°C to 70°C
- Power dissipation < 2.5 W (3,5 W for 30 km distance)
|
|
Unit |
02 |
10 |
20 |
30 |
|
Optical Wavelength (min – center -max) |
nm |
λ0 = 1264.5 – 1271 – 1277.5 Λ1 = 1284.5 – 1291 – 1297.5 Λ2 = 1304.5 – 1311 – 1217.5 Λ3 = 1324.5 – 1331 – 1237.5 |
|||
|
Total output power |
dBm |
8.3 |
8.3 |
8.3 |
8.3 |
|
Average output power per line (min / max) |
dBm |
-7 / 0 |
- 7 / 2.3 |
- 7 / 2.3 |
-2 / 2.3 |
|
Average lunch power off per line |
dBm |
-30 |
-30 |
-30 |
-30 |
|
Output Eye Mask |
|
Compliant with IEEE802.3ba |
|||
|
Optical Extinction ratio |
dB |
3.5 |
3.5 |
3.5 |
3.5 |
|
Receiver sensitivity per lane |
dBm |
-11.5 |
-11.5 |
-11.5 |
-12 |
|
Overload |
dBm |
0 |
2.3 |
3.4 |
2.3 |
|
Maximum distance |
km |
2 |
10 |
20 |
30 |
|
Fiber type |
- |
SMF |
SMF |
SMF |
SMF |
|
Optical link budget |
dBm |
4.5 |
4.5 |
4.5 |
10 |
- 40G Ethernet
- Infiniband QDR
- Fiber Channel
ACT_10-15_EN-S40-QP-LR4
