Universal cable for horizontal and vertical installation in buildings and for outdoor applications in FTTx networks
Round Drop Cable

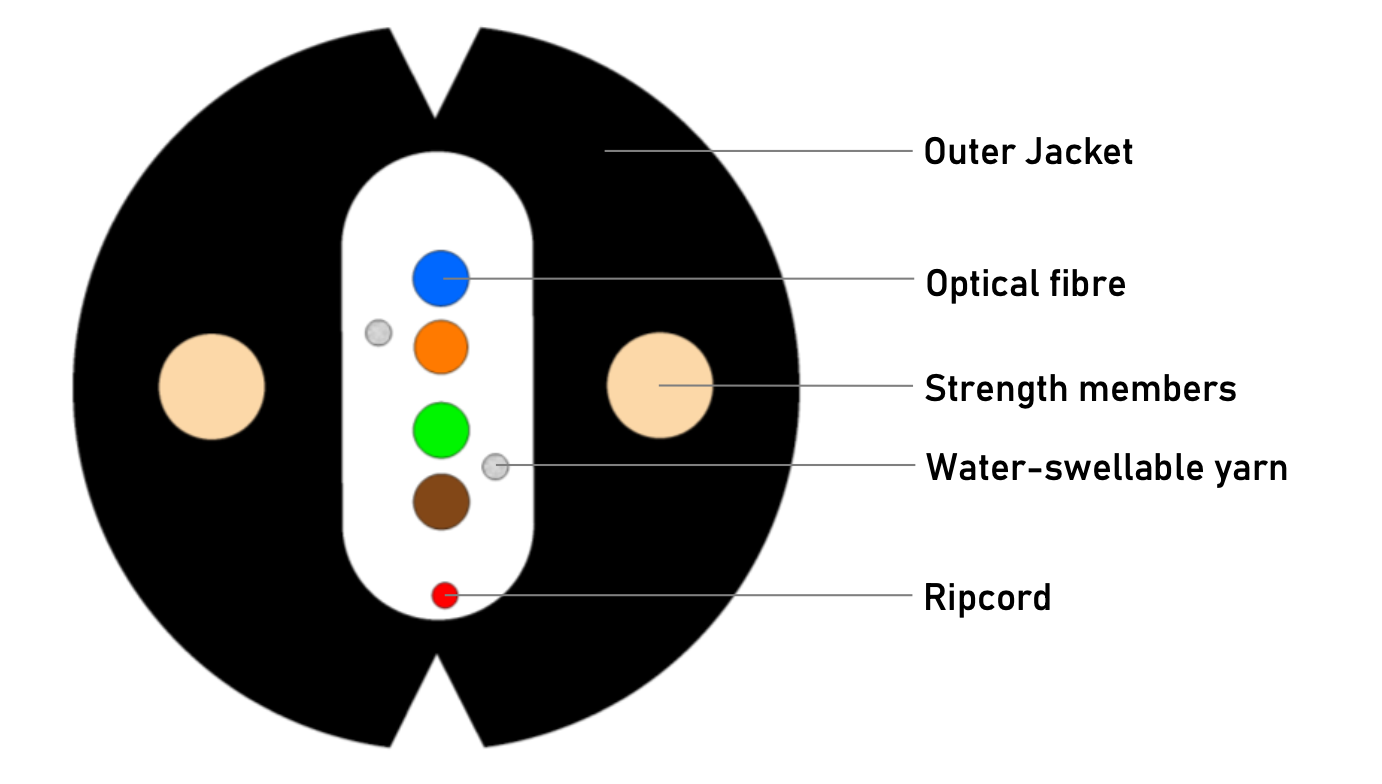

| Fibre Type | G.657.A1, G.657.A2 |
| Fibre colour | EIA/TIA-598A |
| Strength member | FRP rod (coated if necessary) |
| Water protection | Water-swellable yarn |
| Ripcord | 1x under outer jacket |
| Outer jacket material | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Number of fibres | 4 | |
| Number of members | 4 | |
| Diameter of member | 0.25 | |
| Nominal outer diameter (mm) | 3.4 ± 0.2 | |
| Calc. cable weight (kg/km) | 11 | |
| Short-term tensile strength (N) | 80 | IEC 60794-1-101 |
| Long-term tensile strength (N) | 30 | IEC 60794-1-101 |
| Short-term crush resistance (N/100 mm) | 500 | IEC 60794-1-103 |
| Max. impact loading (Nm) | 1 | IEC 60794-1-104 |
| Min. bend radius not load (OD) | 10 | IEC 60794-1-111 |
| Min. bend radius load (OD) | 20 | IEC 60794-1-111 |
| Operating temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 |
| Installation temperature range (°C) | - 5 to +60 | IEC 60794-1-201 |
| Water tightness (1 m / 24 hrs.) | No leakage | IEC 60794-1-205 |
| Class of fire reaction | Eca | EN 50575, EN 13501-6 |
0232_Round Drop Cable
