Lightweight Cable for indoor use in a wide range of applications in FTTx networks

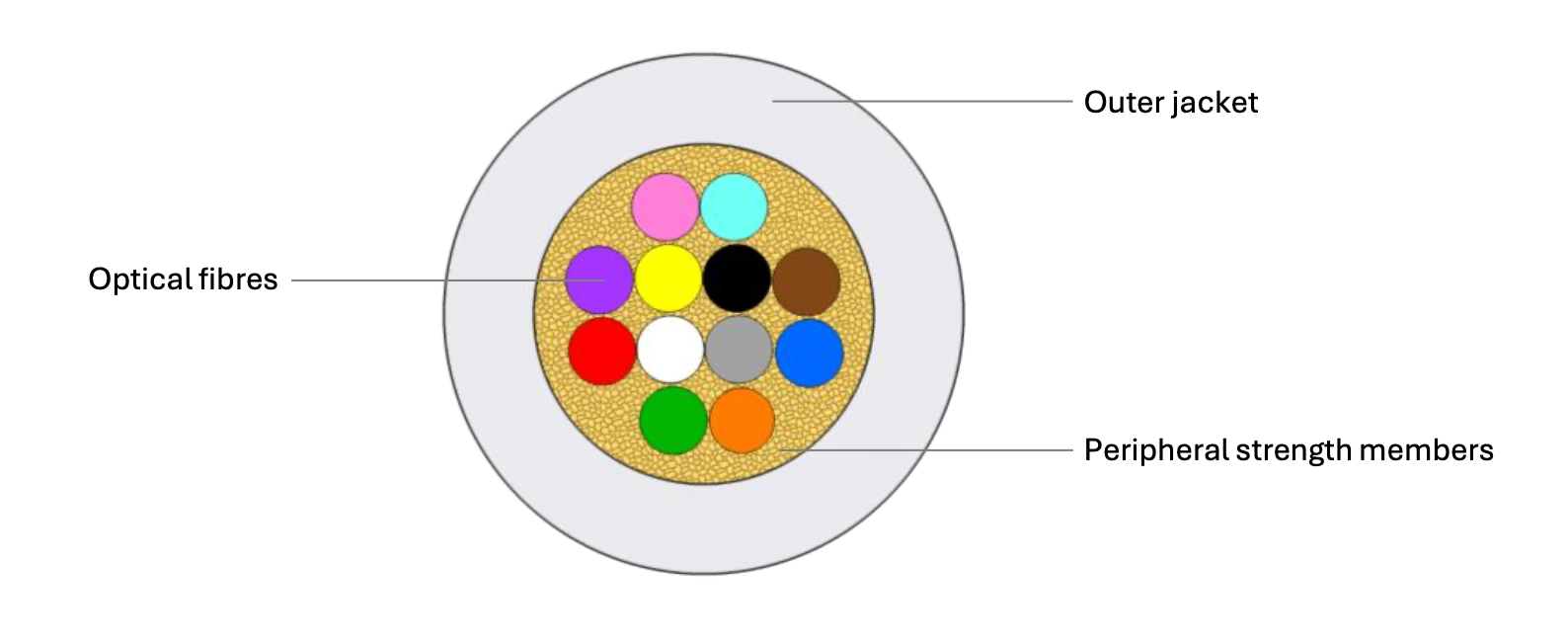

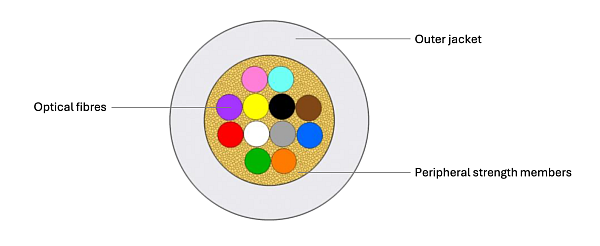

Indoor Drop CableOPK-I-DRPC0023-12(12x0.25)FFAH
| Fibre Type | G.657.B3 |
| Fibre colour | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua |
| Peripheral strength members | Aramid yarns |
| Outer jacket material | White Halogen free flame retardant thermoplastic compound |
| Outer jacket thickness | 0.35 mm |
| Number of fibres | 4 | 6 | 8 | 12 | |||||
| Nominal outer diameter (mm) | 2.0 | ||||||||
| Calc. cable weight (kg/km) | 3.8 | 4.0 | 4.1 | 4.4 | |||||
| Short-term tensile strength (N) | 50 | IEC 60794-1-101 | |||||||
| Long-term tensile strength (N) | 14 | IEC 60794-1-101 | |||||||
| Crush resistance (N/100 mm) | 10 | IEC 60794-1-103 | |||||||
| Operating temperature range (°C) | -20 to +60 | IEC 60794-1-201 | |||||||
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 | |||||||
| Installation temperature range (°C) | -15 to +50 | IEC 60794-1-201 | |||||||
| Water tightness (1 m / 24 hrs.) | No leakage | IEC 60794-1-205 | |||||||
| Class of fire reaction | Fca | EN 50575, EN 13501-6 | |||||||
| Number of Fibers | Cable Code (Ordering Code) |
|---|---|
| 4 | OPK-I-DRPC0023-4(4x0.25)FFAH-B3-WH |
| 6 | OPK-I-DRPC0023-6(6x0.25)FFAH-B3-WH |
| 8 | OPK-I-DRPC0023-8(8x0.25)FFAH-B3-WH |
| 12 | OPK-I-DRPC0023-12(12x0.25)FFAH-B3-WH |
0361_OPK-I-DRPC0023-12(12x0.25)FFAH
