Furcation Tubing adds protection where they are used 250 µm fibres
Furcation Tubing
| Tube colour | EIA/TIA-598A, Natural |
| Secondary coating material | Halogen-free flame-retardant thermoplastic compound |
| Strength members | Aramid yarns |
| Outer jacket material | Halogen-free flame-retardant thermoplastic compound |

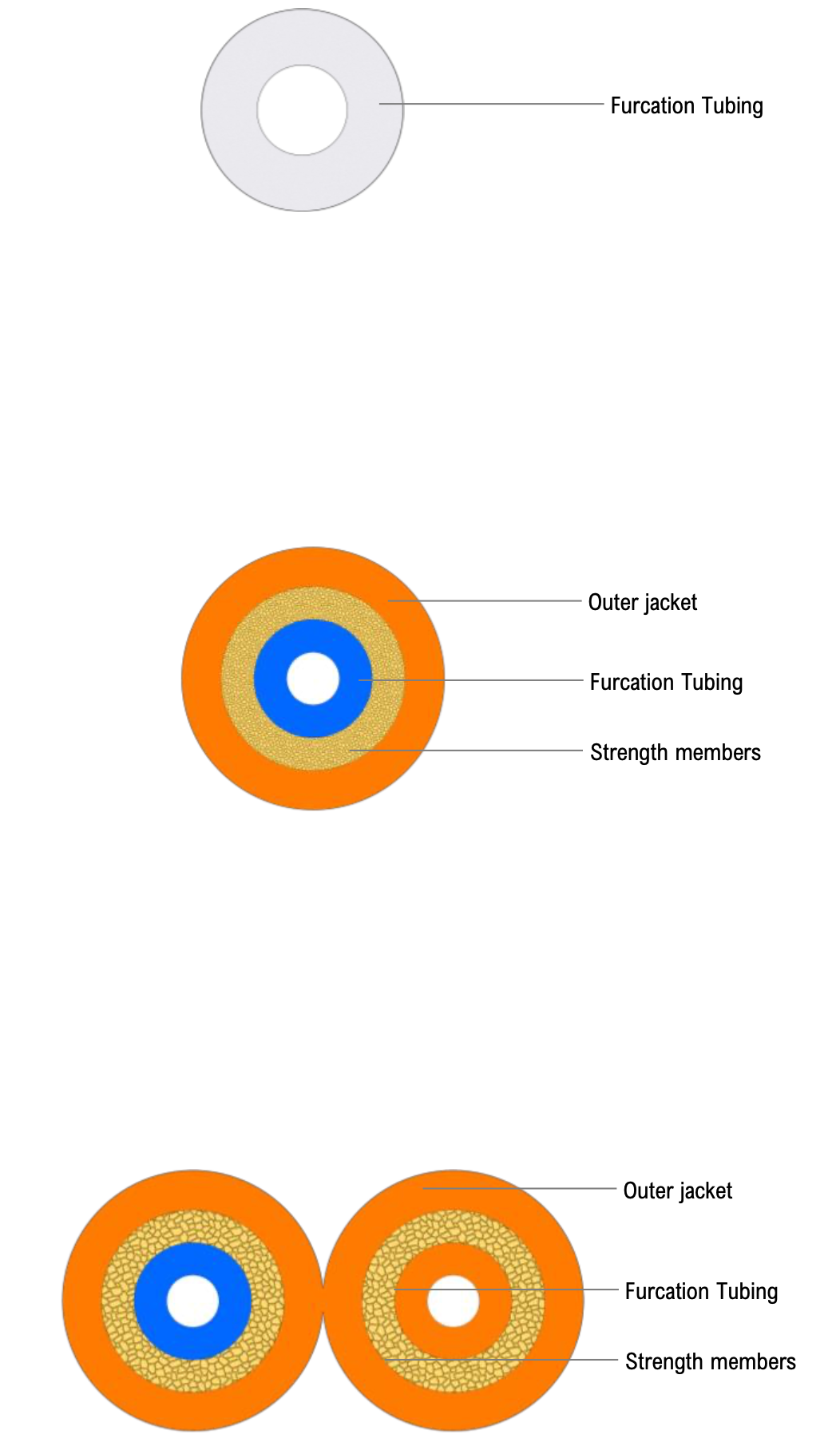

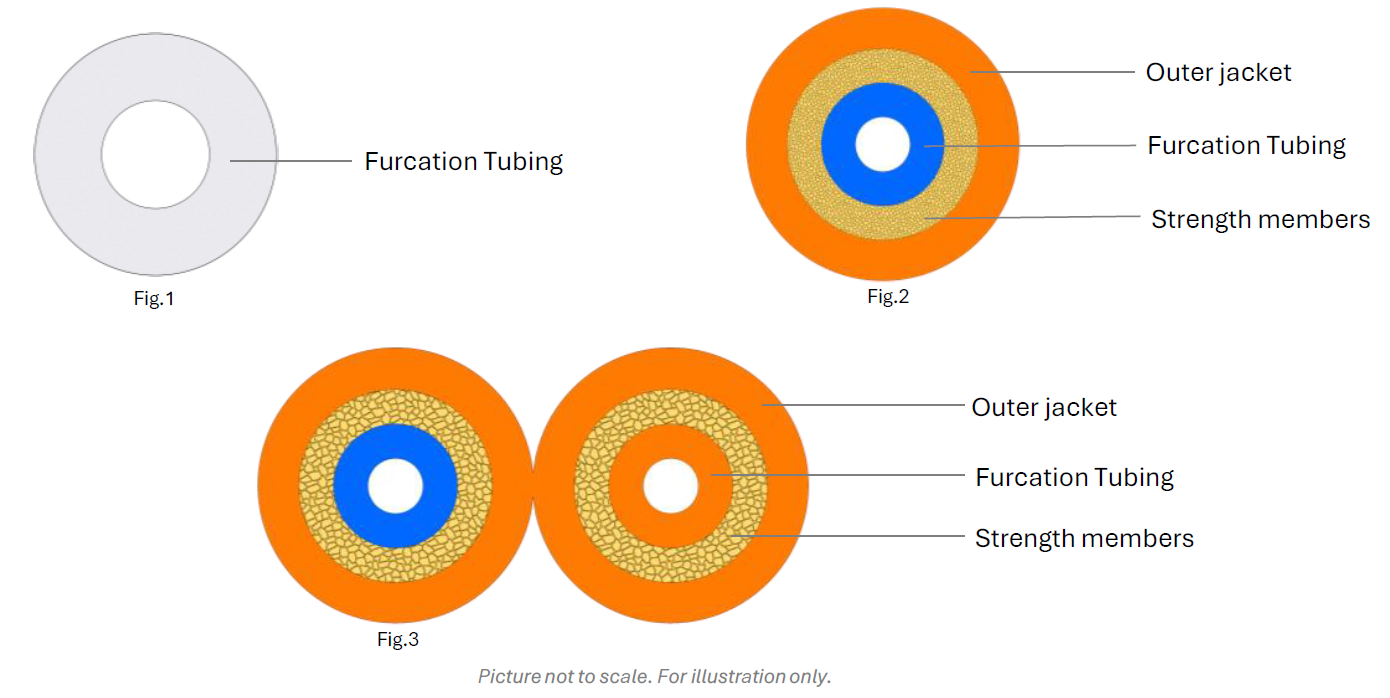

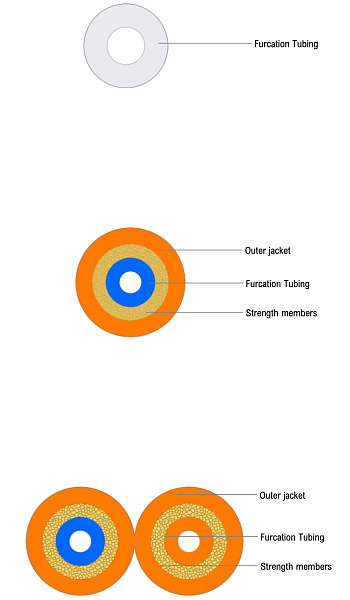

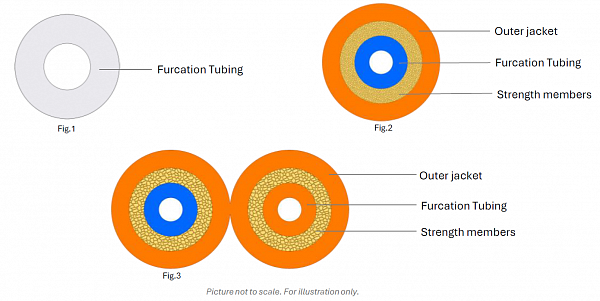

| Image description | Fig.1 | Fig.2 | Fig.3 | |
| Tube count (layers) | 1 | 1 | 2 | |
| Diameter of members in the cable (mm) | 0.9 | 0.9 | 0.9 | |
| Nominal outer diameter (mm) | 0.9 | 2.0 | 2.0x4.2 | |
| Calc. cable weight (kg/km) | 0.9 | 3.7 | 7.9 | |
| Short-term tensile strength (N) | - | 100 | 150 | IEC 60794-1-101 |
| Short-term crush resistance (N/100 mm, with fibre) | - | 100 | 100 | IEC 60794-1-103 |
| Min. bend radius not load (OD, with fibre) | 10 | IEC 60794-1-111 | ||
| Operating temperature range (°C) | -20 to +60 | IEC 60794-1-201 | ||
| Storage temperature range (°C) | -20 to +70 | IEC 60794-1-201 | ||
| Installation temperature range (°C) | -15 to +60 | IEC 60794-1-201 | ||
| Class of fire reaction | Fca | EN 50575, EN 13501-6 |
0204_Furcation Tubing
