Suitable for Indoor/Outdoor use . Cable is possible installing as connection between building or distribution boxes in duct or as riser cable in places where is required functionality in the fire

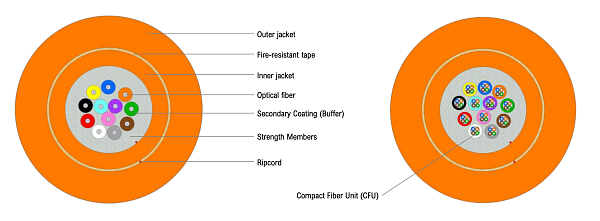

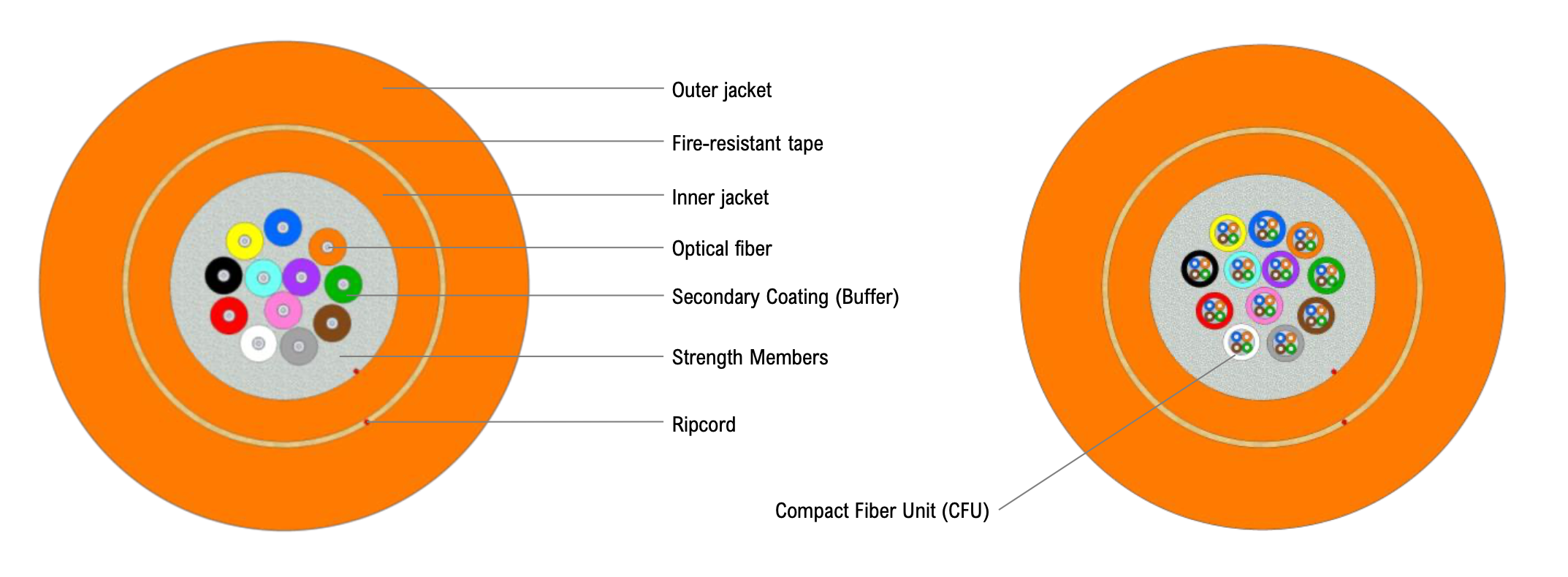

Fire Resistant Distribution Cable
| Fibre Type | G.657.A1, G.657.A2, OM1, OM2, OM3, OM4, OM5 |
| Fibre colour | EIA/TIA-598A , Natural |
| Buffer material | UV curable acrylate. Under the outer layer is very thin layer of gel for the better stripability |
| Buffer colour | EIA/TIA-598A |
| CFU material | UV curable acrylate. Under the outer layer is very thin layer of gel for the better stripability |
| CFU colour | EIA/TIA-598A |
| Strength members | Water-swellable glass yarns |
| Inner jacket material | Halogen-free flame-retardant thermoplastic compound |
| Inner jacket colour | EIA/TIA-598A |
| Ripcord | 2 ( 1x under inner jacket , 1x under outer jacket ) |
| Outer jacket material | UV resistant Halogen-free flame-retardant thermoplastic compound |
| Outer jacket colour | EIA/TIA-598A |
| Number of fibres | 4 | 6 | 8 | 12 | 16 | 24 | 48 | |
| Number of fibres in tube | 1 | 1 | 1 | 1 | 4 | 4 | 4 | |
| Tube count (layers) | 4 | 6 | 8 | 12 | 4 | 6 | 12 | |
| Construction cable | Buffer | Buffer | Buffer | Buffer | CFU | CFU | CFU | |
| Buffer diameter (mm) | 0.9 | 0.9 | 0.9 | 0.9 | - | - | - | |
| CFU diameter (mm) | - | - | - | - | 0.9 | 0.9 | 0.9 | |
| Cable outer diameter (mm) | 10.0 | 10.0 | 11.0 | 11.8 | 10.0 | 10.0 | 11.8 | |
| Inner jacket thickness (mm) | 1.0 | |||||||
| Outer jacket thickness (mm) | 2.0 | |||||||
| Calc. cable weight (kg/km) | 125 | 126 | 127 | 146 | 126 | 128 | 149 | |
| Short-term tensile strength (N) | 1000 | 1000 | 1300 | 2000 | 1000 | 1000 | 2000 | IEC 60794-1-101 |
| Short-term crush resistance (N/100 mm) | 2000 | IEC 60794-1-103 | ||||||
| Max. impact loading (Nm) | 5 | IEC 60794-1-104 | ||||||
| Min. bend radius not load (OD) | 10 | IEC 60794-1-111 | ||||||
| Operating temperature range (°C) | -40 to +70 | IEC 60794-1-201 | ||||||
| Storage temperature range (°C) | -40 to +70 | IEC 60794-1-201 | ||||||
| Installation temperature range (°C) | - 5 to +50 | IEC 60794-1-201 | ||||||
| Water tightness (1 m / 24 hrs.) | No leakage | IEC 60794-1-205 | ||||||
| Class of fire reaction | Eca | EN 50575, EN 13501-6 | ||||||
| Circuit integrity cable systems under fire conditions | P90-R |
0209_Fire Resistant Distribution Cable
