Special fiber optic cable for Acoustic Sensing System. Suitable for installation on the fence and directly into the ground.
Outdoor Sensitive Star Detection Cable
Special fiber-optic cable for acoustic sensing systems, suitable for mounting on fences or direct-to-ground installation to enable reliable, continuous perimeter monitoring.

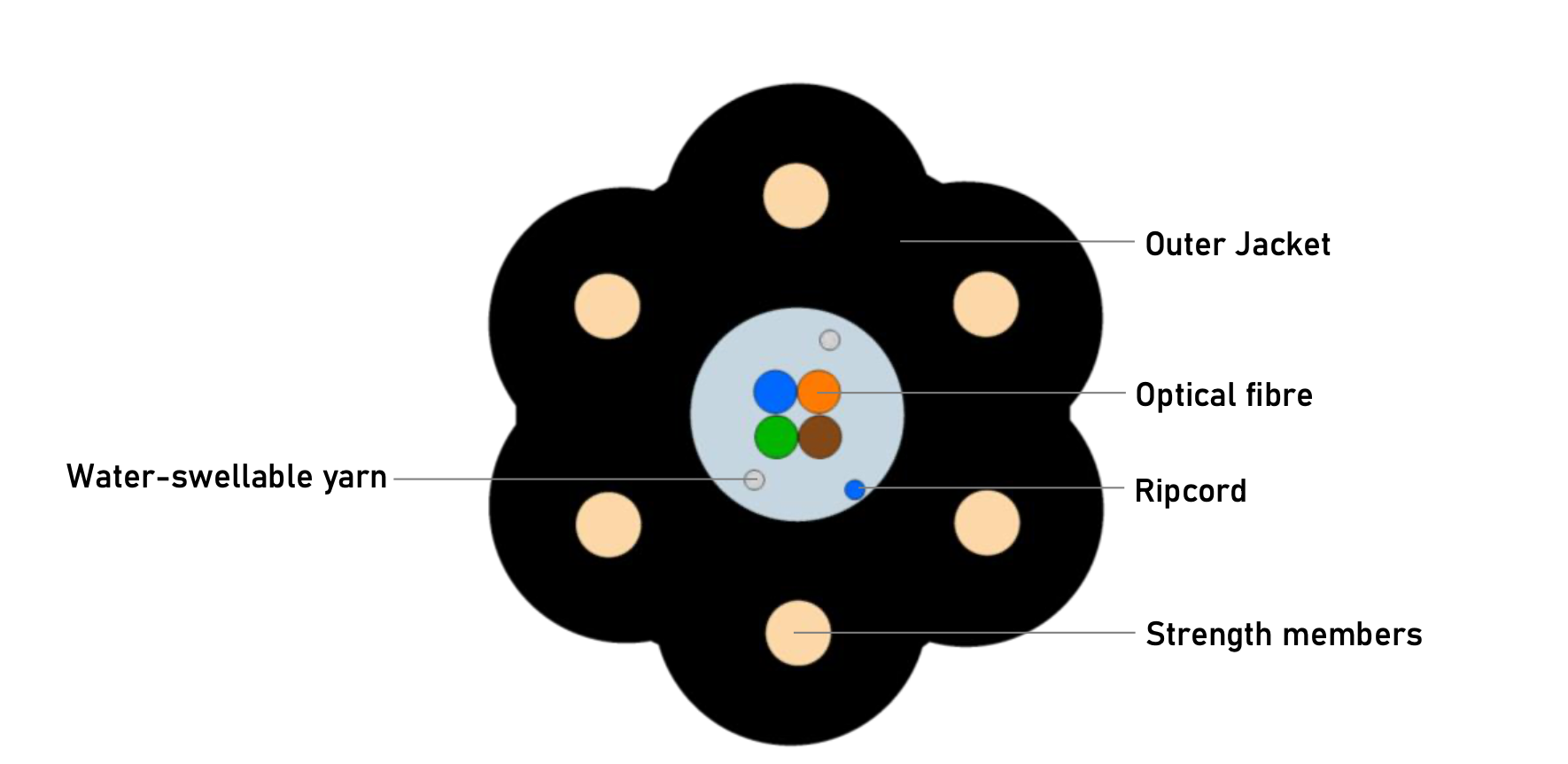

| Max. fiber count | 4 |
| Fiber Type | G.657.A1, G.657.A2 |
| Fiber colour | Blue, Orange, Green, Brown |
| Water protection | Water-swellable yarn |
| Strength members | FRP Rods |
| Ripcord | 1x under outer jacket |
| Outer jacket | UV resistant black HDPE with chemical protection against rodents and termites |
| Nominal outer diameter | 4.1 [mm] |
| Max. Tensile Loading (Short Term) | 200 [N] EN 60794-1-21-E1 |
| Max. Tensile Loading (Long Term) | 65 [N] EN 60794-1-21-E1 |
| Max. compressive loading | 1000 [N/100mm] EN 60794-1-21-E3 |
| Max. Impact loading | 5 [Nm ] EN 60794-1-21-E4 |
| Min. bend radius (not load) | 190 [mm] EN 60794-1-21-E11 |
| Min. bend radius (load) | 250 [mm] EN 60794-1-21-E11 |
| Operating temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Storage temperature range | -40 to +70 [°C] EN 60794-1-22-F1 |
| Installation temperature range | -15 to +50 [°C] EN 60794-1-22-F1 |
| Water tightness | No water detected on free end EN 60794-1-22-F5 |
| Cable Weight | 11 [kg/km] |
| Class of fire reaction | Fca EN 13501-6 |
| Attenuation @Wavelength | 1310 / 1550 [nm] |
| Typical Attenuation | 0.33 / 0.23 [dB/km] |
| Maximum Attenuation | 0.45 / 0.38 [dB/km] |
| Cable Code (Ordering Code) | |
| 2 Fibers | OPK-O-DRPC003-2(2x0.25)FFTP-xx-BK |
| 4 Fibers | OPK-O-DRPC003-4(4x0.25)FFTP-xx-BK |
xx – fiber type (see Cable code datasheet)
Applications Areas:
• Industrial, Residential and Commercial Sites Security Military, Public and Private Facilities Security Airports, Railways and Highways Security
• Power Plants Security
• Border Security
• Security of Mining Enterprises
0280_OPK-O-DRPC003-4(4x0.25)FFTP
