OPTOKON 100G QSFP28 SR4 transceivers is designed for high speed communication applications that requiring rates of from 103.125 to 111.81 Gbps. The optical transmitter portion of the transceiver incorporates a 4-channel VCSEL 850 nm over multimode fiber.

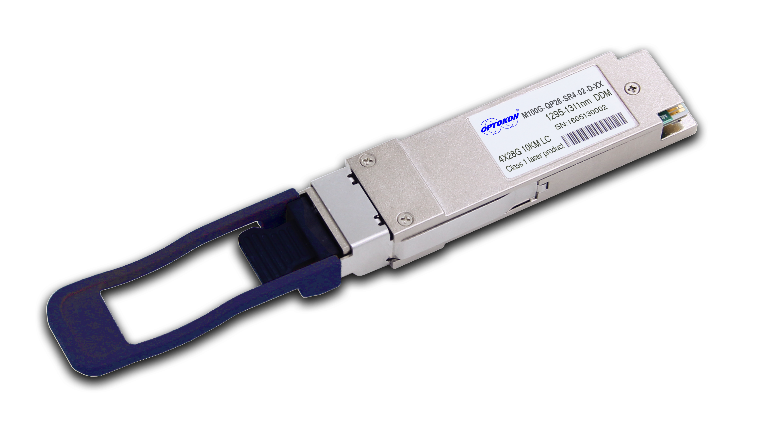

QSFP28 SR4 100 Gbps Rate Transceiver, 150m on MM OM4
- Compliant with QSFP28 MSA
- Up to 27,952 Gbps data rate per channel
- Electrically hot-pluggable
- Power dissipation < 2.0W
- Digital diagnostic SFF-8636 compliant
- High Reliability 850nm VCSEL technology
- Maximum link of 150m on OM4
Optical characteristics:
|
Parameter: |
Min |
Typ. |
Max |
Unit |
|
Average output power per line (min / max) |
-8.4 |
|
2.4 |
dBm |
|
Optical Wavelength (min – center -max) |
840 |
850 |
860 |
Nm |
|
Output Eye Mask |
Compliant with IEEE 802.3bm |
|||
|
Optical Extinction ratio |
2 |
|
|
ER |
|
Receiver sensitivity per lane |
|
|
-10.3 |
RSENS |
|
Overload |
2.4 |
|
|
Psat |
|
Maximum distance |
0.150 |
|
|
|
|
Fiber type |
|
MMF |
|
|
|
Optical link budget |
|
1.9 |
|
|
- Data Center and 100G Ethernet & 100GBASE-SR4
- ITU-T OTU4
ACT_10-17_EN-QSFP28_100G_SR4
