The S100G-QP28-DAC QSFP28 passive cable assembly products, based 4x 28G structure, the product can well satisfy the next generation 100G switches, servers, routers and other products of application requirements. The S100G-QP28-DAC Direct Attach Cables are compliant with the SFF-8665 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 5m).

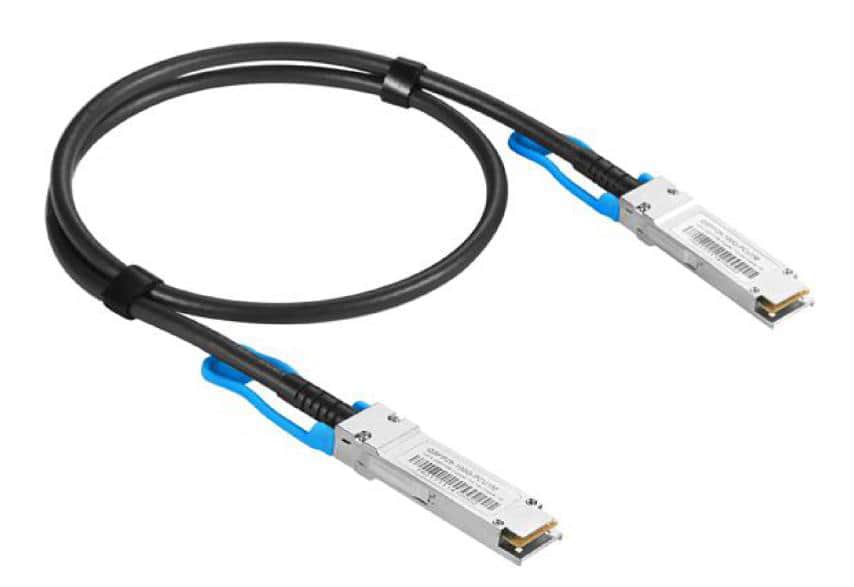

S100G-QP28-DAC 100G QSFP28 Direct Attach Passive Copper Cable
- Compliant with SFF-8665
- Up to 28.3125Gbps data rate per channel
- Up to 5m transmission
- Operating temperature 0 - 70°C
- Low Crosstalk
- RoHS compliant
- Cost-effective copper solution
- Lowest total system power solution
- Lowest total system EMI solution
- Optimized design for Signal Integrity
| QSFP+ DAC Specifications | |
|---|---|
| Number of Lanes | Tx & Rx |
| Channel Data Rate | 28.3125 Gbps |
| Operating Temperature | 0 to + 70°C |
| Storage Temperature | -40 to + 85°C |
| Supply Voltage | 3.3 V nominal |
| Electrical Interface | 38 pins edge connector |
| Management Interface | |
- 10G/40G/100G Gigabit Ethernet
- Infiniband SDR, DDR, QDR, FDR, EDR
- Servers, routers and switches
- Data Centers
ACT_01-22_EN-100G-QP28-DAC-01
