The OPTOKON introducing new effective harsh environment patchcord with HA series connectors, which is designed for FTTH projects and FTTA (Fiber To The Antenna). Pre connectorized cables significantly reduce cable installation time, saving money and accelerating FTTH subscriber connections, FTTA and various industrial applications

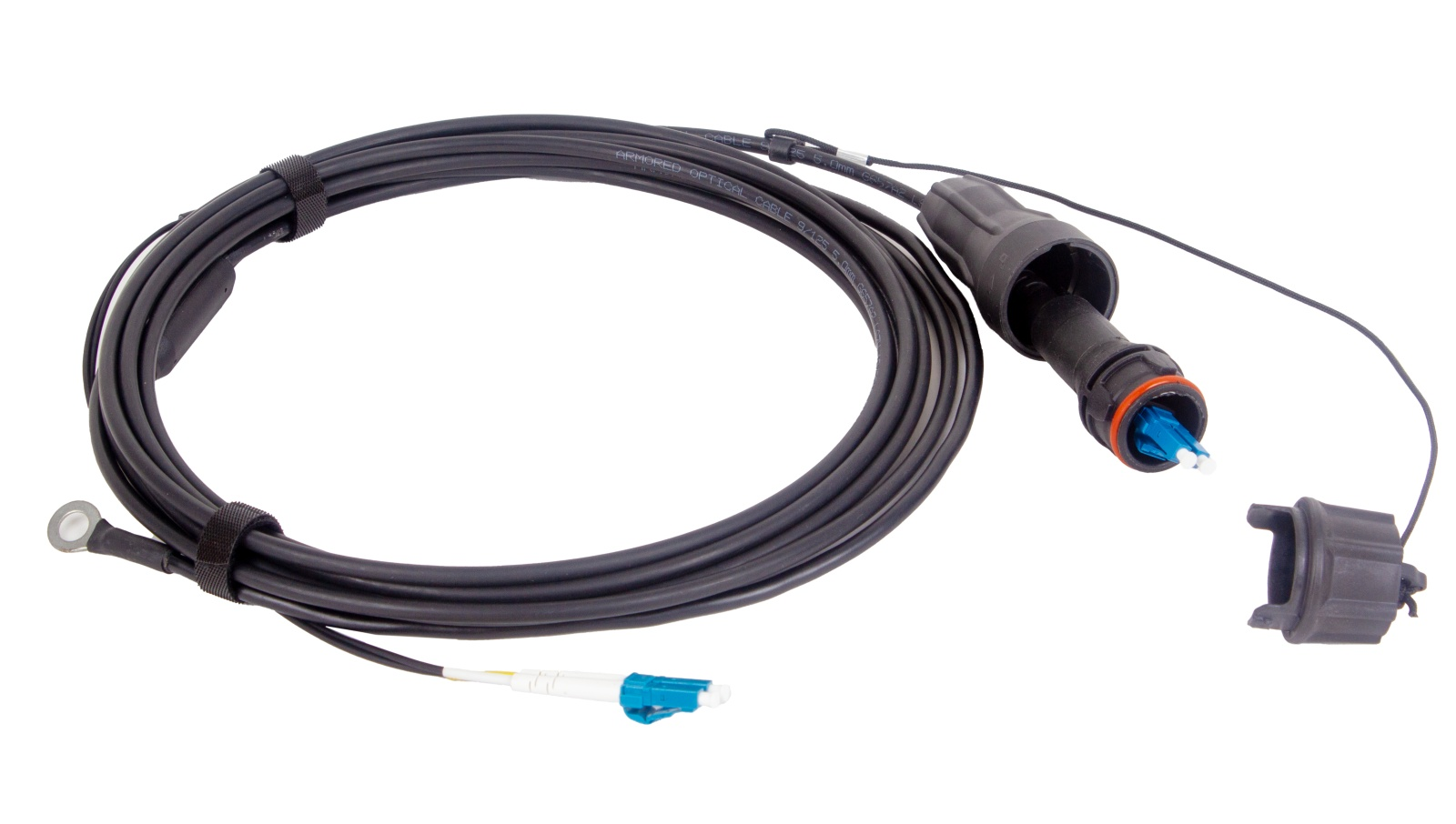

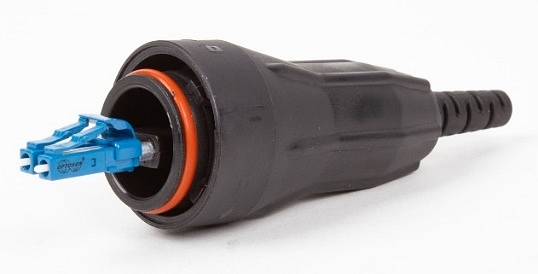

OPTOKON HA-LCD patchcord
- Simple bayonet locking system
- FullAXS-LC Compatible

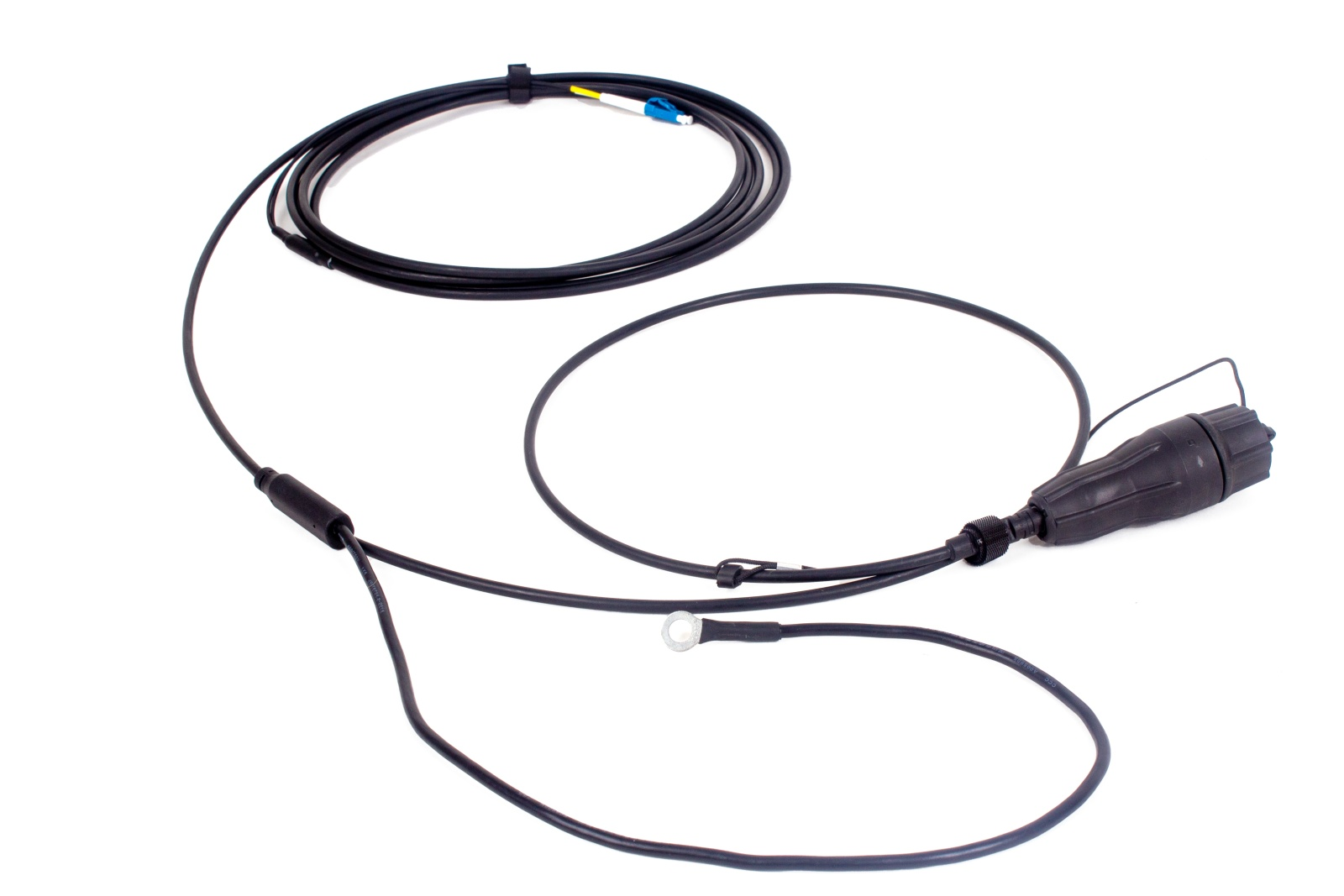

- Armored cable with grounding wire
- Proven design provides a hardened connector for outside plant deployment

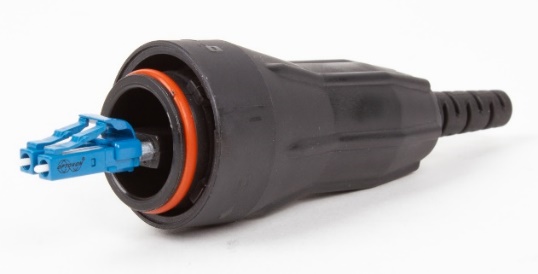

-Single mode/Multimode SC, LC duplex hardened connector
-Environmentally-sealed connector housing permits rapid connection to external flush-mounted bulkhead adapter - Robust design keeps connector intact during installation
- Fully standards-compliant product ensures the highest network reliability and durability
- Connectors designed and third-party tested to Telcordia GR-3120 requirements
| MM | UPC | APC | |
| Insertion Loss (IL) typical / Return Loss (RL) minimal | |||
| Duplex LC connector | 0.15 dB / 30 dB | 0.15 dB / 50 dB | 0.15 dB / 60 dB |
| Simplex SC connector | 0.15 dB / 30 dB | 0.15 dB / 50 dB | 0.15 dB / 60 dB |
| Operating temperature | -40°C to +85°C | ||
| Durability | min 1000 cycles | ||
| Assembly procedure | glue and polish | ||
| Connection | physical contact | ||
| Lock mechanism | Bayonet locking system | ||
| Standards | Telcordia GR-3120 | ||
| Ferrule material | full ceramic zirconia | ||

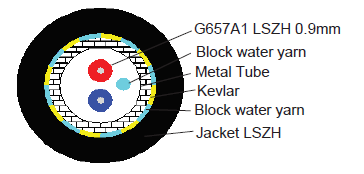

| Cable diameter range | 4 – 6 mm, armored FO cable 4.8 mm | ||
| Outer jacket material | Halogen free flame retardant | ||
| Cable attenuation | 0.40 dB/km @ 1310 nm, 0.25 dB/km @ 1550 nm |
For more detailed information contact our sales department SALES@OPTOKON.COM
