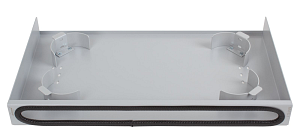

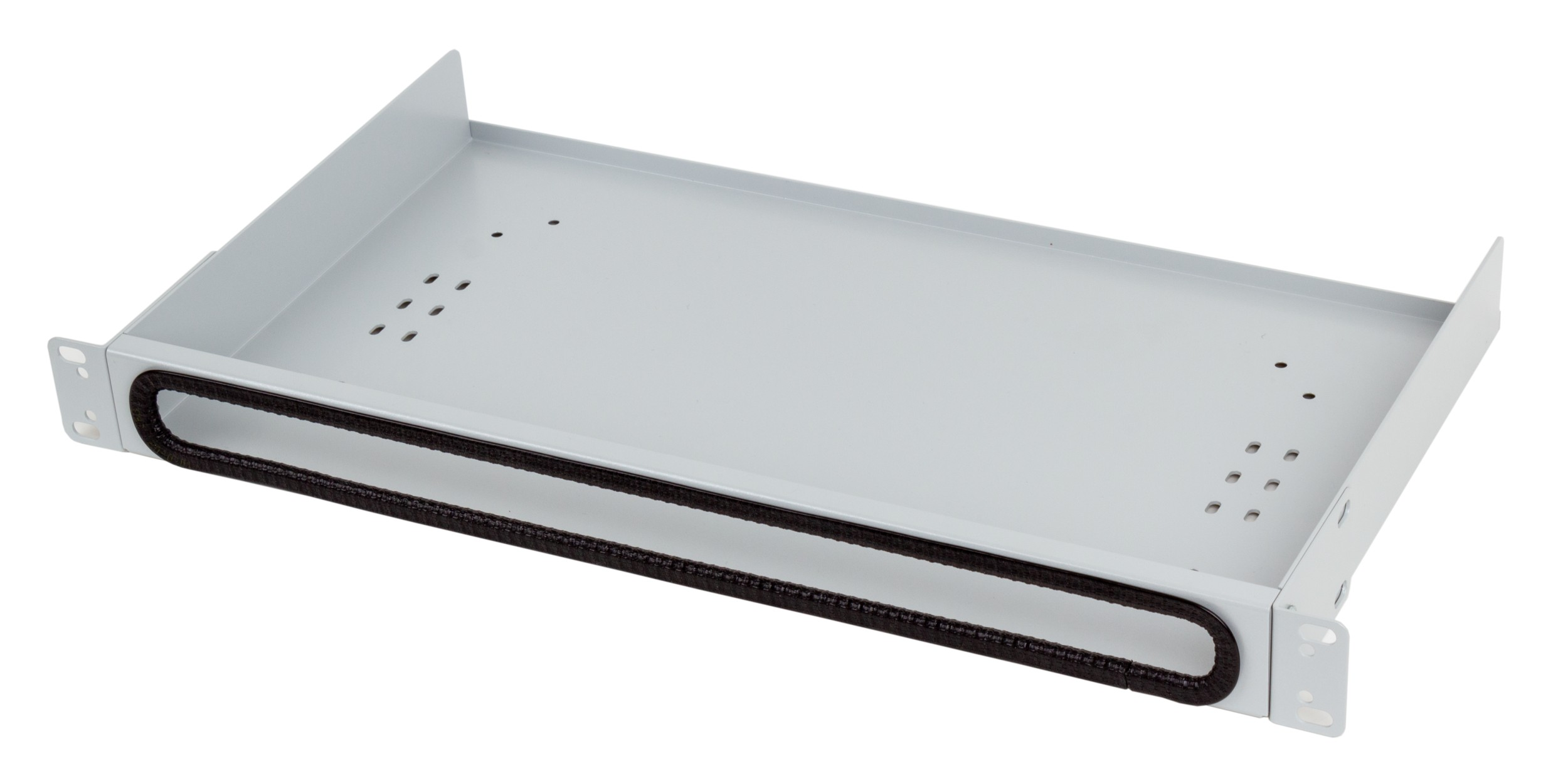

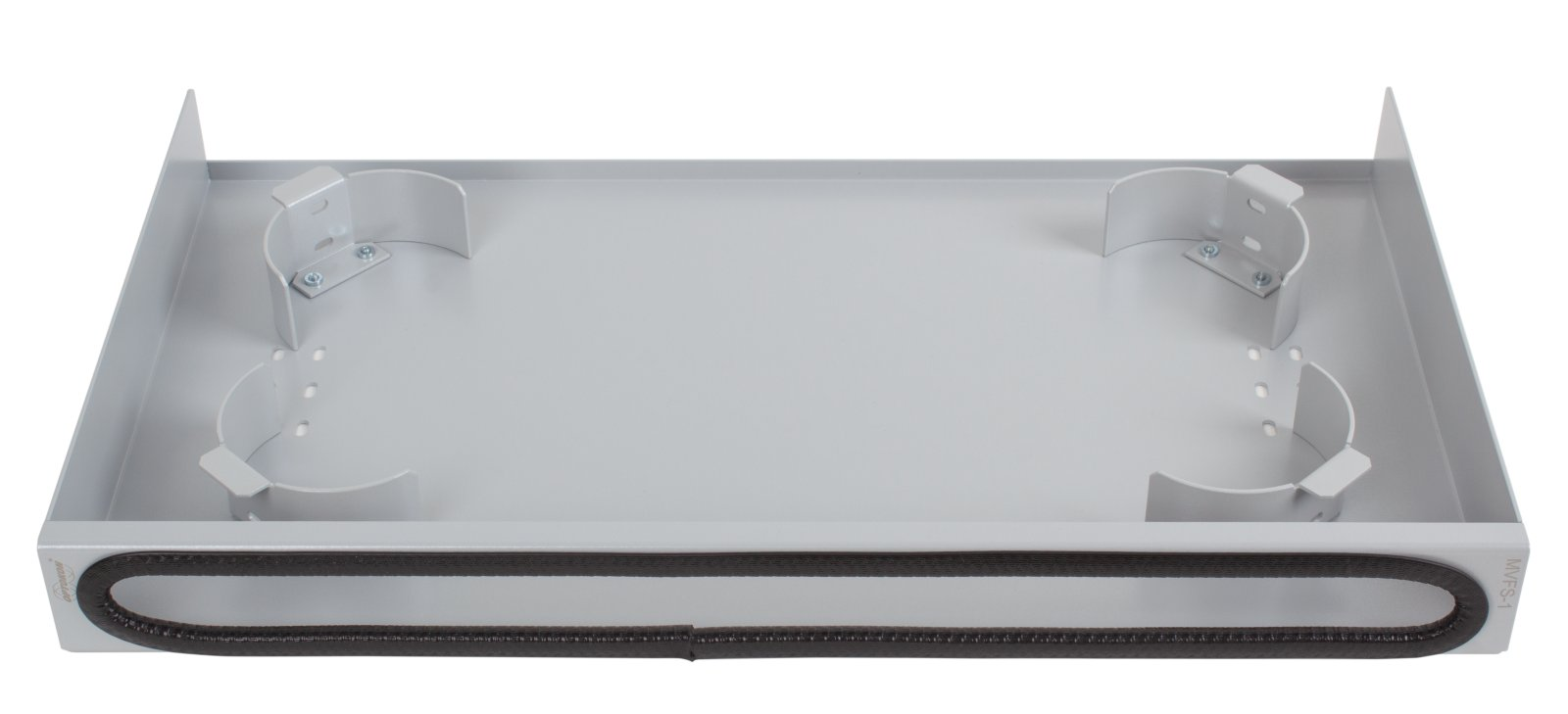

The MVFS-1 is a 1U rack-mountable vented fiber storage shelf for the guidance and storage of excessive cable lengths and patchcords.
MVFS-1 – Vented Fiber Shelf
- Vented front panel
- 1U version
- Storage shelf as one unit
- Standard color: RAL 9006 (grey)
|
PART NUMBER |
RACK UNITS |
DIMENSIONS (HxWxD) mm |
SHIP WGT (kg) |
Depth |
|
MVFS-1-250 |
1 |
44 x 432 x 250 |
0.7 |
250 mm |
|
MVFS-1-350 |
|
44 x 432 x 350 |
0,9 |
350 mm |
|
MVFS-1-450 |
|
44 x 432 x 450 |
1,1 |
450 mm |
- Rack-mount, 19" (standard), 21"or 23"
- OPTOKON Cable Management System
CMS_01-20_EN-MVFS_Vented_shelf
