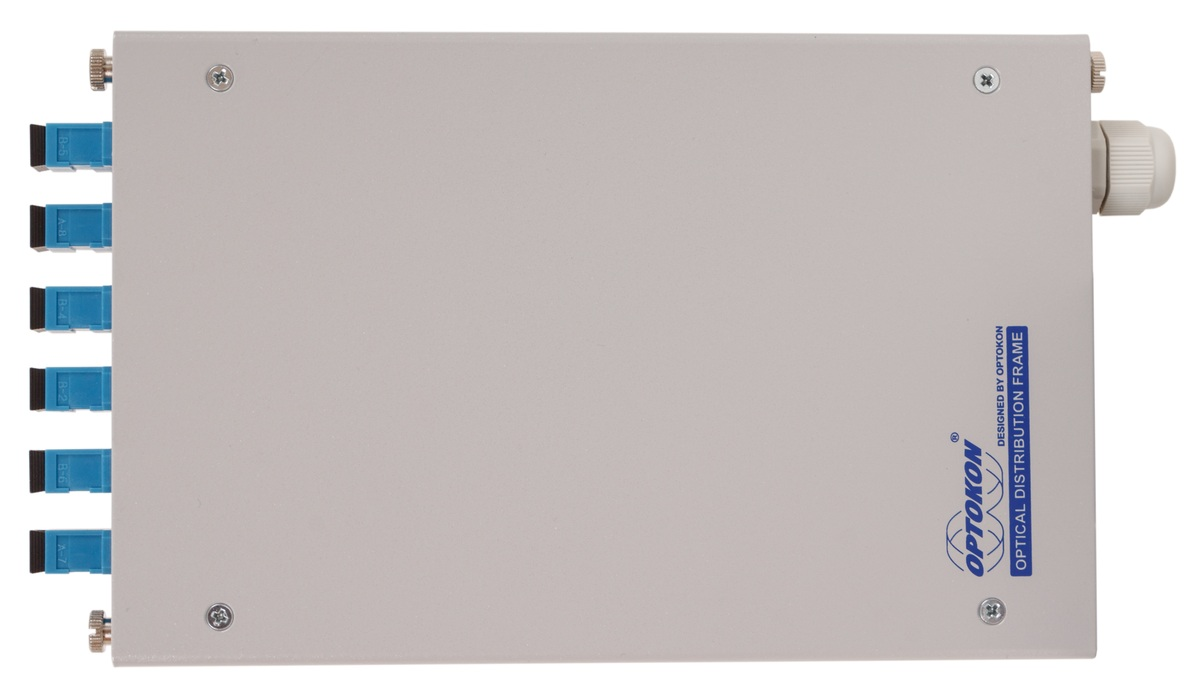

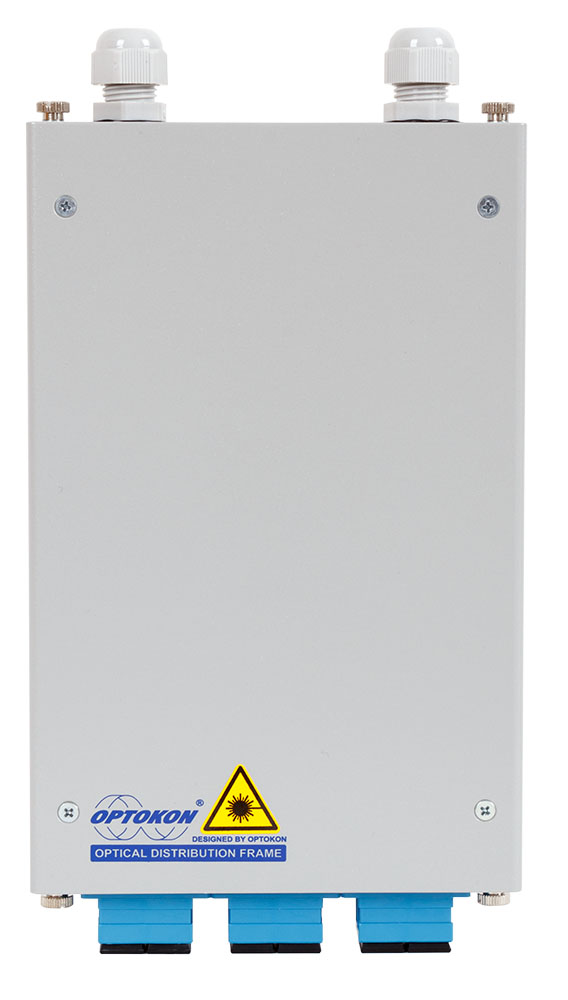

The FO 22 is a cost effective wall mount interconnect indoor cabinet designed for splice, storage and protection of 4 to 24 fiber optic connections. These compact, modular units are ideal for use in locations such as building entrance terminals, telecommunications closets and other controlled environments where wall space is at premium. The FO 22 is from aluminium-magnesium alloy 5754 material (excellent corrosion resistance and very high strength).
FO 22 - Splice and Termination Box Wall Mount
- Easy wall mounting
- Craft friendly - protection for facility and user connections
- Modular system
- Easy access to individual connectors
- Durable powder coat finish
- Easy exchangeable panels for most common connector types

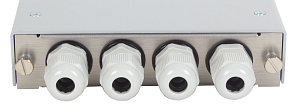

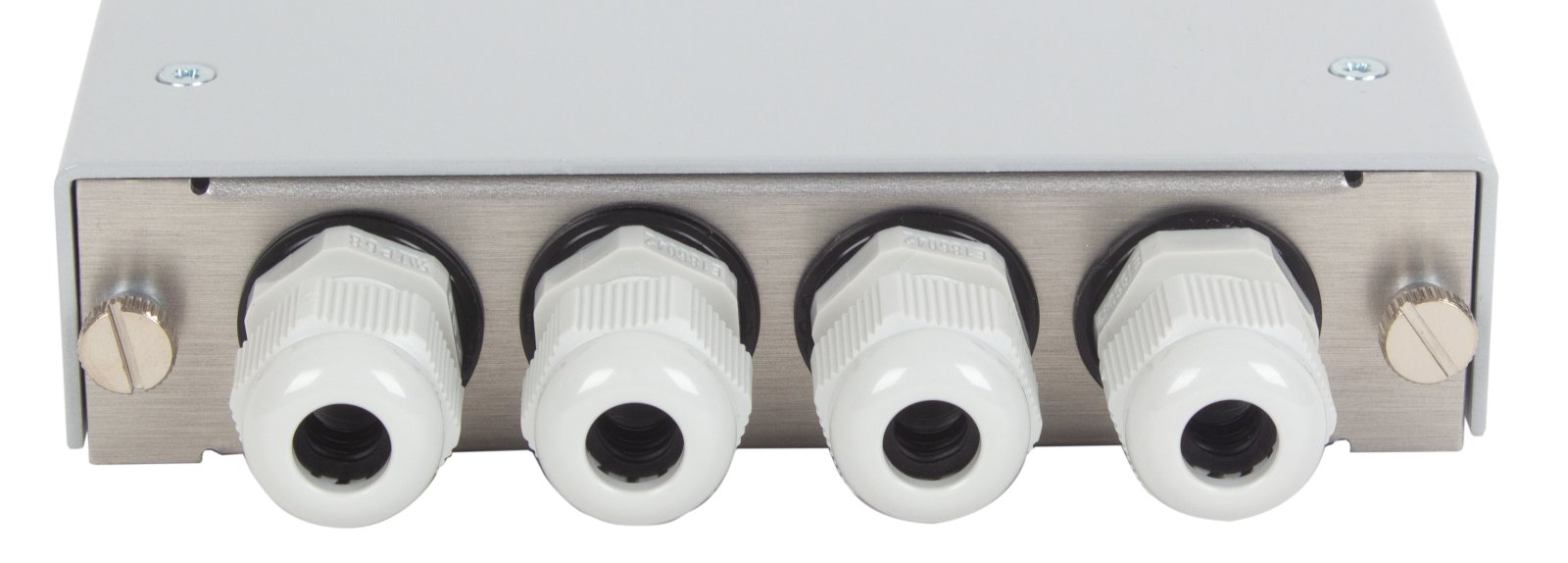

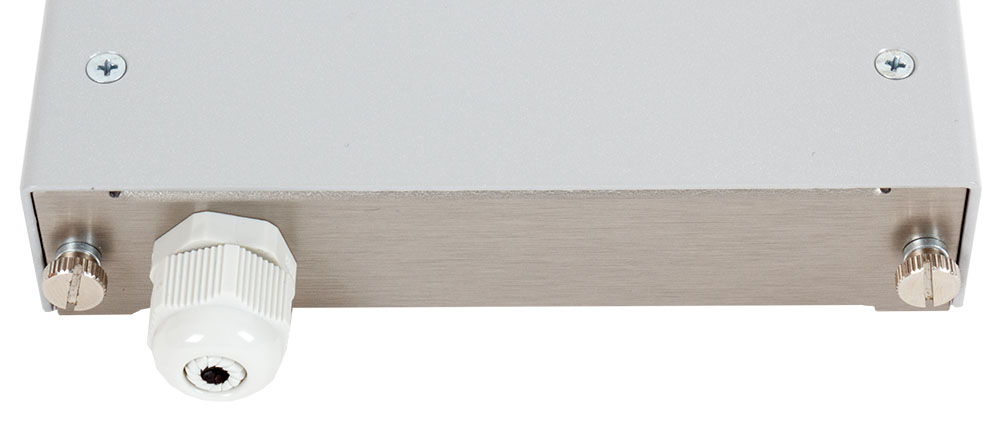

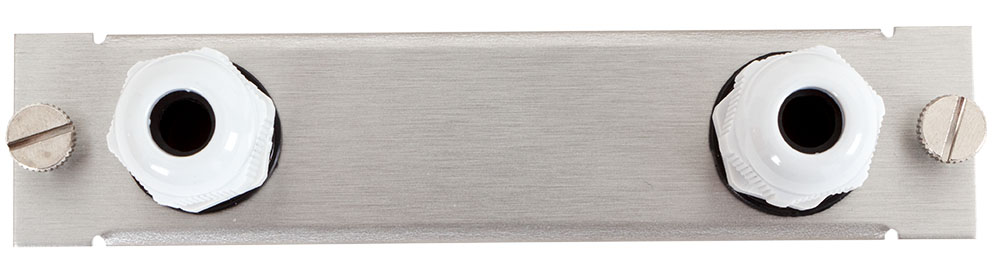

- Bushing PG for firm holding of optical cable

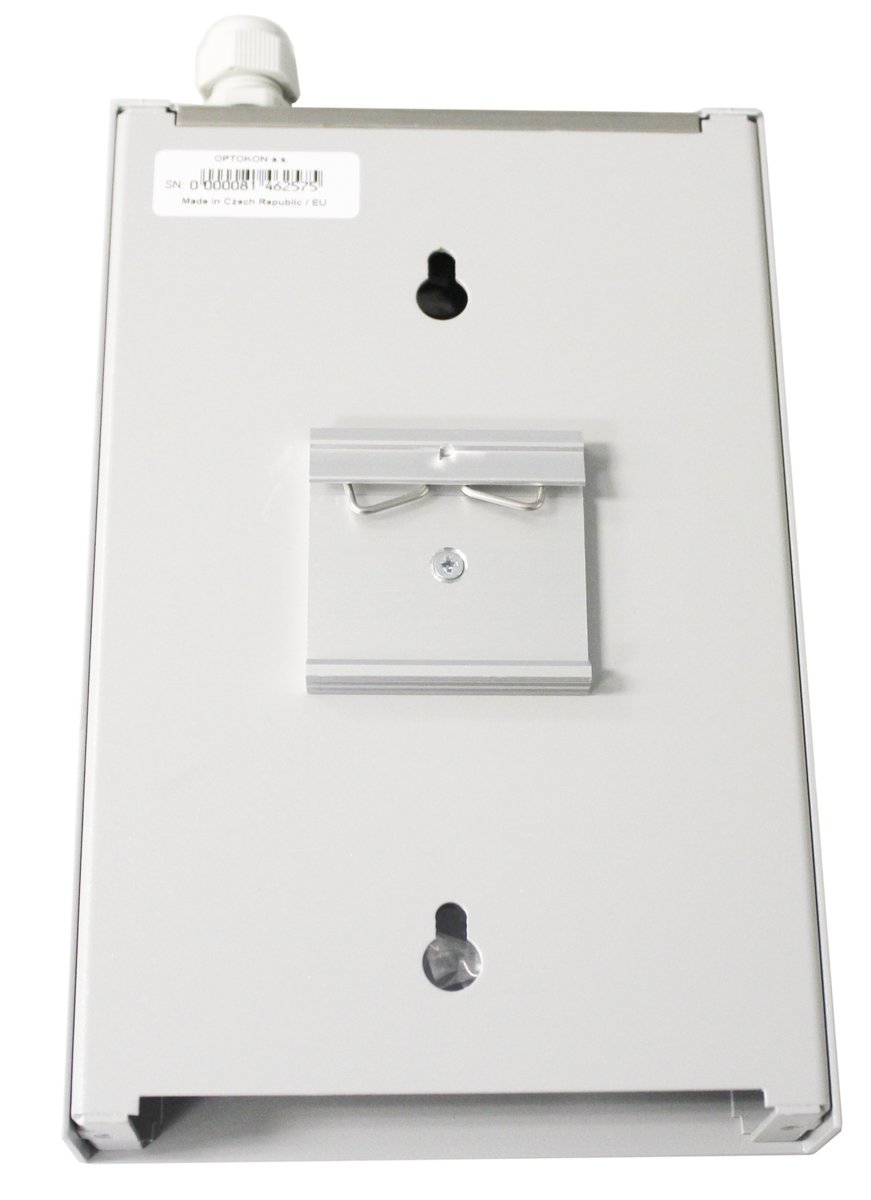

- Optionally DIN rail mounting
- Capacity up to 24 fibers
- Material aluminum-magnesium alloy-low weight and shipment costs
- Durable powder coat finish light grey colour (RAL9006, RAL7038), optionally black (RAL9005)
| PART NUMBER | FIBER CAPACITY | DIMENSIONS (H x W x D) mm | SHIP WGT (kg) |
|---|---|---|---|
| FO 22 | up to 24 | 205 x 130 x 30 | 0.7 kg |

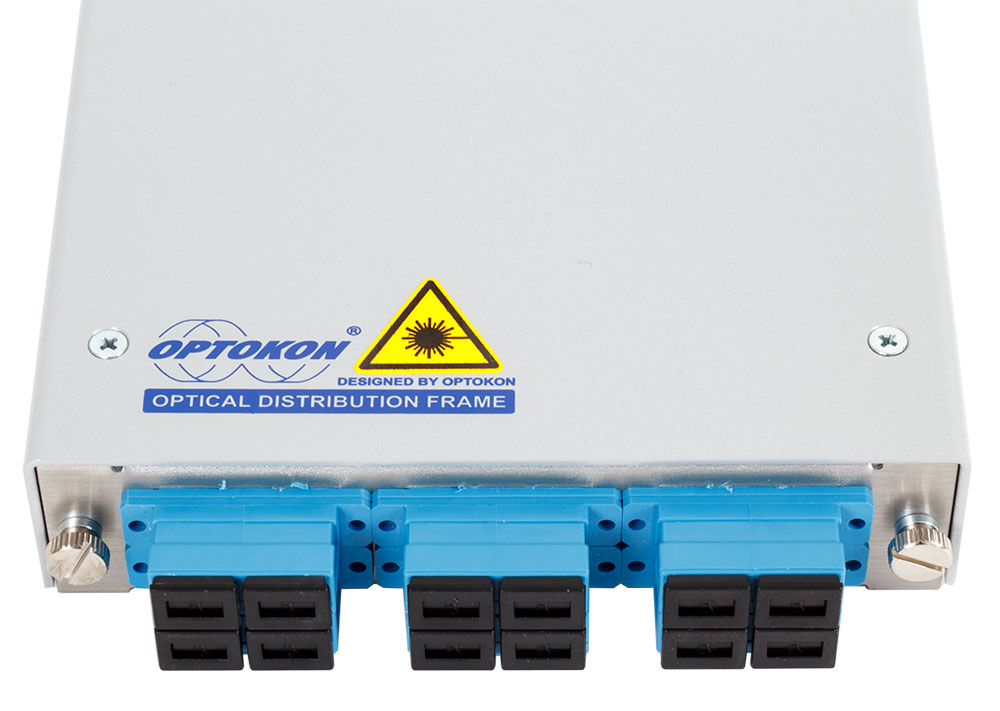

Fiber patch panels options:
| FO adapter panels | Number of adapters | Fibers |
|---|---|---|
| CNPM – ST – 06 (08) | 6 (8)x ST type | 6 (8) |
| CNPM – FC – 06 (08) | 6 (8)x FC type | 6 (8) |
| CNPM – E2/SC/DLC – 06 (08) | 6 (8)x LSH (E2000) or SC type or duplex LC type (SC footprint) | 6 (8) |
| CNPM – DSC/QLC – 03 | 3x duplex SC or QLC type | 6/12 |
| CNPM – DSC/QLC – 06 | 6x duplex SC or QLC type | 12/24 |
| CNPM – DE2 – 06 | 6x duplex LSH (E2000) compact | 12 |
| CNPM – MJ – 06 | 6 x MT-RJ type | 12 |
| CNPM – DMU – 06 | 6 x duplex MU type | 12 |
| CNPM – 00 | Blank panel | 0 |
- Building entrance terminals
- Telecommunications closets
- Other controlled environments where wall space is at premium
CMS_02-02_EN-FO_22-01
