MFDC-xA Rack mount splice and termination optical cabinet IP41 rating + Angled fit of adapters

MFDC-xA Connector Network Panel is the optical distribution frame that can be mounted on a 19” rack. It is designed for splicing pre-made pigtails, pre-terminated cables, and connectors that can be installed on site. The cabinet is made from a lightweight and solid aluminum-magnesium alloy, which makes it easy to handle during installation and operation and also helps keep transportation costs low.

Incoming cables are connected to the side panel of the unit using a PG cable glands, which helps the MFDC-xA meet the IP41 rating. Inside of cabinet is a splice tray holder or bend radius protection to guide, store and organize excess slack of pigtails. This helps prevent damage to fibers before they are routed into couplings.

MFDC-xA cabinet is equipped with angled adapters which prevent direct eye contact with the fiber optic laser and reduce the risk of vision damage.

  • Features
  • Specifications
  • Application
  • Documents
  • Splicing and termination optical cable in one box
  • Aluminum-magnesium alloy material providing low weight and low shipping costs
  • Special front panel is designed for angled mounting of adapters
  • Splice cassette holder enables cable termination with the help of pigtail splicing
  • Rating IP41
  • PG16 cable gland and optionally grounding provisions
  • Accepts the industry's most common connector types
  • FTTH use - microtubes holder included
  • Durable powder coat finish light grey colour (RAL 7038), next color optionally on request

Technical specifications:

PART NUMBER

RACK UNITS

RATING IP41

DIMENSIONS (HxWxD) mm

SHIP WGT (kg)

MFDC - 2A

2

  – Special front panel
     with angled adaptors (55°)
  – Cable entry via PG13.5

88 x 432 x 305

2.1

MFDC - 3A

3

133 x 432 x 305

2.4

MFDC - 4A

4

178 x 432 x 305

2.5

MFDC - 6A

6

267 x 432 x 305

2.9

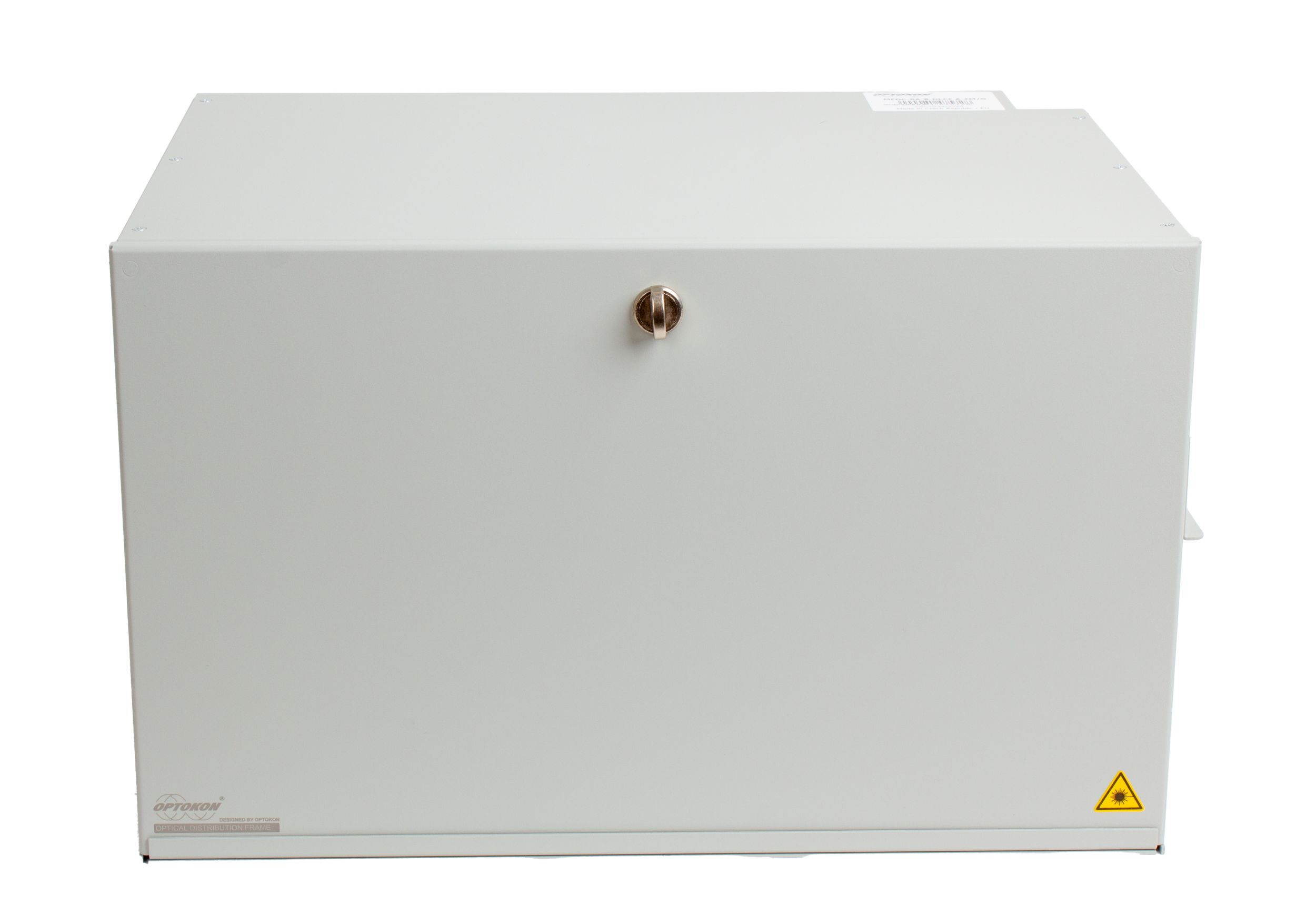

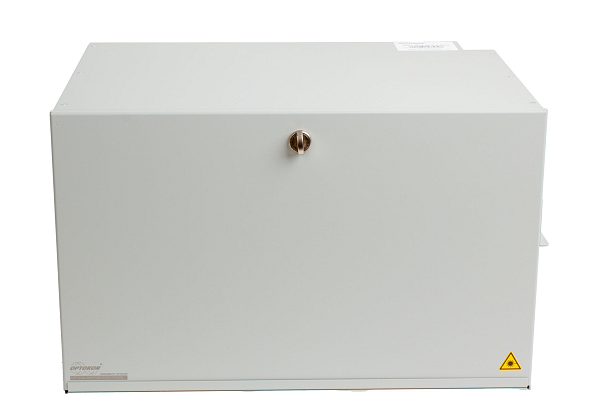

MFDC-6A-8-96-DLCF A-ZM/G front view

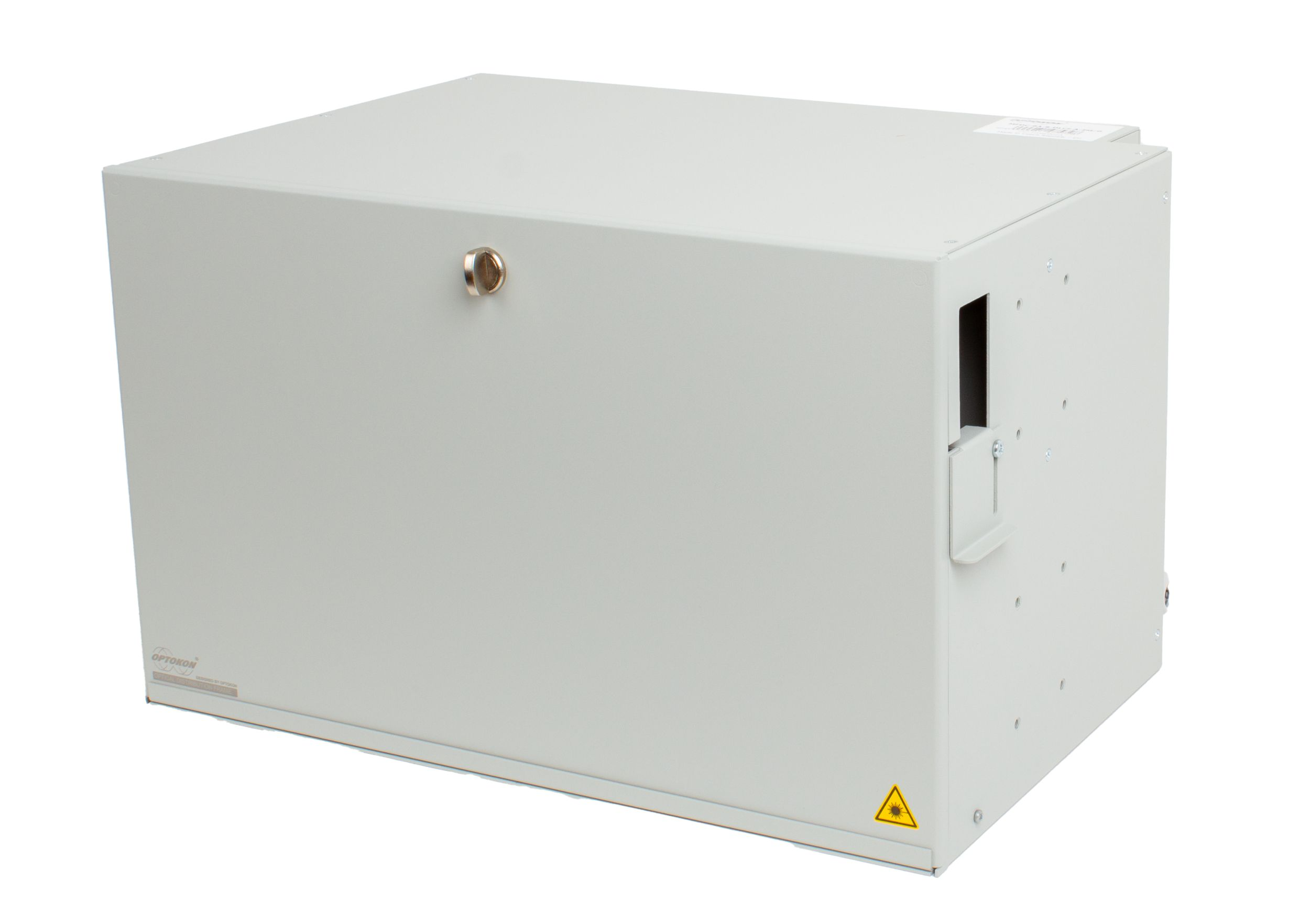

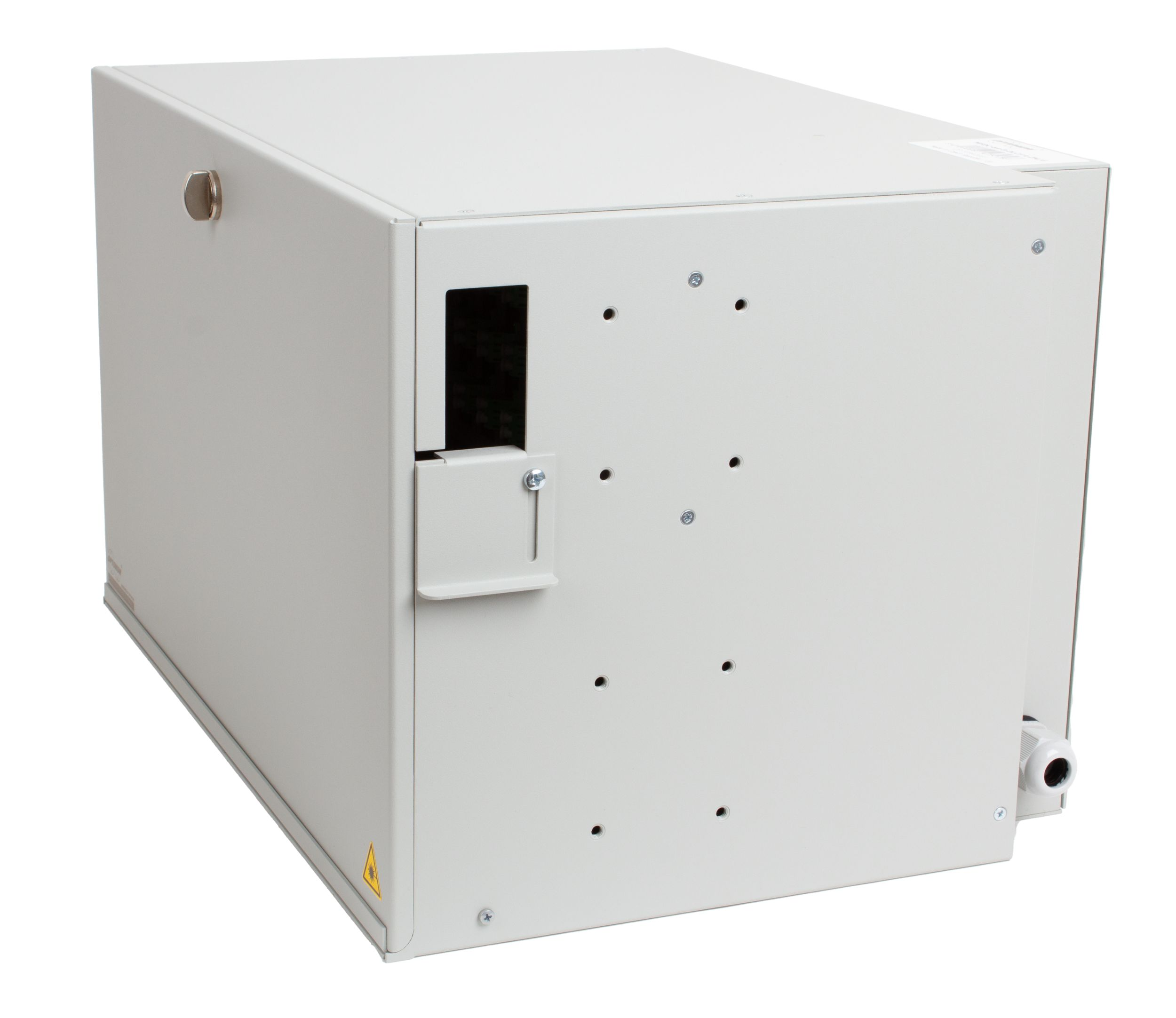

MFDC-6A-8-96-DLCF A-ZM/G back view

Product information and technical specification:

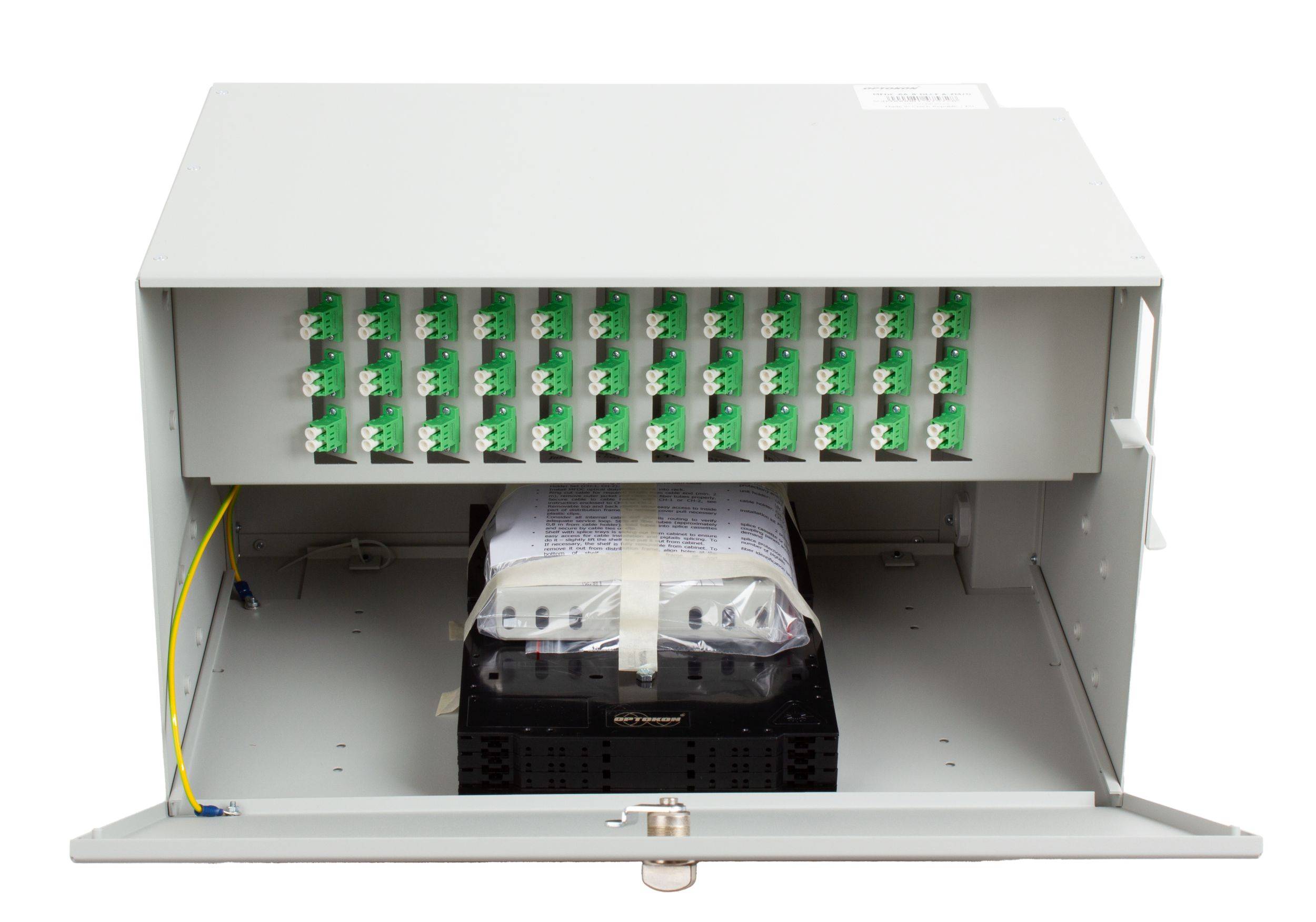

MFDC-6A-8-96-DLCF A-ZM/G front right view

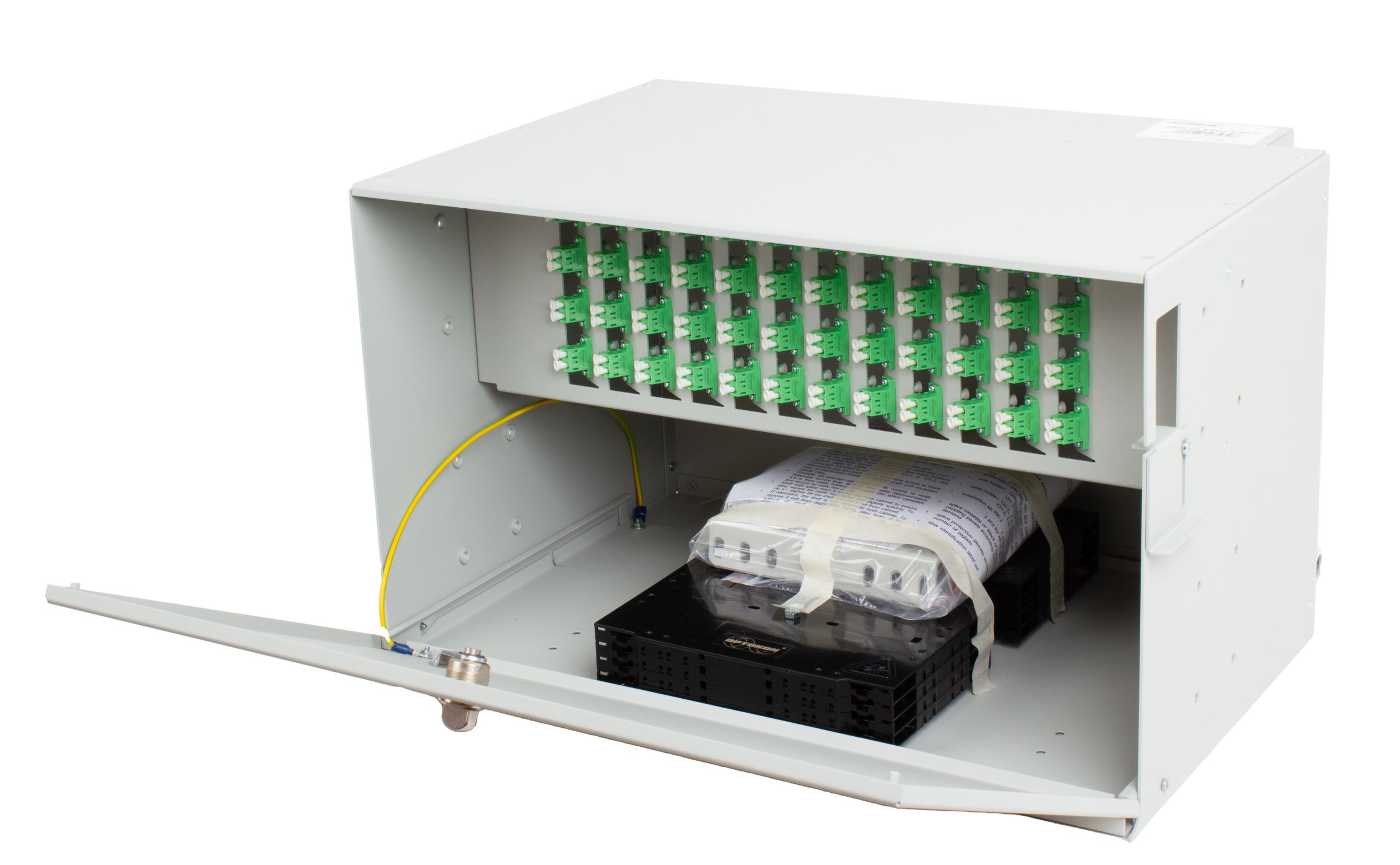

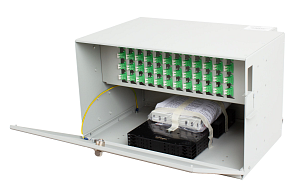

MFDC-6A-8-96-DLCF A-ZM/G opened

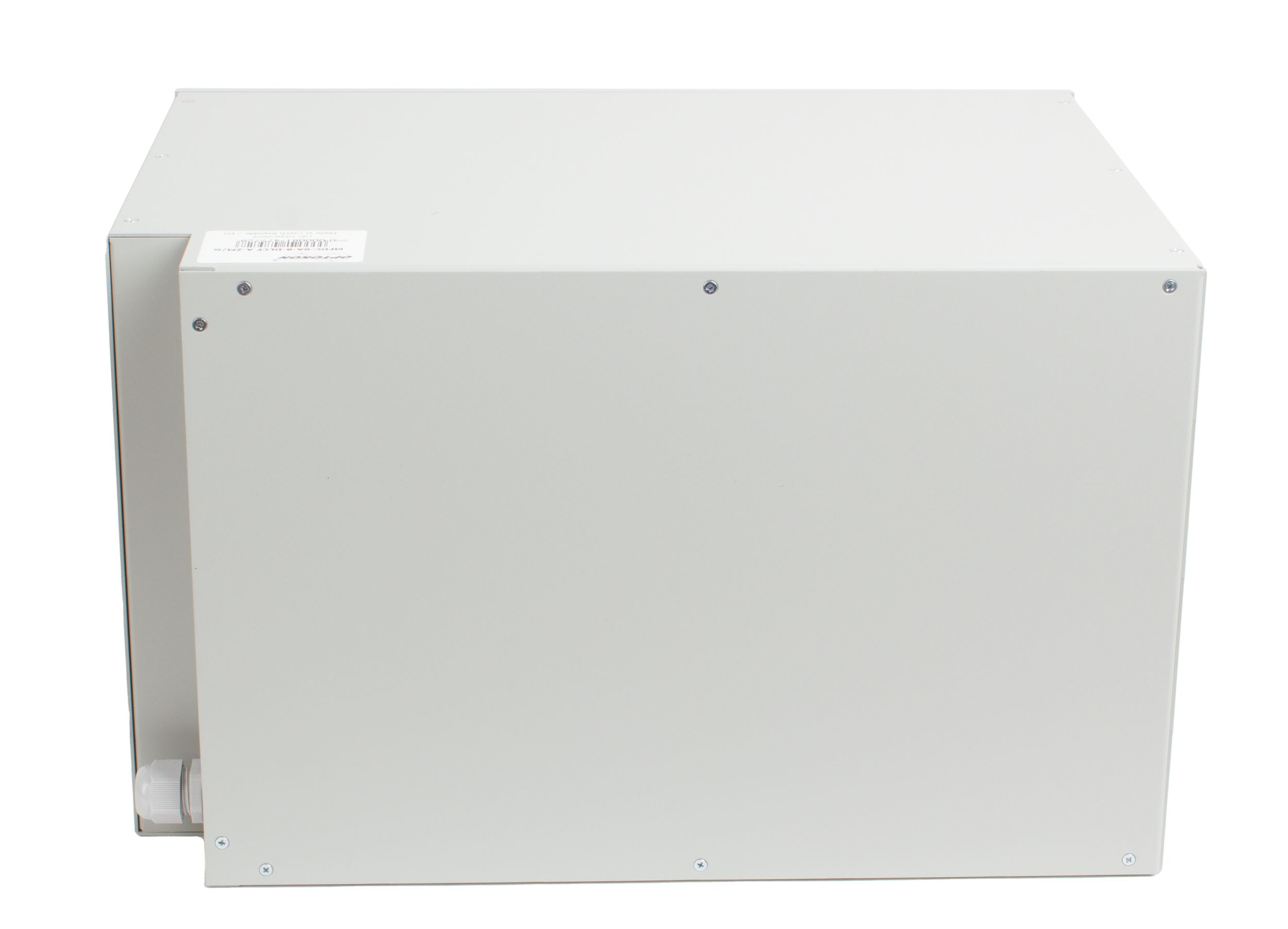

MFDC-6A-8-96-DLCF A-ZM/G side view (PG13.5)

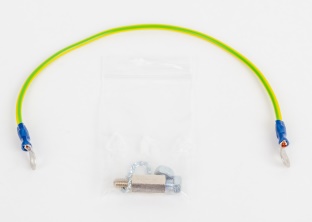

Grounding accessories - optional

Designed for splicing pre-made pigtails, pre-terminated cables, and connectors that can be installed on site.
