The OFDU-S cabinet is based on universal optical distribution frames. The unified modular system enables easy reconfiguration and can be extended according to operator requirements. The OFDU-S provides splicing, storage and protection of up to 288 fiber splices in individually accessible trays. The slide-out and swing down shelf enables unrestricted front, rear and top access to the splicing area. Various types of splice trays can be used.

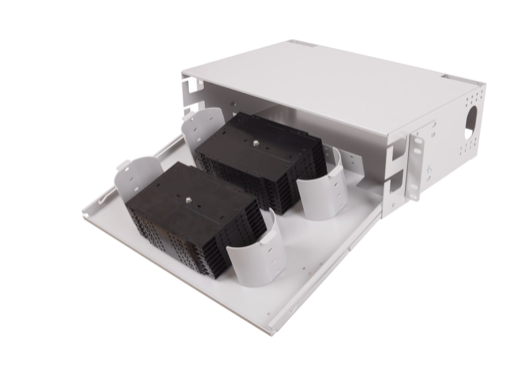

OFDU-S Rack Mount Splice Cabinet
• Splicing of up 288 fibers in one cabinet
• Slide-out and drop down shelf
• Aluminum material - low weight and shipment costs
• Cable strain-relief hardware provided
• Durable powder coat finish – RAL 9006
Technical specifications:
|
PART NUMBER |
FIBER CAPACITY |
RACK UNITS |
DIMENSIONS (HxWxD) mm |
SHIP WGT (kg) |
|
|
EQUIPMENT |
CAPACITY |
||||
|
OFDU-S2-V1 |
6 splice cassettes |
72 |
2U |
88 x 432 x 305 |
1.4 |
|
OFDU-S2-V2 |
2 x 6 splice cassettes |
144 |
|||
|
OFDU-S3-V1 |
12 splice cassettes |
144 |
3U |
133 x 432 x 305 |
1.9 |
|
OFDU-S3-V2 |
2x 12 splice cassettes |
288 |
|||
Note:
V1 – variant: contains one cassette holder and one pair of BRP reels
V2 – variant: contains two cassette holders and two pairs of BRP reels
Product information and specification
|
|
1 OFDU-BU-X base unit 5 OFDU-SS sliding shelf 6 OFDU-RC-X rear cover 7-10 OFDU-CH-X cassette holder 11 OFDU-TC top cover 12 OFDU-DM-X front door metal (plexi) 13 Key lock / latch 14 UH-X unit holder 15 BRP reel bending radius protection
|
- Bend radius protection protection enables management and rearrangement of cable slack

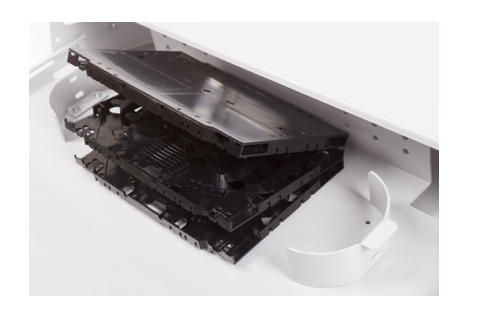

- Accepts standard splice trays
- Removable top provides unrestricted access to splice tray and fiber connections
CMS_06-12_EN-OFDU-S
