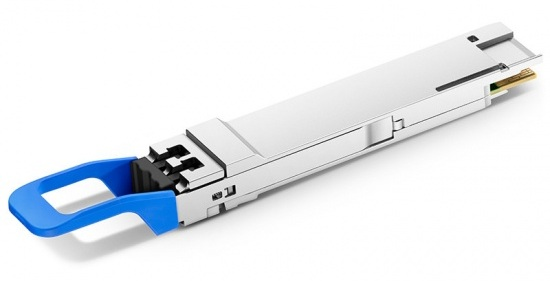

OPTOKON 400G QSFP-DD (Double Density) LR4 module supports link length ranging from 2 meters to a minimum of 10 kilometers over Single-mode fiber (SMF) with duplex LC connector.
The Multi-Source Agreement (MSA) specifies a 4 x 100 Gbps Coarse Wavelength Division Multiplex (CWDM) optical interface for Ethernet applications, enabling 400 Gbps optical transceivers. To ensure reliable system operation, the host must implement forward error correction (FEC).
The transceiver utilizes an eight-lane electrical interface in both directions, with a nominal signaling rate of 53.125 Gbps per lane.

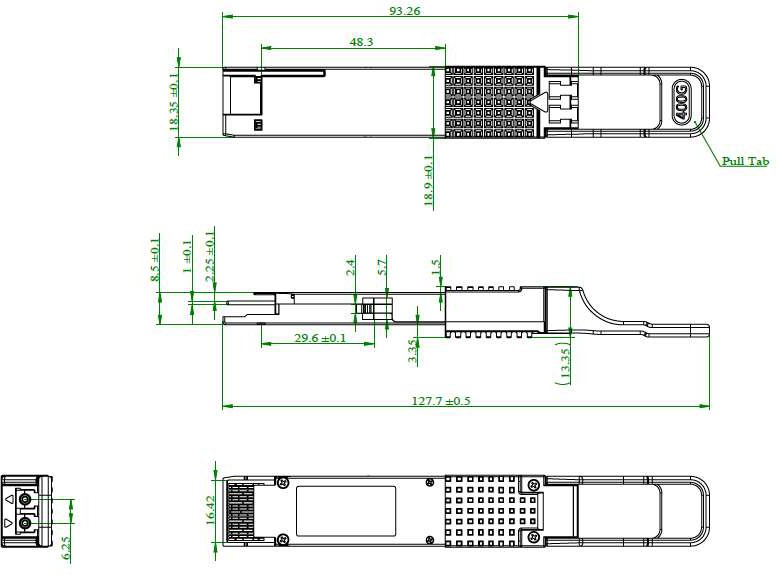

QSFP-DD LR4 400 Gbps Rate Transceiver
- Compliant with 400GBASE-LR4
- 8x53.125 Gbps (PAM4) electrical interface
- Integrated CWDM EML TOSA / PIN ROSA for up to 10km reach over SMF
- Digital Diagnostics Monitoring Interface
- Duplex LC optical receptacle
- No external reference clock
- Electrically hot-pluggable
- Compliant with QSFP-DD MSA with LC connector
- Case operating temperature range: 0°C to 70°C
- Power dissipation less than 12 W
- Class 1 Laser
Optical characteristics:
Transmitter
|
Parameter |
Min |
Typ |
Max |
Unit |
Note |
|
Wavelength assignment (λ0 – λ3) |
1264.5 |
1271 |
1277.5 |
nm |
λ0 |
|
1284.5 |
1291 |
1297.5 |
λ1 |
||
|
1304.5 |
1311 |
1317.5 |
λ2 |
||
|
1324.5 |
1331 |
1337.5 |
λ3 |
||
|
Signaling speed per lane |
|
53.125± 100 ppm |
|
Gbps |
|
|
Data rate variation |
-100 |
|
100 |
ppm |
|
|
Total output power |
|
|
9.3 |
dBm |
|
|
Average launch power off per lane |
-2.7 |
|
5.1 |
dBm |
|
Receiver
|
Parameter |
Min |
Typ |
Max |
Unit |
Note |
|
Average input power per channel |
-9 |
|
5.1 |
dBm |
|
|
Receiver sensitivity (OMA) per Lane max. |
|
|
-6.8 |
dBm |
BER@2.4E-4 |
|
Signaling speed per lane |
|
53.125± 100 ppm |
|
Gbps |
|
|
Receiver reflectance |
|
|
-26 |
dB |
|
|
Modulation format |
|
PAM4 |
|
|
|
The transceiver utilizes an eight-lane electrical interface in both directions, with a nominal signaling rate of 53.125 Gbps per lane.
