The special OFDU-TS4-310 cabinet is based on universal optical distribution frames. The rack-mount Fiber Optic Distribution Frame provides splicing and termination within one convenient housing unit. The OFDU-TS4-310 terminates up to 288 fibers in a 4U distribution frame. The slide-out and drop down shelf enables unrestricted front, rear and top access to the splicing area and termination panels. Cable is fixed in the rear side of the panel, and doesn’t move while opening the drawer. That makes a secure and reliable conection. This frame is ideal for indoor fiber optic cables connection storage, distribution and management. Standard colour is light grey (RAL 7038).

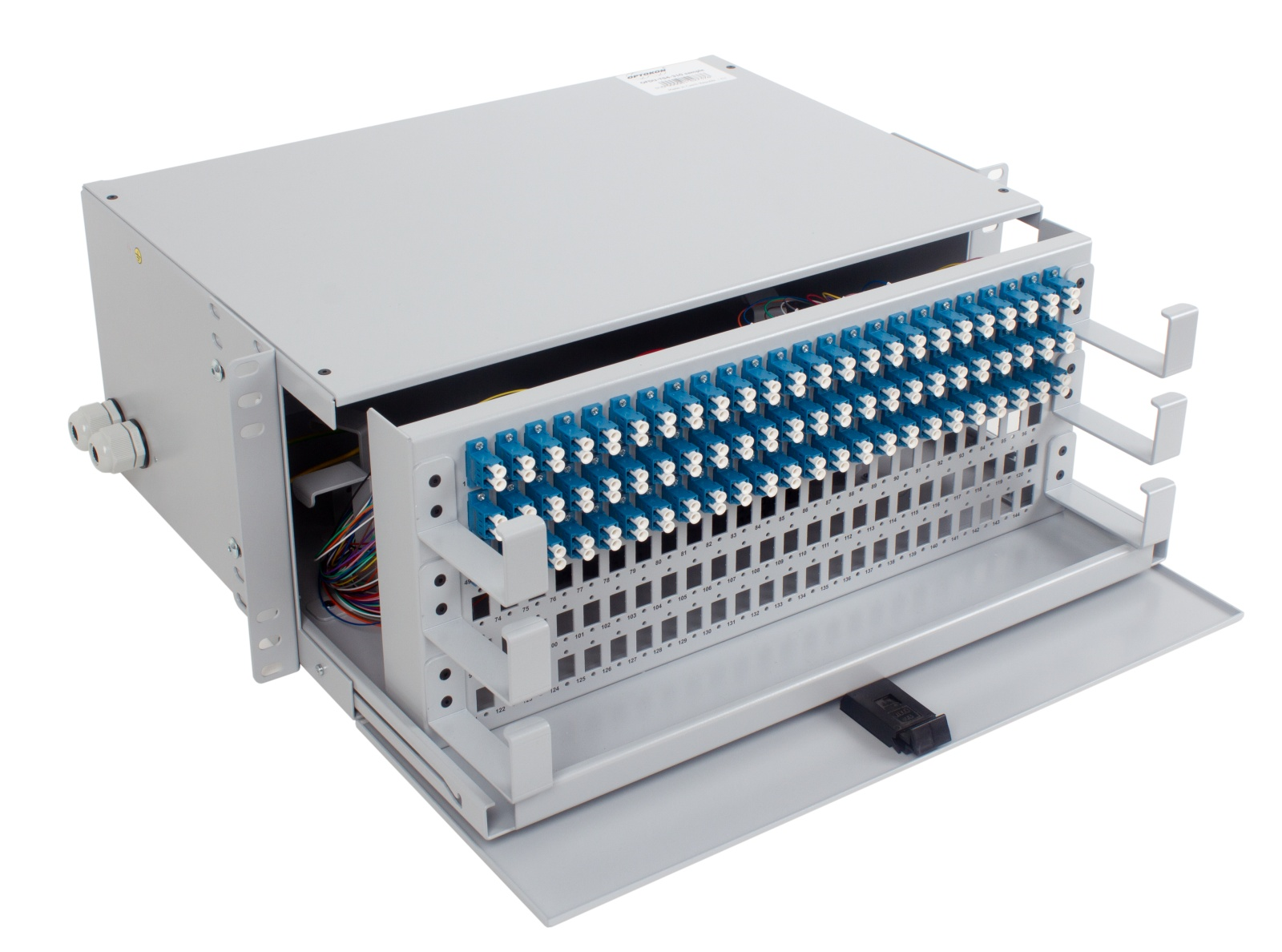

OFDU-TS4-310 Rack Mount Splice and Termination Cabinet
- Splicing and termination in one 4U cabinet

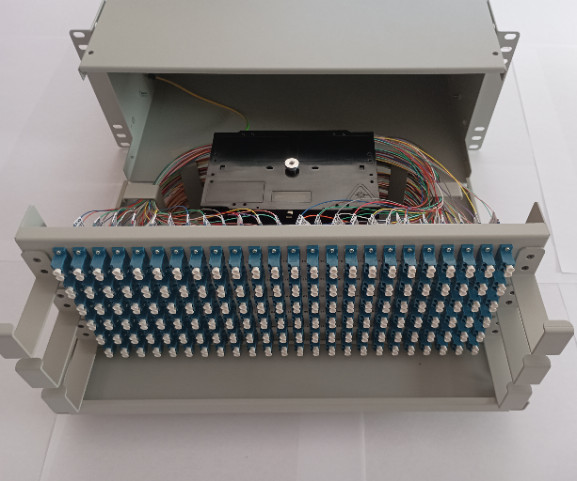

- Slide-out and drop down shelf
- Aluminum-magnesium alloy material - low weight and shipment costs
- Up to 288 fiber termination (SC, DLC, E2 adapters)
- Splicing in single splice trays, individual splice tray access
- Sufficient depth 310 mm for a large number of optical pigtails
- 19” 4U holders included
- Durable powder coat finish - RAL 7038
- Removable front door with latch lock
- Equipped with PG29 glands (up to 4 pieces, 2 from each side)
Technical specifications:
|
PART NUMBER |
RACK UNITS |
DIMENSIONS (H x W x D) mm |
SHIP WGT (kg) |
|
OFDU-TS4-310 |
4U |
178 x 432* x 310 |
2.3 |
* Width of cabinet without unit holders (UH-4)
|
OFDU-TS4-310 - Fiber capacity |
||
|
Splice Tray1 |
Max |
Fibers |
|
KNS-12M |
12 |
288 |
NOTE: 1) Splice trays datasheet: CMS_01-09_EN-KNS Splice_trays
|

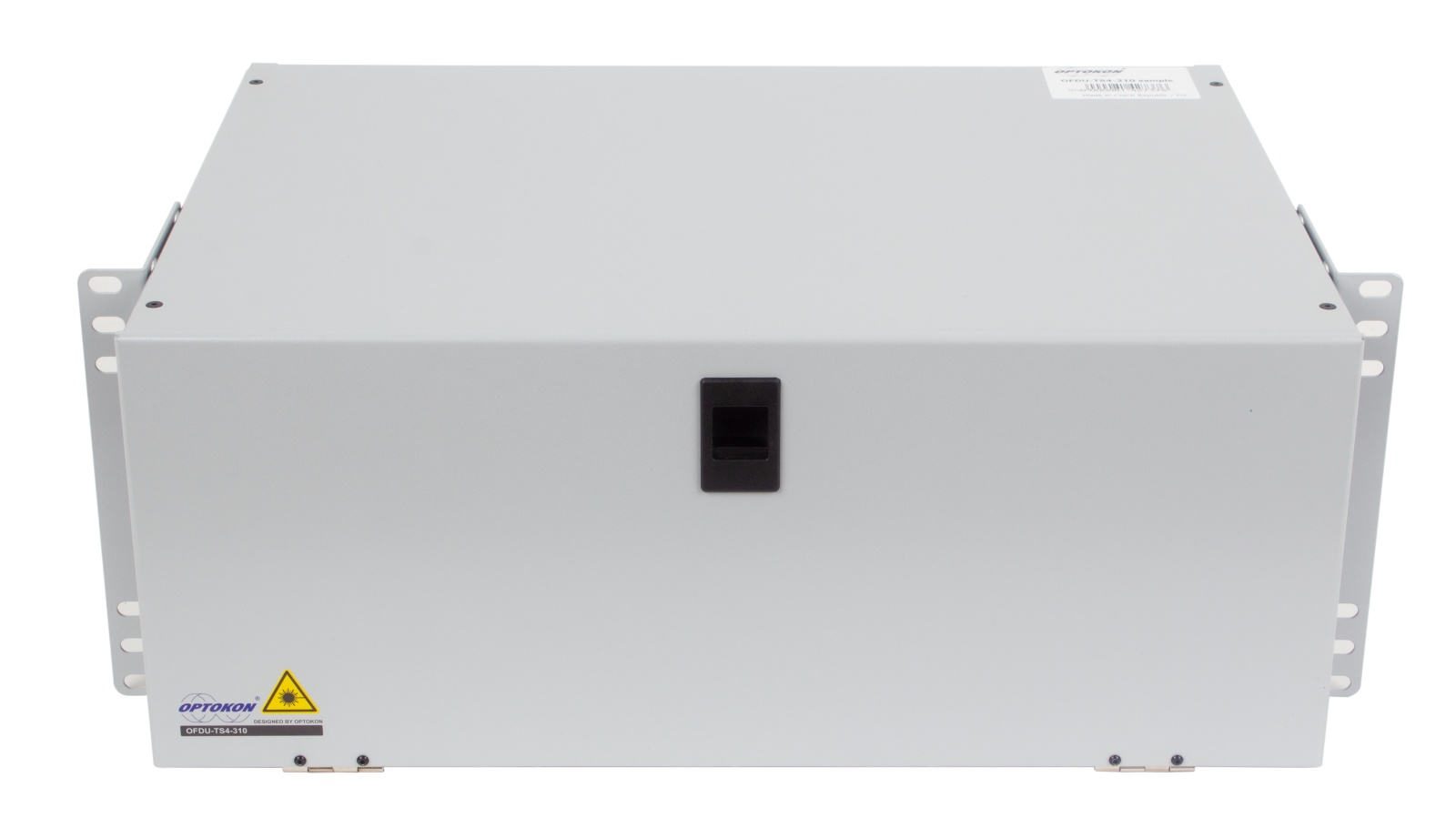

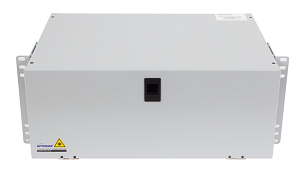

Front view of OFDU-TS4-310: |

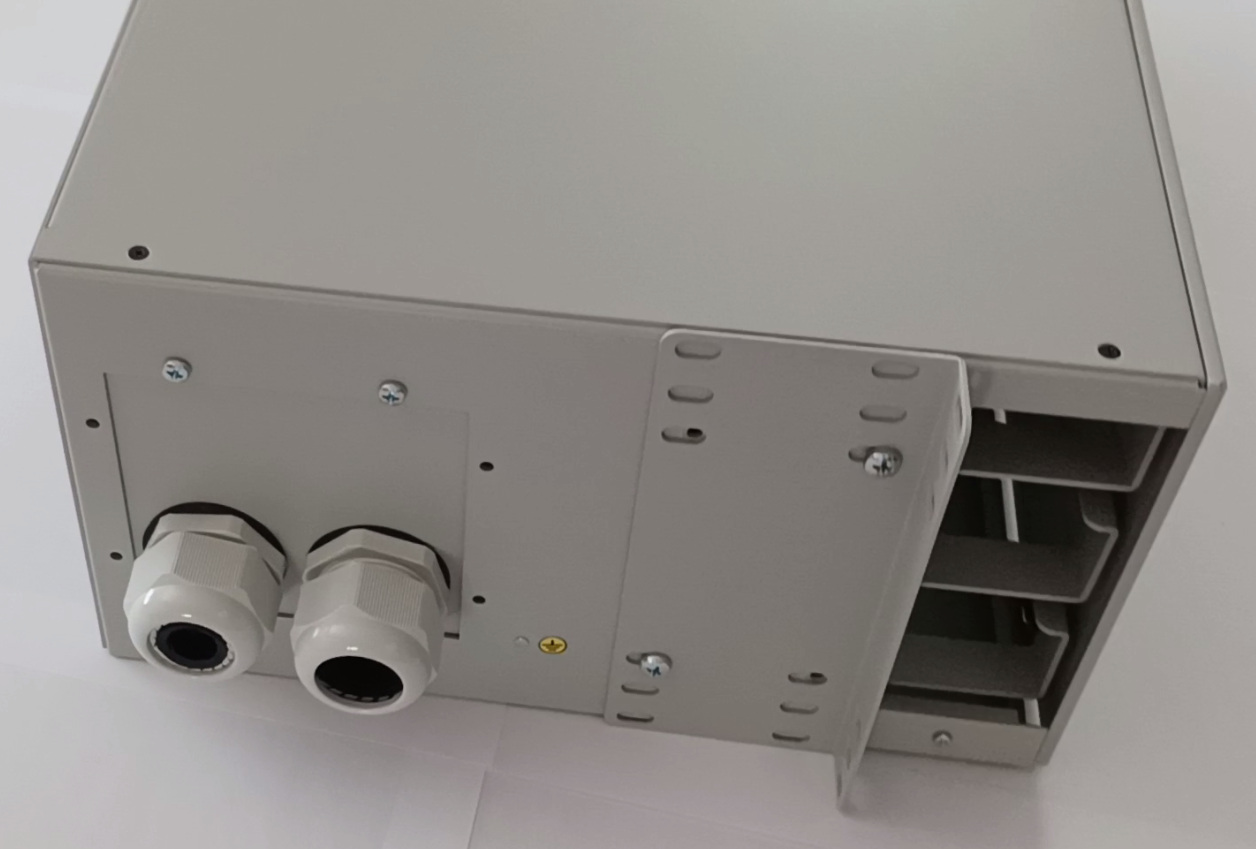

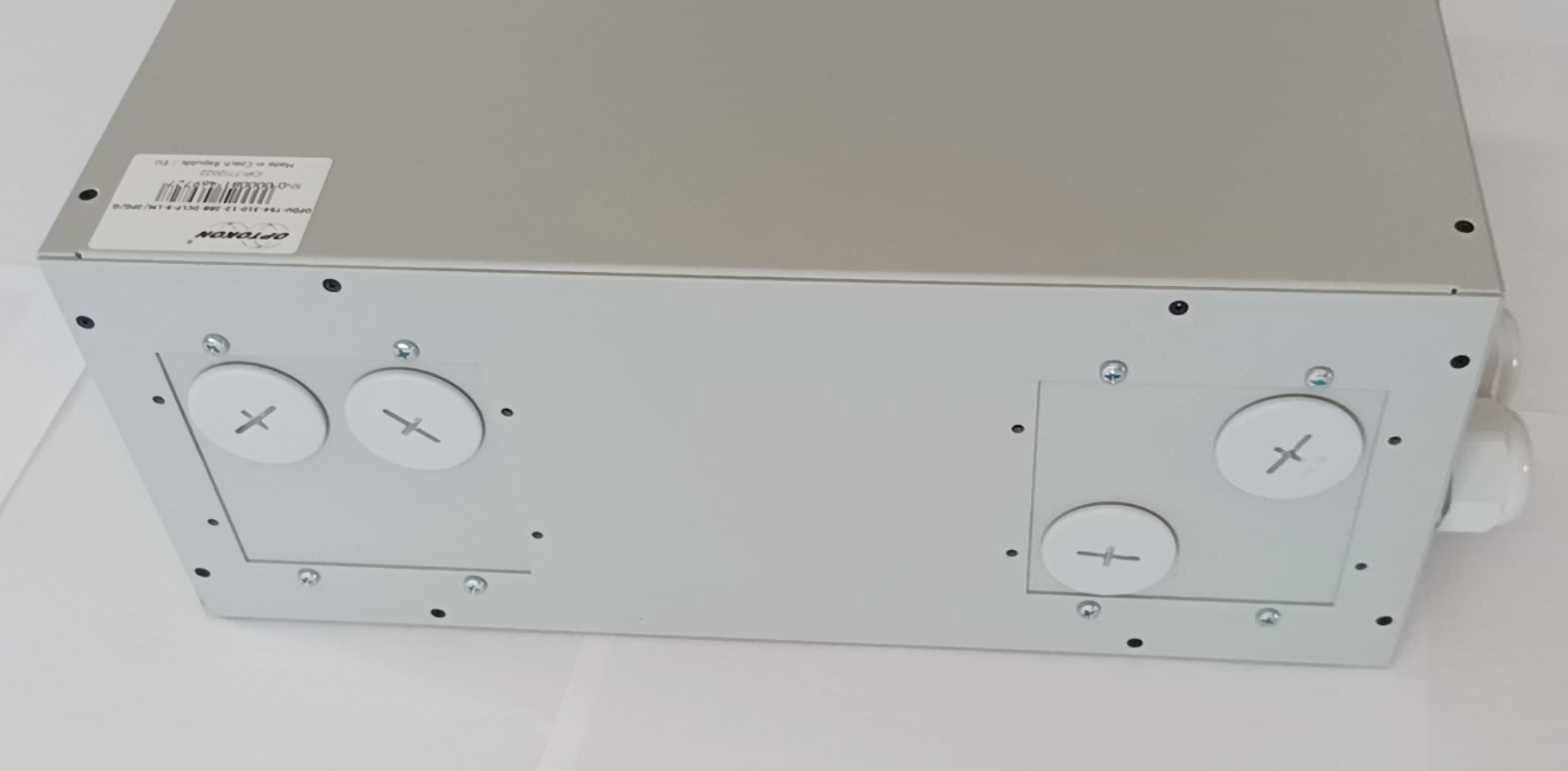

Detail of PG29 cable glands |

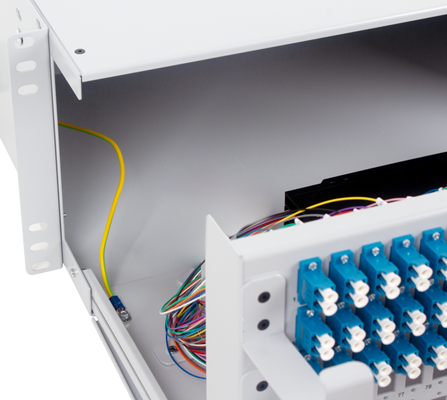

Grounding detail: |
|
|
|
|
- - Telecommunications subscriber loop
- - Fiber To The Home (FTTH)
- - Local Area Network (LAN) / Wide Area Network (WAN)
- - CATV
CMS_07-20_EN-OFDU-TS4-310
