The double-door Wall mount Interconnect Cabinet (MPIC) is available from 6 to 144 (192) fiber capacities. The cabinet is ideal in building entrance terminals, telecommunications closets, computer rooms and other controlled environments where space is limited. This double door cabinet provides segregated access for the end-user and the installer. Both doors are fully removable from base, which allows easy access during installation works and optical network reconfiguration. End-users can reconfigure the connections without exposing the installation workspace. The cable strain-relief is facilitated with dual cable tie "brackets".
MPIC Wall Mount Interconnect Cabinet
- Protection for facility and user connections
- For FTTH use - holder for micro tubes included
- Removable door – easy access for optical network installation and reconfiguration
- Aluminum material – low weight and shipment costs
- Bend radius protection allows management and rearrangement cable of slack
- Strain-relief for multiple inbound cables
- Labels provided for system documentation
- Optional kit adapts cabinet splice tray
- Durable powder coat finish
- Bonding and grounding stud provided
- Jumper strain relief brackets for outbound cable
- Passed the seismic tests according to ASME standards
- Approved for construction of Nuclear Power Plant Components
Technical specifications
|
PART NUMBER |
NUMBER of CNPM panels |
FIBER CAPACITY1 |
DIMENSIONS (HxWxD) mm |
SHIP WGT (kg) |
|
|
CNPM-XX-06 |
CNPM-XX-08 |
||||
|
MPIC-4 |
4 |
24/48/96 |
32/64 |
325 x 360 x 73 |
1.5 |
|
MPIC-6 |
6 |
36/72/144 |
48/96 |
455 x 360 x 73 |
2.0 |
|
MPIC-8 |
8 |
48/96/192 |
64/128 |
595 x 360 x 73 |
2.5 |
Note:
1) Fiber capacity is valid for standard connector types and depends on connector adaptor type, e.g. in the case DLC it is double capacity and QLC is quadruple capacity. Under the condition that in splice trays then instead of standard protection sleeves there are used smaller and thinner sleeves and there are used 2 lines in one splice holder.
Coupling panels CNPM series (see datasheet CMS_24-01_EN-CNPM) available for the common used connector adapter types in following configuration:
CNPM-XX-03 3 pcs DSC, QLC adapters
CNPM-XX-06 6 pcs ST, FC, SC, DSC, E2000, DE2000, DLC, QLC ... adapters
CNPM-XX-08 8 pcs ST, FC, SC, DLC ... adapters
Product information and specification
|
|
|
Standard Equipment: Mounting kit MK-1 contains
|
|
|

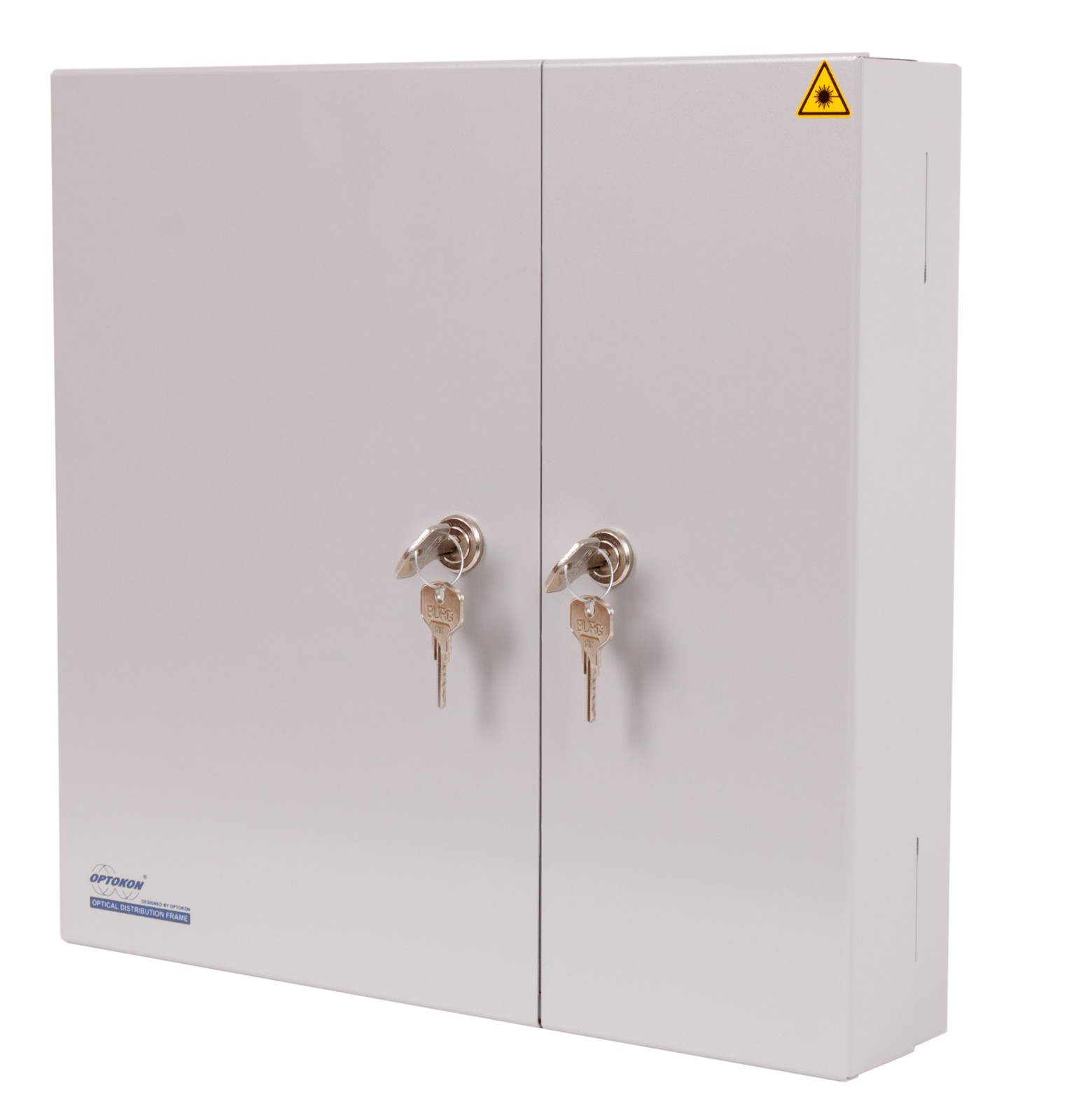

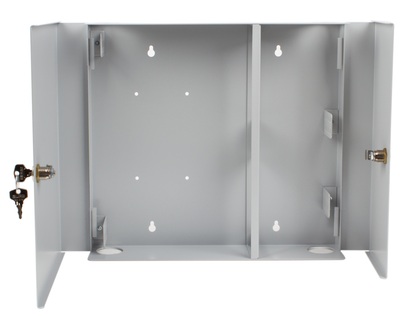

MPIC-4 – General view |

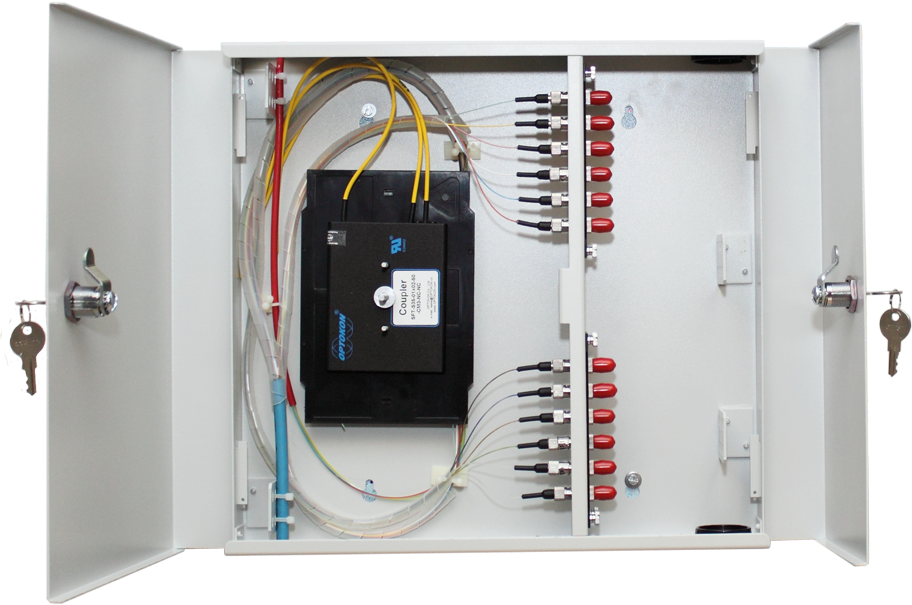

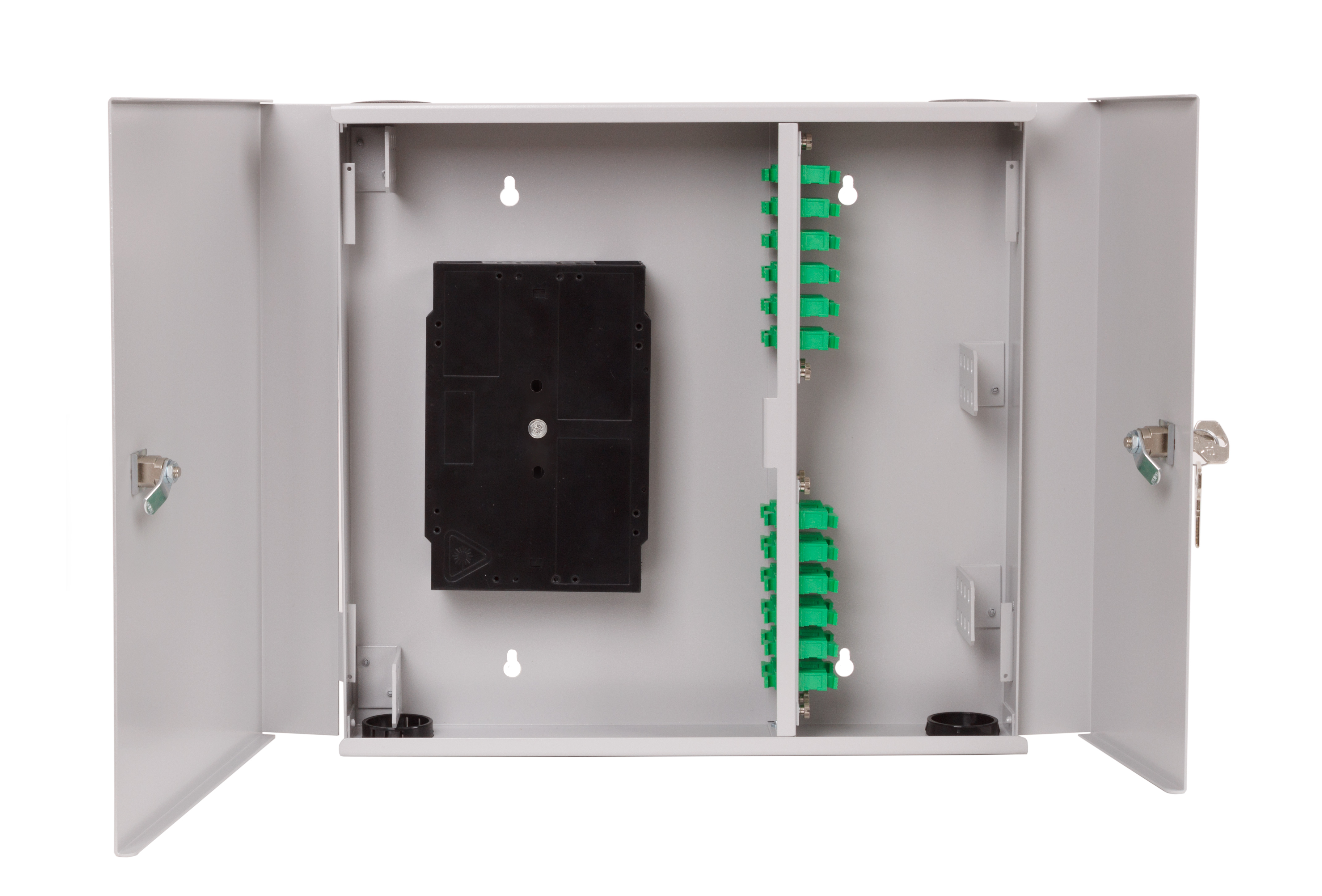

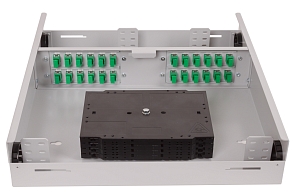

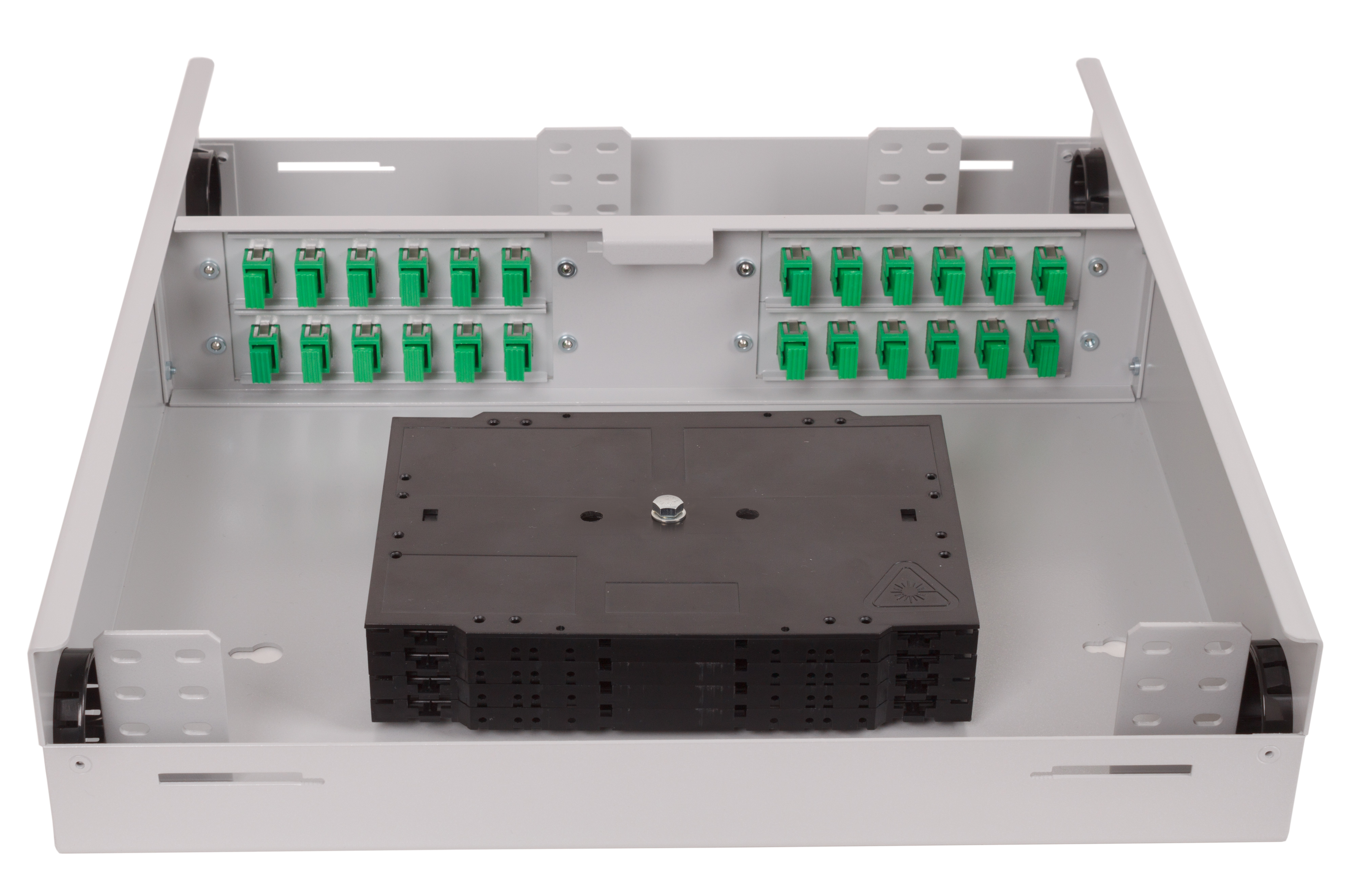

MPIC-4 – Equipped demo |
|
|
|
|
|
|
|
|

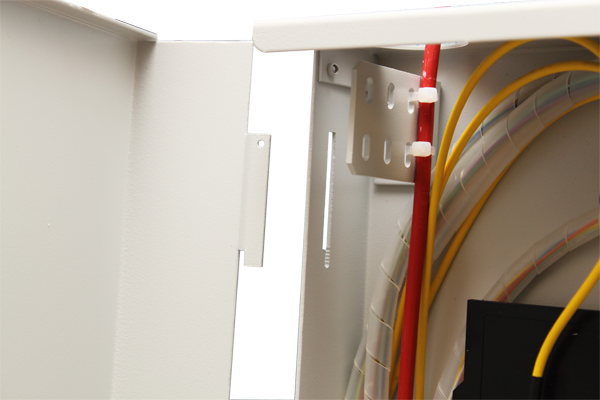

Removable door detail view |

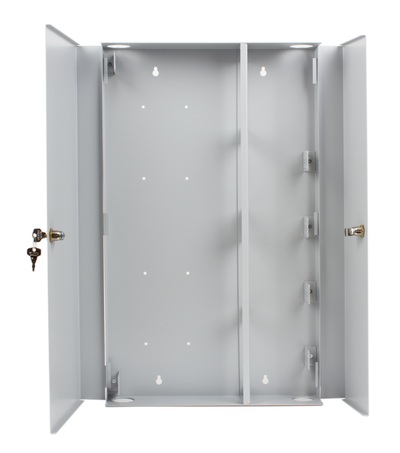

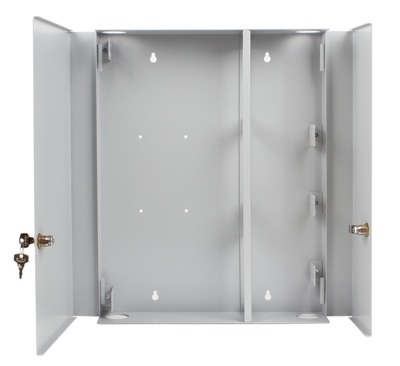

Internal layout (back view) |

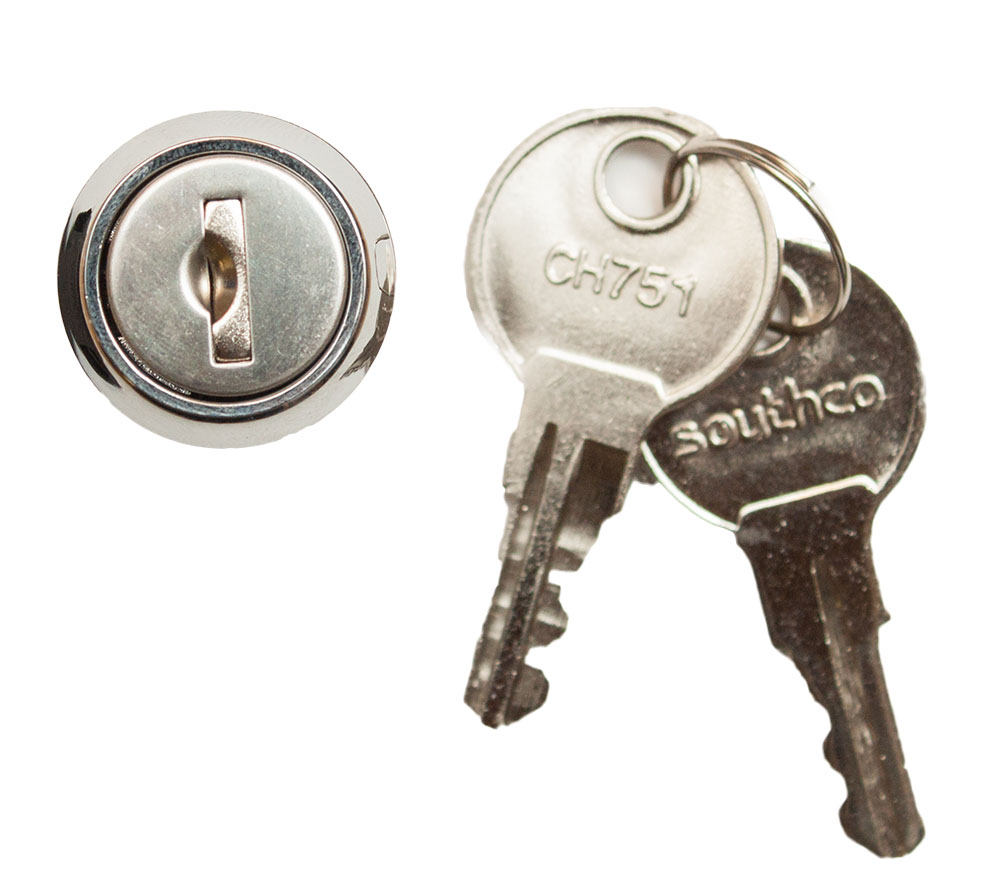

Key lock |

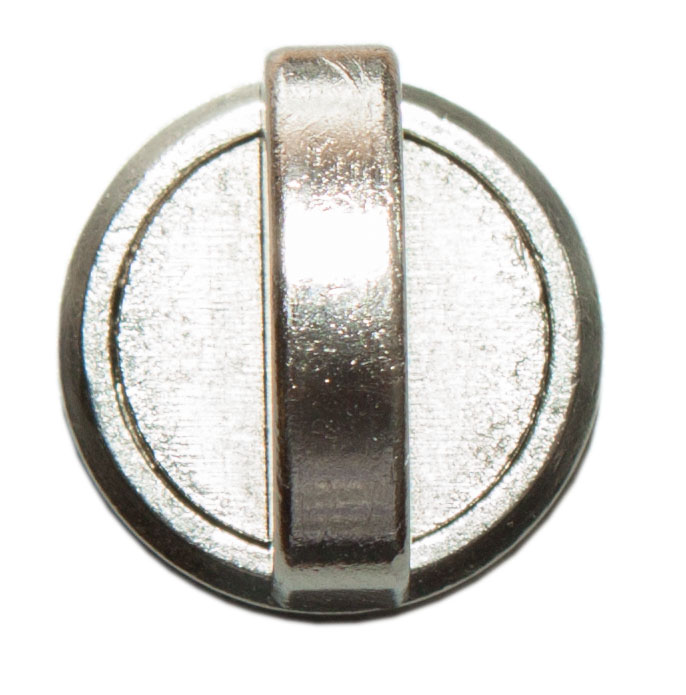

Metal latch |
For FTTH use - holder for micro tubes included
CMS_19-01_EN-MPIC
