QSFP-DD SR8 400 Gbps Rate Transceiver

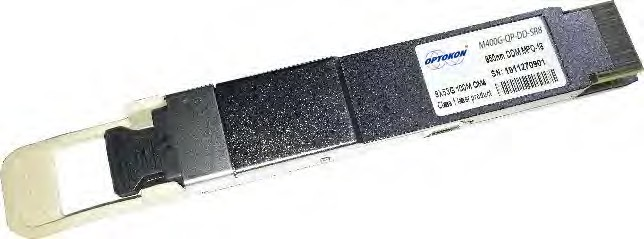

OPTOKON 400G QSFP-DD (Double Density) SR8 module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connector. It is compliant to IEEE 802.3cd protocol and PAM4 modulation format.

The 400G QSFP-DD SR8 high-speed optical transceiver find applications in cloud computing and other technologies associated with the construction of data centers.

  • Features
  • Specifications
  • Application
  • Documents
  • Support 26.5625 GBd Data rate per channel
  • Maximum link lenght of 70m links on OM3 MM fiber or 100m links on OM4 MM fiber
  • High Reliability 850nm VCSEL technology
  • Electrically hot-pluggable
  • Digital diagnostic QSFP-DD-CMIS compliant
  • Compliant with QSFP-DD MSA
  • Standard 16 lane with MPO connector
  • Case operating temperature range: 0°C to 70°C
  • Power dissipation < 10 W

Optical characteristics:

Transmitter

Parameter

Min

Typ

Max

Unit

Note

Wavelenght

840

850

860

nm



Data rate (range)



26.5625



GBd



Data rate variation

-100



100

PPm



Average launch power

-6



4

dBm

1

Average launch power off per lane





-30

dBm



Receiver

Parameter

Min

Typ

Max

Unit

Note

Average receiver power

-7.9



4

dBm



Receiver sensitivity (OMA), （BER = 2.4E- 4）





-7

dBm



Damage threshold

5





dBm

2

Receiver reflectance (max)





-12

dB



Overload receiver power (Overload)

4





dBm



------------------------------------------------------------------------------------------------

Notes:

1) Average launch power (min) is informative and not the principal indicator of signal strength. A transmitter with launch power below
    this value cannot be compliant; however, a value above this does not ensure compliance.
2) The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal having this average power
    level.

The 400G QSFP-DD SR8 high-speed optical transceiver find applications in cloud computing and other technologies associated with the construction of data centers.
