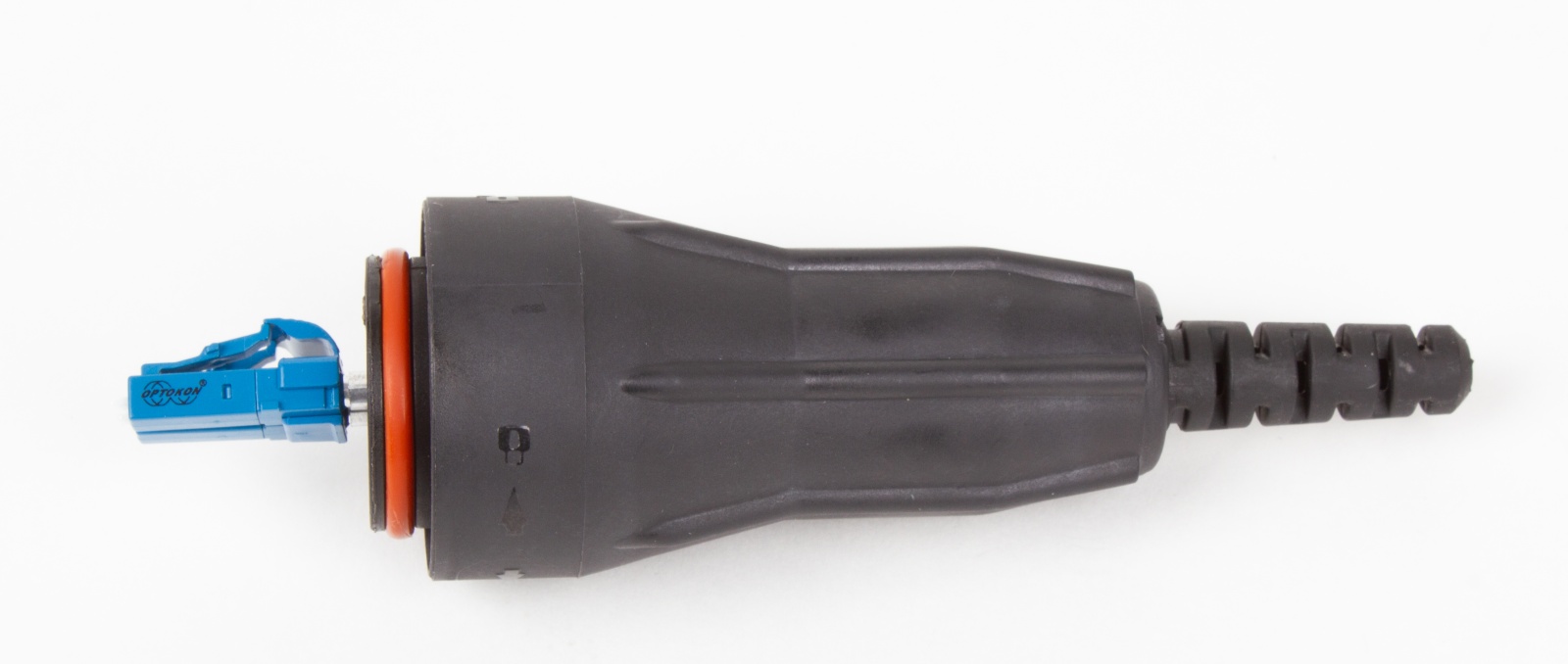

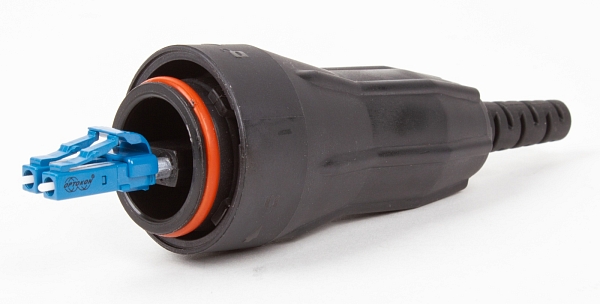

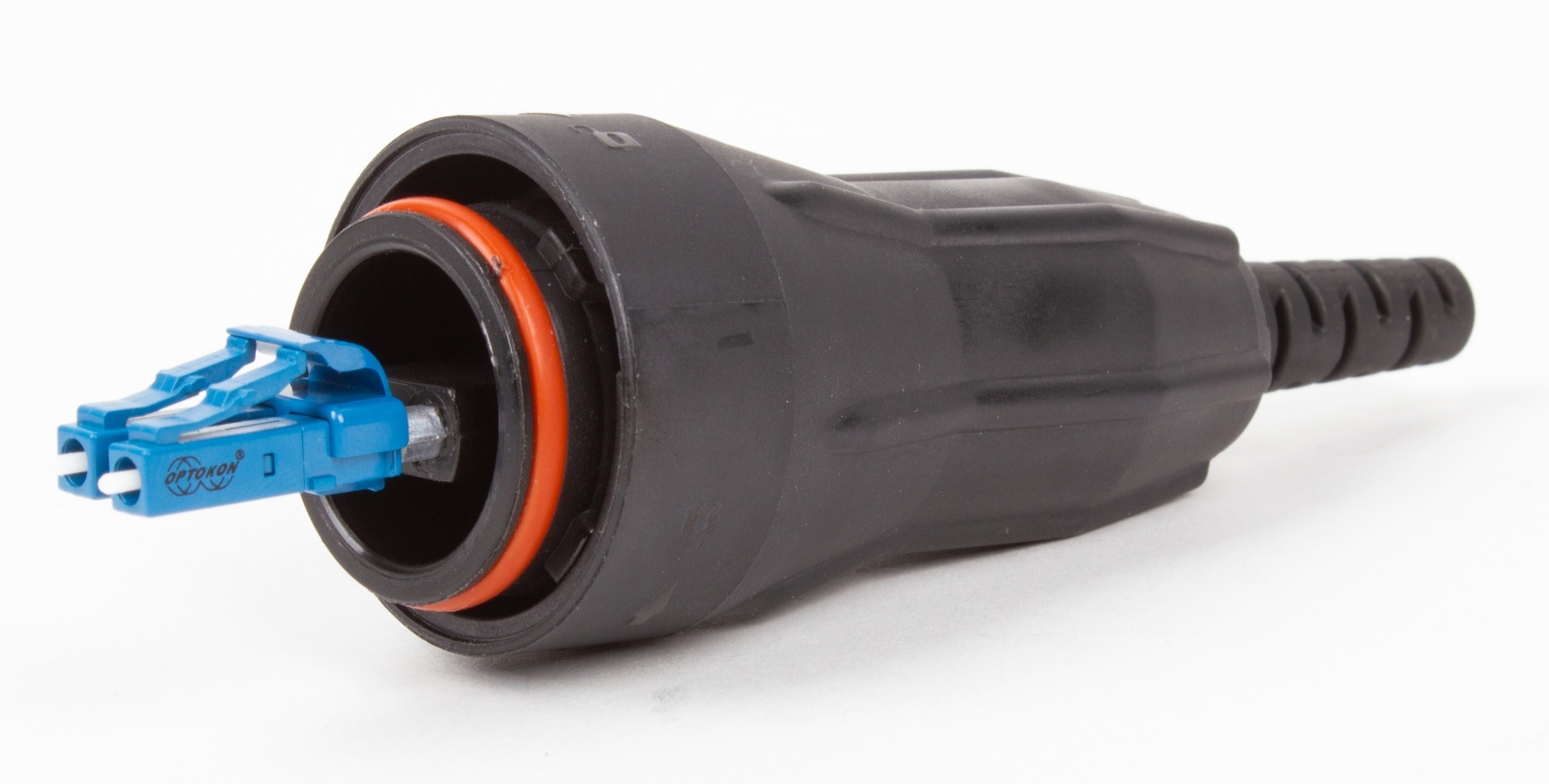

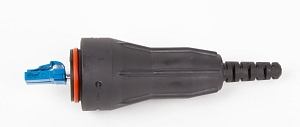

OPTOKON HA-LCD

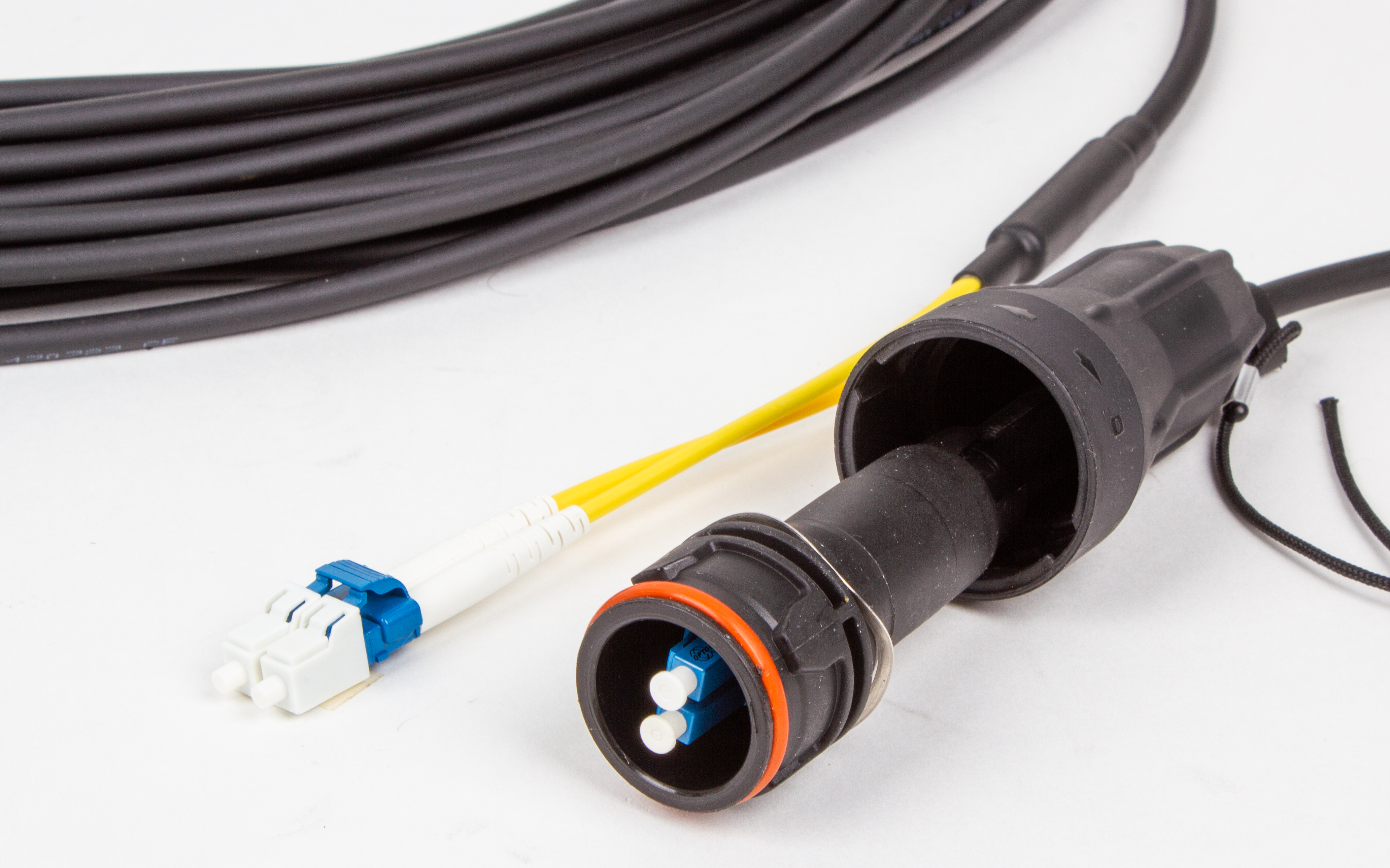

The OPTOKON introducing new effective harsh environment connector HA series, which is designed for FTTH projects and FTTA (Fiber To The Antenna). Pre connectorized cables significantly reduce cable installation time, saving money and accelerating FTTH subscriber connections, FTTA and various industrial applications

  • Features
  • Specifications
  • Application
  • Documents
  • Simple bayonet locking system
  • FullAXS-LC Compatible
  • Low Insertion Loss
  • Proven design provides a hardened connector for outside plant deployment
    • Singlemode/Multimode SC, LC duplex hardened connector
    • Connector is designed to install on Cable

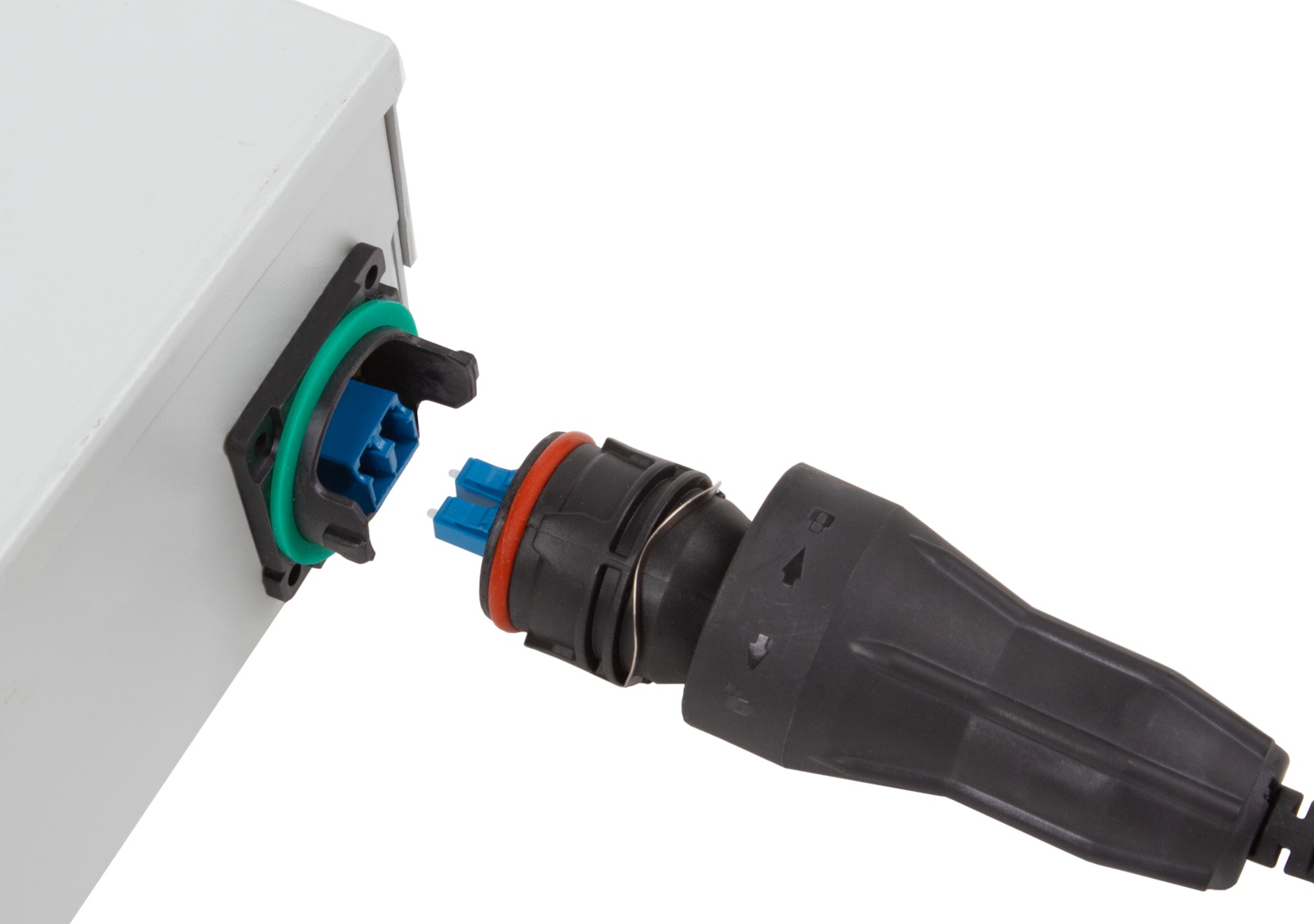

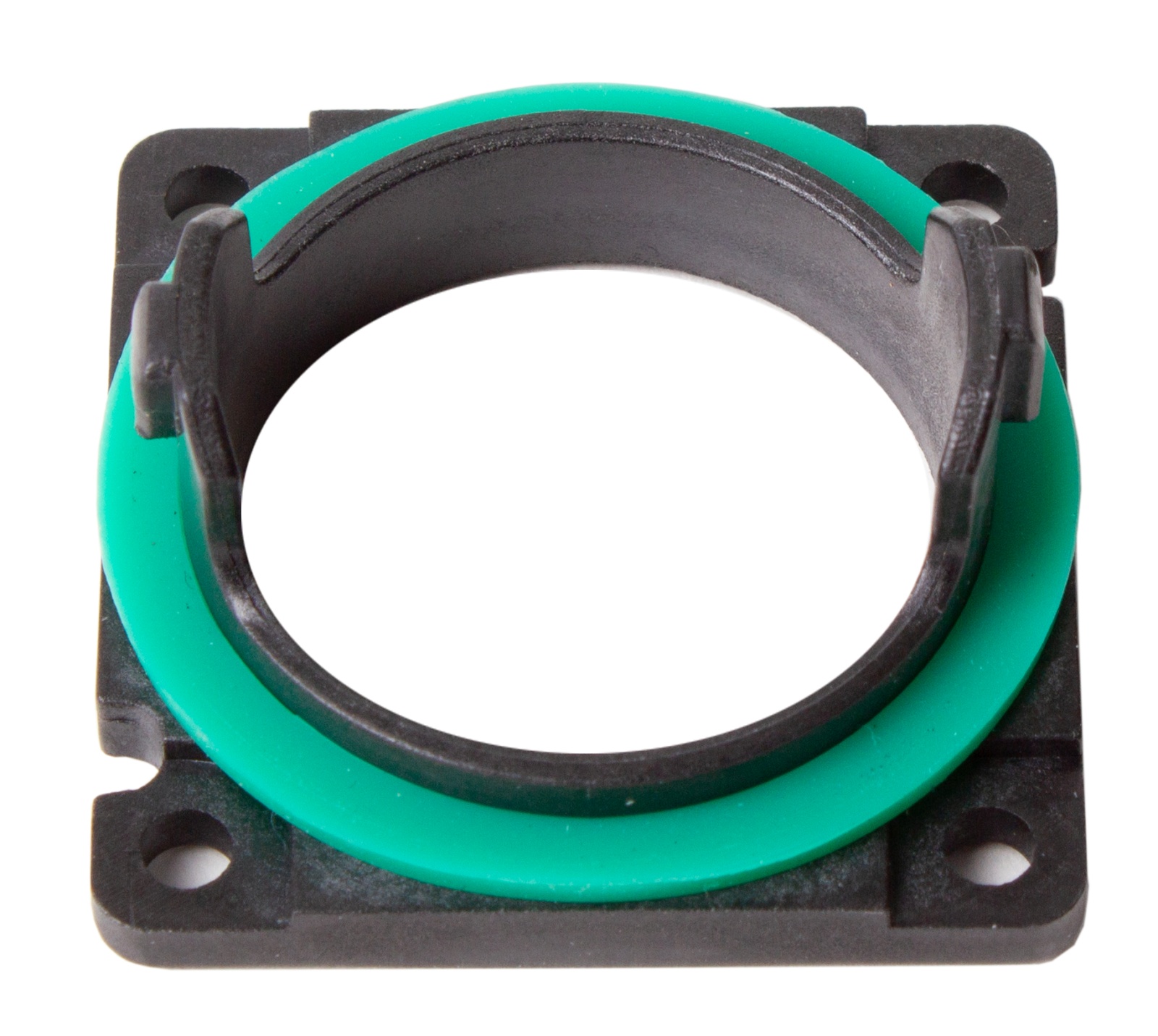

    • Environmentally-sealed connector housing permits rapid connection to external flush-mounted bulkhead adapter
  • Robust design keeps connector intact during installation
  • Fully standards-compliant product ensures the highest network reliability and durability
    • Connectors designed and third-party tested to Telcordia GR-3120 requirements
  MM UPC APC
Insertion Loss (IL) typical / Return Loss (RL) minimal
Duplex LC connector 0.15 dB / 30 dB 0.15 dB / 50 dB 0.15 dB / 60 dB
Simplex SC connector 0.15 dB / 30 dB 0.15 dB / 50 dB 0.15 dB / 60 dB

Operating temperature -40°C to +85°C
Durability min 1000 cycles
Assembly procedure glue and polish
Connection physical contact
Lock mechanism Bayonet locking system
Standards Telcordia GR-3120
Ferrule material full ceramic zirconia
Cable diameter range 4 – 6 mm
  • FTTH
  • FTTA
  • Harsh Environment Conditions
